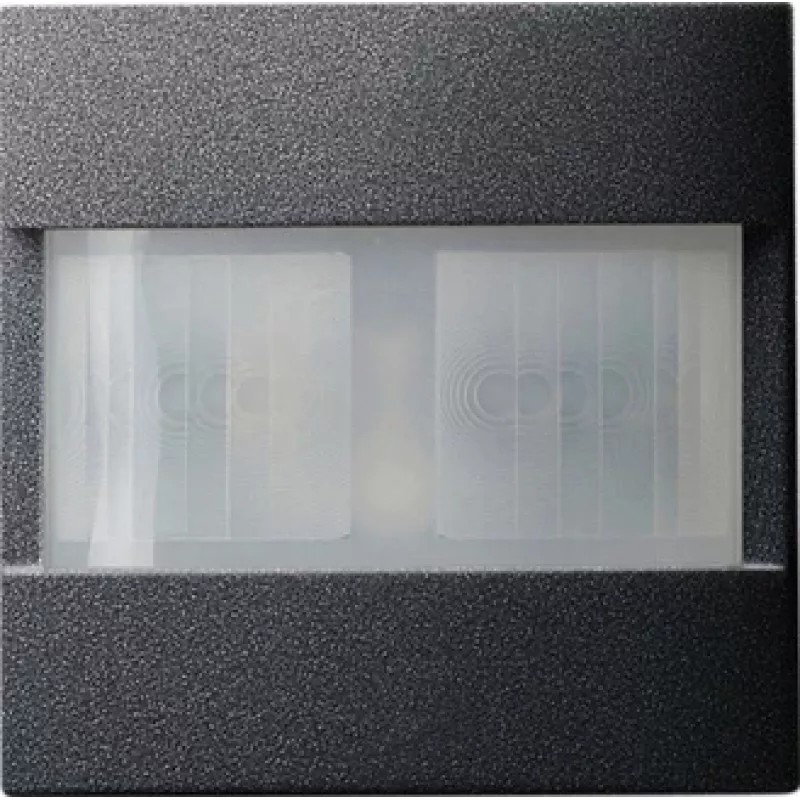

Gira S3000 nadstavec pohybového senzora 1,10 m System 55 antracitová 537328

The Gira S3000 motion detector attachment brings automatic switching to System 55 installations, with a wide 180° detection field and adjustable brightness and time settings. Unlike many PIR units, it offers a teach-in function for the brightness threshold and a presence simulation mode.

Highlights

• Passive infrared sensor with 180° detection angle
• Adjustable brightness threshold from 1 to 1000 lux
• Adjustable run-on time from 1 second to 30 minutes
• Test mode and presence simulation for added flexibility
• Designed for flush-mounted installation at 1.10 m height

In daily use

Pair this attachment with a compatible Gira S3000 insert to control lighting based on movement and ambient light. The teach-in function lets you set the current brightness as the switch-on threshold, while the short-term operation mode is useful for stairwells or corridors.

Full specifications

• Sensor type: Passive infrared (PIR)
• Mounting type: Flush-mounted
• Recommended mounting height: 1.10 m
• Detection angle: 180°
• Detection range: approx. 8 m radius
• Brightness threshold: adjustable 1–1000 lux
• Time delay: adjustable 1 s – 30 min
• Operating voltage: 230 V AC, 50/60 Hz via insert
• Max. switching capacity incandescent: 2300 W
• Max. switching capacity LED: 400 W
• Protection class: IP20
• Colour: Anthracite
• Material: Thermoplastic (PC)
• System compatibility: Gira System 55
• Operating temperature: -20 °C to +45 °C

Final note

Requires a Gira S3000 flush-mounted insert (e.g., 030000, 030100, 030200, 030300, 030400, 030500) for operation.
