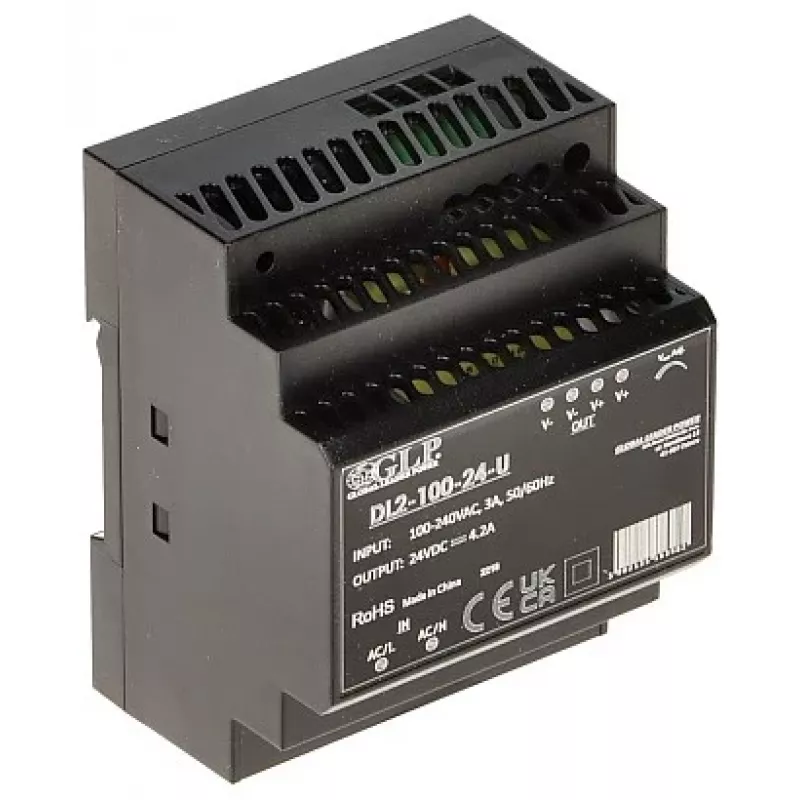

GLP spínaný napájací zdroj DL2-100-24-U – 100W 24V priemyselný napájací zdroj na DIN lištu

The GLP DL2-100-24-U stands apart from generic DIN rail power supplies through its active power factor correction and high efficiency, delivering stable 24V DC output for demanding industrial automation tasks. Part of the CliQ II series, this 100W unit combines a wide input range with robust protection features, ensuring reliable performance in control cabinets and machinery.

Highlights

• 100W output power with adjustable 24V DC (22–28V) for flexible integration
• Active PFC (>0.95) and 90.5% efficiency reduce energy waste and harmonic distortion
• Wide 85–264V AC input range with 47–63Hz frequency for global use
• Comprehensive protection: overvoltage, overcurrent, overtemperature, and short circuit
• DIN rail mounting (TS-35/7.5 or TS-35/15) for quick installation in electrical enclosures
• Convection cooling ensures silent, maintenance-free operation

In daily use

This power supply excels in industrial environments where space is limited and reliability is critical. The adjustable output voltage allows fine-tuning for specific loads, while the hold-up time of more than 10ms at 115VAC guards against brief power interruptions. Screw terminals on both input and output simplify wiring, and the operating temperature range of -25°C to +70°C supports use in harsh conditions. Compliance with UL 508, UL 60950-1, CE, and RoHS ensures safety and environmental standards are met.

Full specifications

• Brand: GLP
• Model: DL2-100-24-U
• Output power: 100W
• Output voltage: 24V DC (adjustable 22–28V)
• Output current: 4.17A
• Input voltage: 85–264V AC, single phase
• Input frequency: 47–63Hz
• Efficiency: 90.5% at 230VAC
• Power factor: >0.95 (active PFC)
• Hold-up time: >10ms at 115VAC
• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Cooling: Convection
• Protection: Overvoltage, overcurrent, overtemperature, short circuit
• Operating temperature: -25°C to +70°C
• Connectors: Screw terminals (input and output)
• Certifications: UL 508, UL 60950-1, CE, RoHS

Final note

For engineers and system integrators seeking a compact, efficient, and certified DIN rail power supply, the GLP DL2-100-24-U offers the performance and durability needed for modern automation systems.
