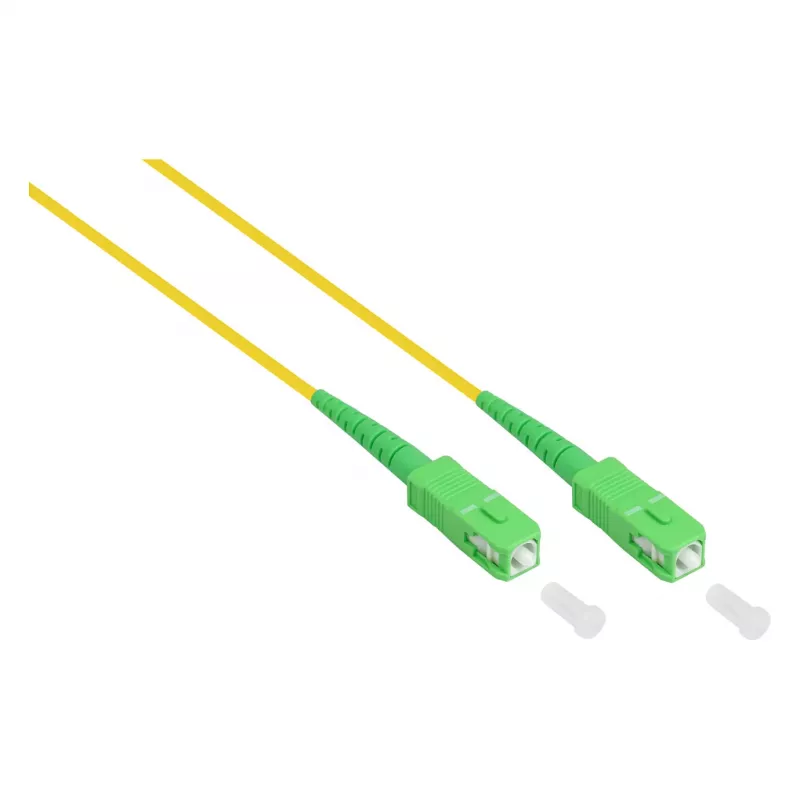

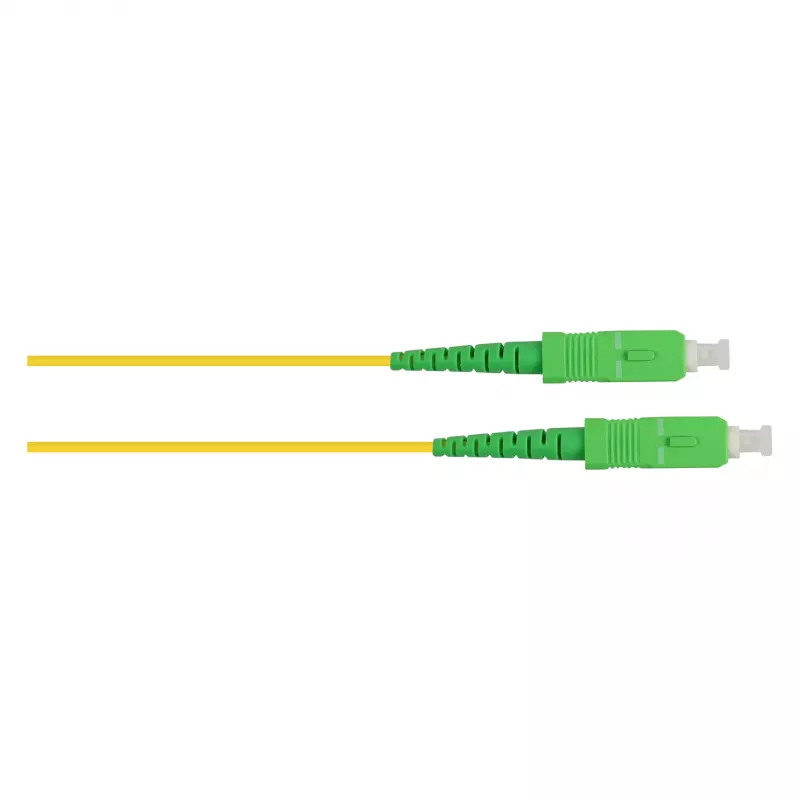

Good Connections OS2 Simplex optický patch kábel LC/SC SM 9/125 µm 5m žltý

The Good Connections OS2 Simplex Fiber Optic Patch Cable LC/SC SM 9/125 µm 5m is a high-performance single-mode fiber optic cable designed for reliable data transmission in professional network environments. With LC to SC connectors and OS2 classification, this patch cable ensures low insertion loss and high return loss, making it ideal for demanding applications.

Advantages

This cable offers excellent signal integrity with insertion loss ≤0.3 dB and return loss ≥50 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, reducing toxic fumes. Its simplex design is perfect for point-to-point connections, and the yellow jacket color indicates single-mode fiber for easy identification.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• FTTx (Fiber to the x) installations
• Local Area Networks (LAN) requiring high bandwidth
• Industrial and enterprise networking

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode (SM)
• Fiber Class: OS2
• Core/Cladding Diameter: 9/125 µm
• Connector A: LC
• Connector B: SC
• Connector Polishing: UPC
• Cable Construction: Simplex
• Cable Length: 5 m
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Operating Wavelengths: 1310 nm, 1550 nm
• Ferrule Material: Ceramic
• Minimum Bend Radius: 10 mm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with compatible single-mode SFP modules and ensure proper handling to avoid contamination of connector end-faces. This cable is suitable for indoor installations where low smoke and halogen-free properties are required.
