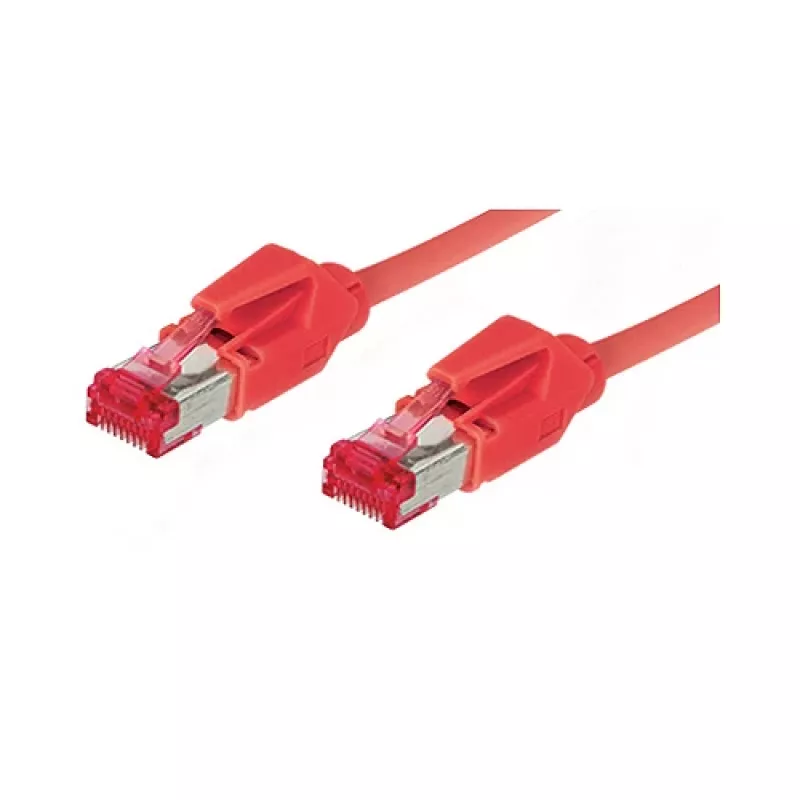

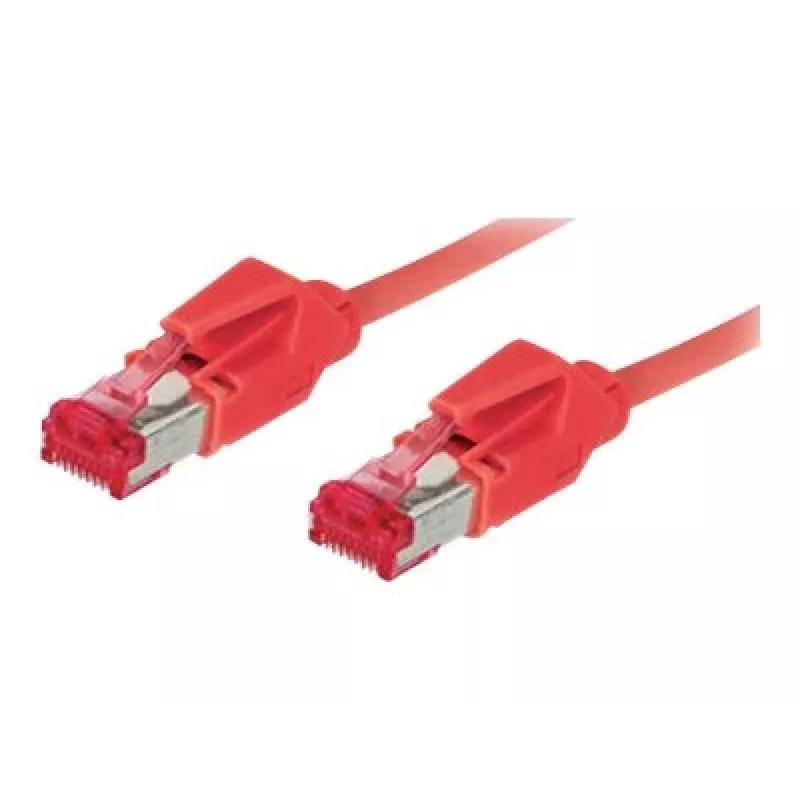

GoodConnections Cat.6 S/FTP PiMF bezhalogénový patch kábel, Hirose konektor, červený, 1m 8066-101R

600 MHz of bandwidth in a 1-meter patch cable—this GoodConnections Cat.6 S/FTP PiMF link is built for high-density, high-speed networking where interference is the enemy. The S/FTP shielding combines an overall braided screen with foil-wrapped individual pairs (PiMF), while the halogen-free LSZH jacket keeps your environment safe in case of fire.

Overview

The GoodConnections 8066-101R is a premium Cat.6 patch cable engineered for reliable Gigabit Ethernet and 10 Gigabit Ethernet up to 55 meters. Its S/FTP construction—screened/foiled twisted pair with PiMF (Pair in Metal Foil)—delivers superior protection against EMI and crosstalk, ensuring error-free data transmission in server rooms, data centers, and industrial settings. The cable is terminated with gold-plated Hirose RJ45 connectors, known for their precision and durability, and features a snagless boot to protect the locking tab during installation and removal.

What stands out

• 600 MHz bandwidth for high-speed data transfer
• S/FTP shielding with PiMF for maximum noise immunity
• Halogen-free LSZH jacket for low smoke and toxicity
• Gold-plated Hirose connectors for reliable connections
• Stranded copper conductors (AWG 27/7) for flexibility
• Snagless boot design to prevent accidental disconnects

Technical details

• Cable Type: Patch Cable
• Category: Cat.6 (Enhanced)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Inner Shielding: PiMF (Pair in Metal Foil)
• Bandwidth: 600 MHz
• Length: 1 meter
• Color: Red
• Jacket Material: Halogen-free (LSZH)
• Connector Type: RJ45 Male (both ends)
• Connector Brand: Hirose
• Connector Plating: Gold
• Conductor Material: Copper
• Conductor Gauge: AWG 27/7 (Stranded)
• Wiring Standard: TIA/EIA 568B
• Flammability Rating: LSZH (Low Smoke Zero Halogen)
• Application: Gigabit Ethernet, 10 Gigabit Ethernet (up to 55m)
• Compatibility: Backward compatible with Cat5e, Cat5
• Cable Construction: Stranded
• Boot Type: Snagless

Our verdict

A professional-grade patch cable that delivers exceptional shielding and safety. The Hirose connectors and halogen-free jacket make it ideal for mission-critical installations where performance and compliance are paramount.
