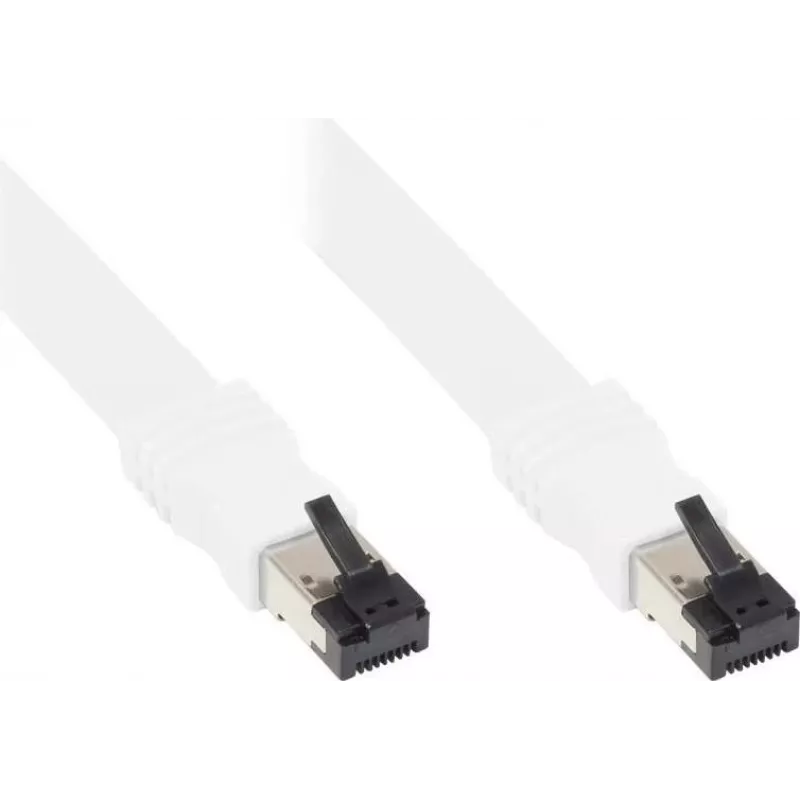

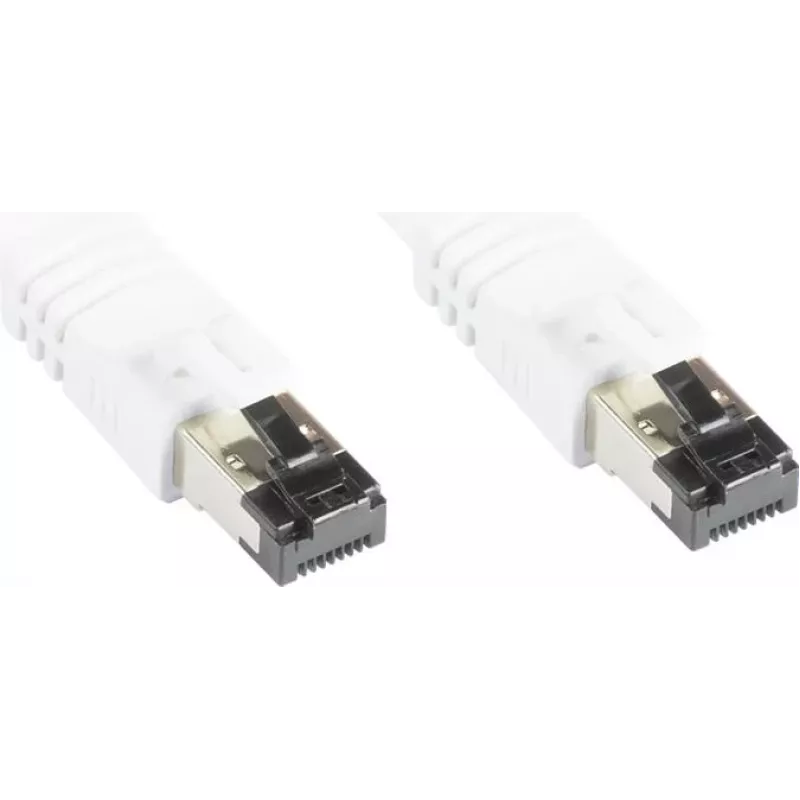

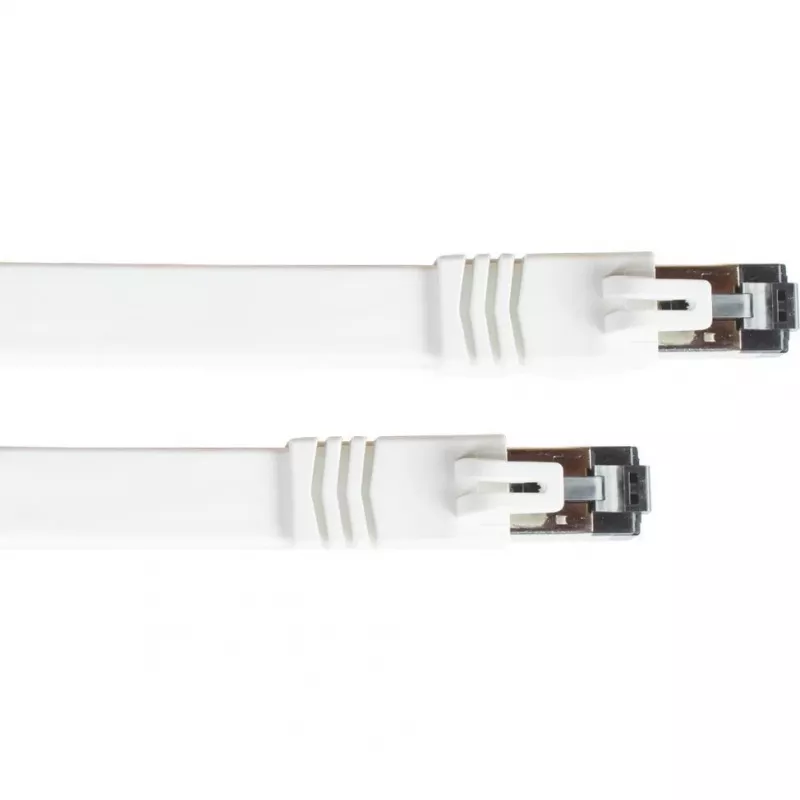

GoodConnections Cat. 8.1 plochý patch kábel U/FTP PiMF LSZH biely 0,5m 40Gbps 2000MHz 8080-F005W

High-speed Cat. 8.1 flat patch cable engineered for 40 Gigabit Ethernet, delivering up to 2000 MHz bandwidth in a sleek, low-profile design. Ideal for data centers, server rooms, and high-performance workstations where space is tight and performance is non-negotiable.

Advantages

This cable combines exceptional speed with a flat, flexible form factor that routes easily under carpets, along baseboards, or through tight cable management channels. The U/FTP construction with individually foil-shielded pairs (PiMF) virtually eliminates crosstalk and EMI, ensuring reliable 40GBASE-T transmission. The LSZH jacket emits low smoke and zero halogens in case of fire, making it safe for enclosed spaces. Backward compatible with Cat.6a, Cat.6, Cat.5e, and Cat.5 networks.

Suitable for

• 40GBASE-T Ethernet connections up to 30 m (Cat.8.1)
• High-density data center patching and server links
• Workstations requiring maximum throughput with minimal cable bulk
• PoE applications (PoE, PoE+, 4PPoE) for powering devices
• Environments where LSZH cabling is mandated (public buildings, transport)

Key specifications

• Category: Cat. 8.1 (Class I)
• Shielding: U/FTP (PiMF – pairs in metal foil)
• Bandwidth: 2000 MHz
• Data rate: 40 Gbit/s
• Length: 0.5 m
• Colour: White
• Connectors: RJ45 male to RJ45 male
• Conductor: Copper, 4 twisted pairs
• Jacket: LSZH (halogen-free)
• Standards: ISO/IEC 11801, TIA/EIA-568-C.2-1

Recommendations

For maximum performance, pair with Cat.8.1-compatible RJ45 connectors and patch panels. Avoid sharp bends; maintain a minimum bend radius of 4x cable diameter. Test with a cable certifier to verify 40GBASE-T compliance after installation.
