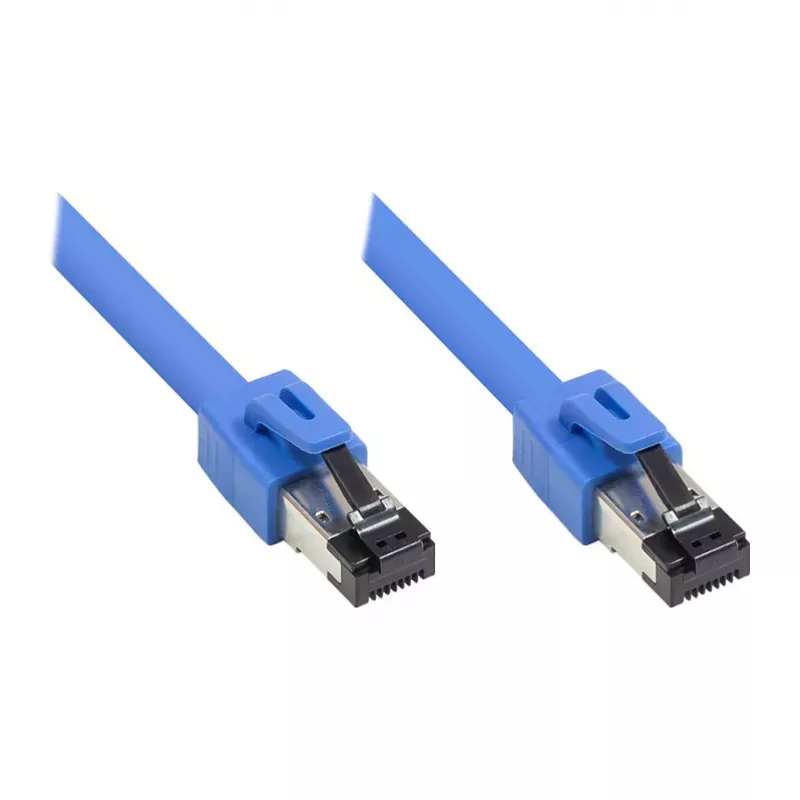

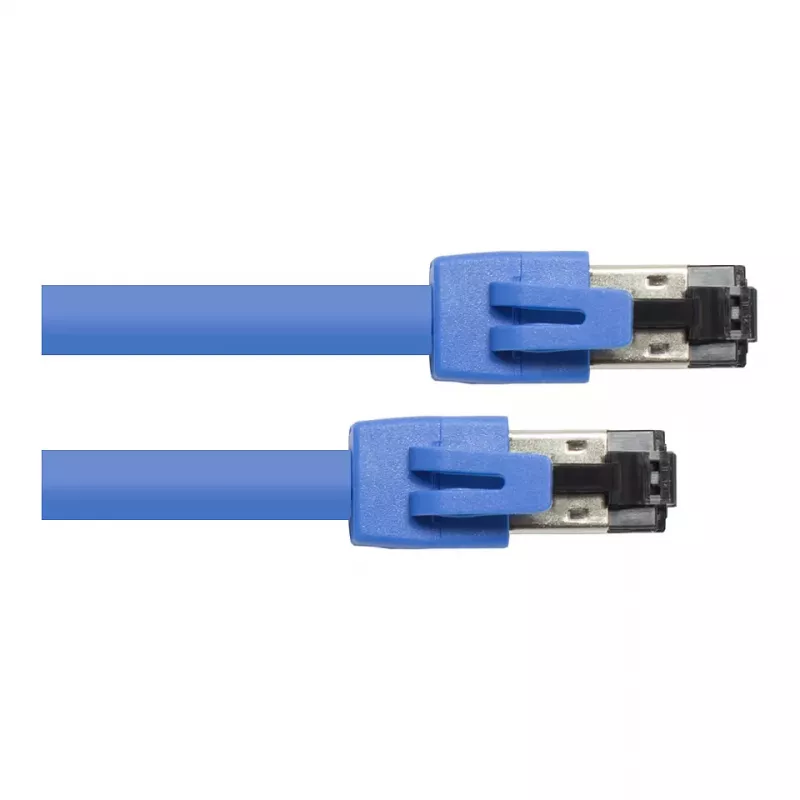

GoodConnections RNS® patch kábel Cat. 8.1, S/FTP, PiMF, LSZH, 2000MHz, 40Gbit/s, modrý, 0,5m

The GoodConnections RNS® Patch Cable Cat. 8.1 is a high-performance network cable designed for demanding data center and server room environments. With a bandwidth of 2000 MHz and data transfer rate of 40 Gbit/s, it supports the latest 40GBase-T applications. The S/FTP shielding (PiMF) provides excellent protection against electromagnetic interference, while the LSZH jacket ensures safety in enclosed spaces.

Advantages

This cable offers superior signal integrity and minimal crosstalk thanks to its pairs in metal foil (PiMF) construction. The gold-plated RJ45 connectors (50µ) ensure reliable, corrosion-free connections. It is halogen-free and flame retardant, making it ideal for use in areas with strict fire safety requirements. Additionally, it supports PoE, PoE+, and 4PPoE (IEEE 802.3bt Type 4) for power over Ethernet applications.

Suitable for

• Data centers and server rooms requiring high-speed 40G connections
• Enterprise networks needing reliable, high-bandwidth cabling
• Industrial environments where EMI protection is critical
• Installations where low smoke zero halogen materials are mandated

Key specifications

• Cable Type: Patch Cable
• Category: Cat. 8.1 (Class I)
• Shielding: S/FTP (Screened/Foiled Twisted Pair) with PiMF
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Bandwidth: 2000 MHz
• Data Transfer Rate: 40 Gbit/s
• Length: 0.5 m
• Colour: Blue
• Connector Type: RJ45 (8P8C) with gold-plated contacts (50µ)
• Conductor Material: 100% Copper, AWG 26/7 stranded
• Wiring Standard: TIA/EIA 568B
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3bt Type 4)
• Halogen-free: Yes
• Flame Retardant: Yes

Recommendations

For optimal performance, pair this cable with compatible 40GBase-T network equipment. Ensure proper cable management to maintain signal integrity. This cable is an excellent choice for upgrading existing Cat.6a or Cat.7 installations to support higher data rates.
