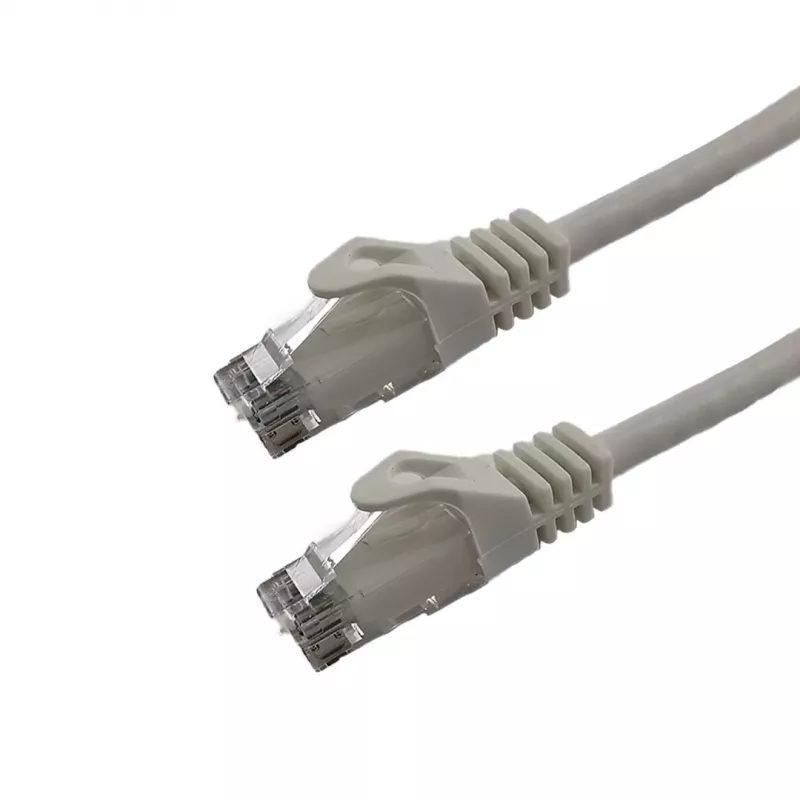

Grafenthal CAT6 U/UTP LSZH Ethernet patch kábel 0,20 m biela

The Grafenthal CAT6 U/UTP LSZH Ethernet Patch Cable is a high-performance network cable designed for reliable data transmission in professional environments. With a length of 0.20 meters, it is ideal for short-distance connections between network devices in server racks or desktop setups. The cable features pure copper conductors and LSZH (Low Smoke Zero Halogen) jacket, ensuring safety and durability.

Advantages

This patch cable offers excellent signal integrity and minimal crosstalk thanks to its U/UTP design and 26 AWG stranded conductors. The gold-plated RJ45 connectors provide corrosion resistance and optimal conductivity. The LSZH jacket reduces toxic smoke emissions in case of fire, making it suitable for public and enclosed spaces.

Suitable for

• Connecting computers, switches, routers, and patch panels in LAN networks
• Data centers and server rooms requiring high-density cabling
• Applications demanding Gigabit Ethernet performance (up to 1 Gbps)
• Environments with strict fire safety regulations (LSZH rated)

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.20 m (20 cm)
• Color: White
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Conductor Gauge: 26 AWG
• Wiring Standard: TIA/EIA-568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gigabit Ethernet (1000BASE-T)
• Cable Construction: Stranded
• Number of Pairs: 4 Twisted Pairs
• Outer Diameter: Approx. 6.0 mm
• Certifications: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6 compatible devices and avoid sharp bends or kinks during installation. The LSZH jacket is ideal for use in schools, hospitals, and offices where safety is a priority.
