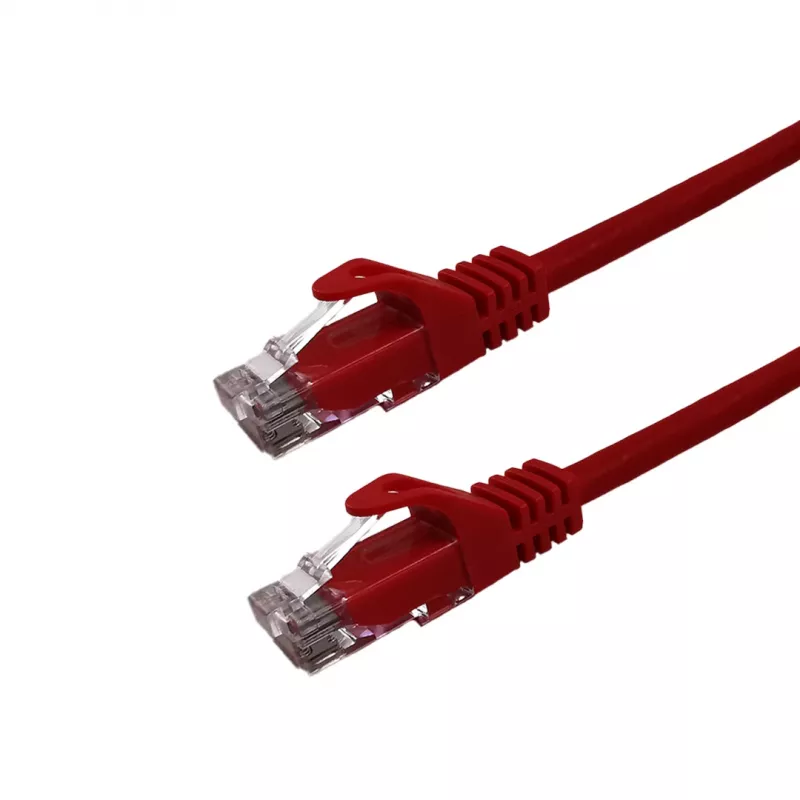

Grafenthal CAT6A U/UTP LSZH patch kábel 5,00m červený

The Grafenthal CAT6A U/UTP LSZH Patch Cable 5.00m Red is a high-performance network cable designed for reliable 10 Gigabit Ethernet connectivity. Manufactured with pure copper conductors and a low smoke zero halogen (LSZH) jacket, this cable ensures safety and durability in data centers, server rooms, and office environments. The RJ45 male to RJ45 male connectors feature gold-plated contacts for optimal signal transfer and corrosion resistance.

Advantages

This patch cable delivers exceptional bandwidth of 500 MHz, supporting high-speed data transmission up to 10 Gbps. The U/UTP (unshielded twisted pair) design reduces crosstalk and interference, while the stranded conductor construction provides flexibility for easy routing. The LSZH jacket minimizes toxic smoke and corrosive gases in case of fire, making it ideal for public and enclosed spaces.

Suitable for

• Network connectivity in data centers and server rooms
• 10GBASE-T Ethernet networks
• Power over Ethernet (PoE) applications
• Office and home networking

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6A
• Shielding Type: U/UTP
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH
• Length: 5.0 m
• Colour: Red
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Conductor Gauge: 26 AWG
• Number of Conductors: 8 (4 Twisted Pairs)
• Wiring Standard: TIA/EIA-568B
• Connector Plating: Gold-plated contacts
• Cable Construction: Stranded
• Compliance: RoHS, CE, TIA/EIA-568-C.2

Recommendations

For optimal performance, pair this cable with CAT6A compatible switches and network interfaces. Ensure proper cable management to maintain signal integrity.
