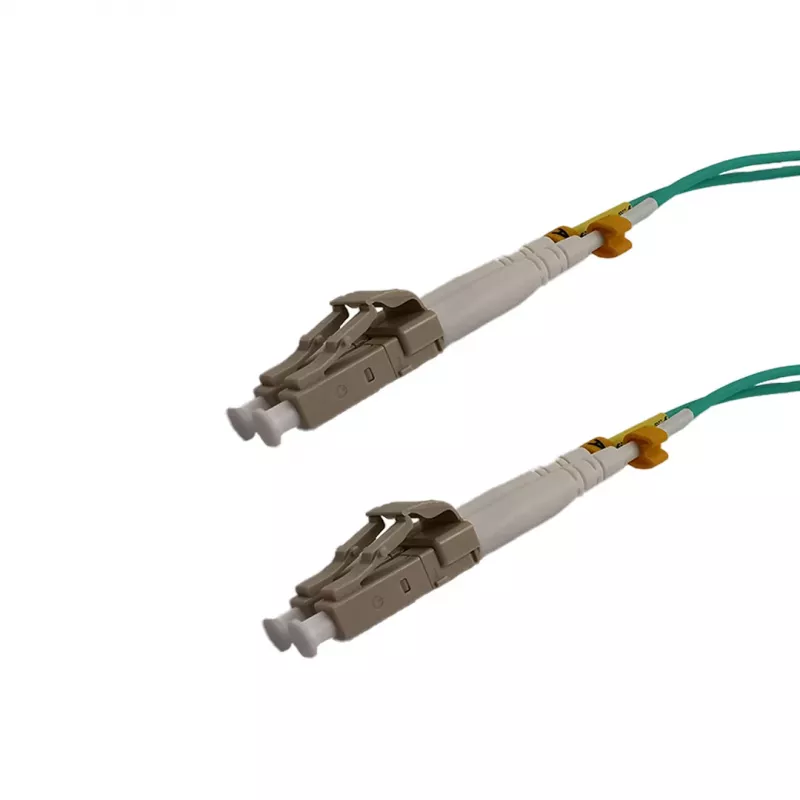

Grafenthal optický kábel OM3 LC/UPC-LC/UPC LSZH 2,00m Aqua Blue

The Grafenthal Optical Fibre Cable OM3 is a high-performance duplex multimode patch cable designed for reliable 10 Gigabit Ethernet (10GbE) connections. Featuring LC/UPC connectors on both ends, a robust LSZH jacket, and a length of 2.00 metres, this cable ensures low insertion loss and high return loss for optimal signal integrity in data centres, enterprise networks, and telecommunications environments.

Advantages

This OM3 fibre cable delivers exceptional bandwidth of up to 1500 MHz·km at 850 nm, supporting high-speed data transmission over short to medium distances. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic and corrosive emissions in case of fire, making it ideal for confined spaces. The duplex configuration with two fibres allows simultaneous bidirectional communication, while the UPC polish minimises back reflection for clearer signals.

Suitable for

• 10 Gigabit Ethernet (10GbE) networks
• Data centre interconnects
• Server and storage area networks (SAN)
• Telecommunications and broadband applications
• High-speed backbone cabling

Key specifications

• Fibre Mode: Multimode OM3
• Connector Type: LC/UPC to LC/UPC
• Fibre Count: 2 (Duplex)
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Aqua Blue
• Cable Length: 2.00 m
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 50 dB
• Operating Temperature: -20°C to +70°C
• Standards: RoHS, CE

Recommendations

For optimal performance, pair this cable with OM3-compatible transceivers and patch panels. Ensure proper handling and storage to maintain low insertion loss. Ideal for structured cabling systems requiring high bandwidth and fire safety compliance.
