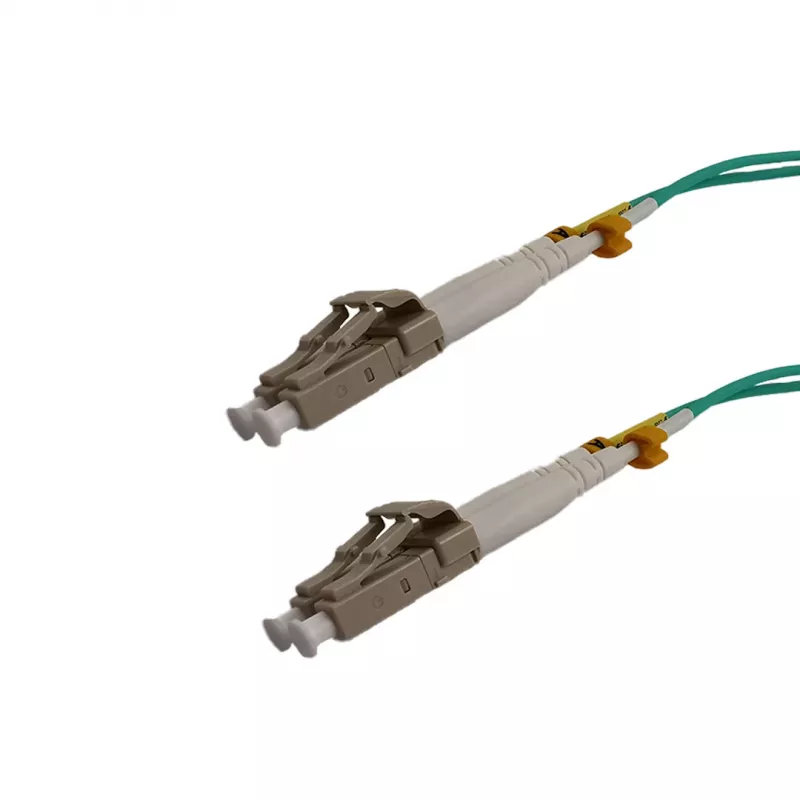

Grafenthal optický kábel OM3 LC/UPC-LC/UPC LSZH 20m Aqua Blue

The Grafenthal Optical Fibre Cable OM3 LC/UPC-LC/UPC LSZH 20m Aqua Blue is a high-performance duplex multimode patch cable designed for reliable high-speed data transmission in data centers, enterprise networks, and telecommunications environments. With OM3 fibre, it supports 10 Gigabit Ethernet up to 300 meters and is backward compatible with lower-speed networks.

Advantages

This cable offers low insertion loss (<0.3 dB) and high return loss (>50 dB), ensuring excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket reduces toxic emissions in case of fire, making it safe for use in confined spaces. The aqua blue colour enables easy identification among other cables.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Telecommunications rooms
• High-speed server and switch connections
• 10/40/100 Gigabit Ethernet applications

Key specifications

• Cable Type: Optical Fibre Patch Cable
• Fibre Type: OM3 Multimode
• Connector A: LC/UPC
• Connector B: LC/UPC
• Cable Length: 20 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Fibre Count: Duplex
• Core/Cladding Diameter: 50/125 µm
• Wavelengths Supported: 850nm, 1300nm
• Bandwidth (850nm): 1500 MHz.km (EMB)
• Bandwidth (1300nm): 500 MHz.km (EMB)
• Maximum Data Rate (850nm): 10 Gigabit Ethernet (up to 300m), 40 Gigabit Ethernet (up to 100m), 100 Gigabit Ethernet (up to 70m)
• Insertion Loss: < 0.3 dB
• Return Loss: > 50 dB
• Cable Colour: Aqua Blue
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-density patching areas where space and safety are concerns.
