Grafenthal optický kábel OM4 LC/UPC-LC/UPC LSZH 15,00m fialový

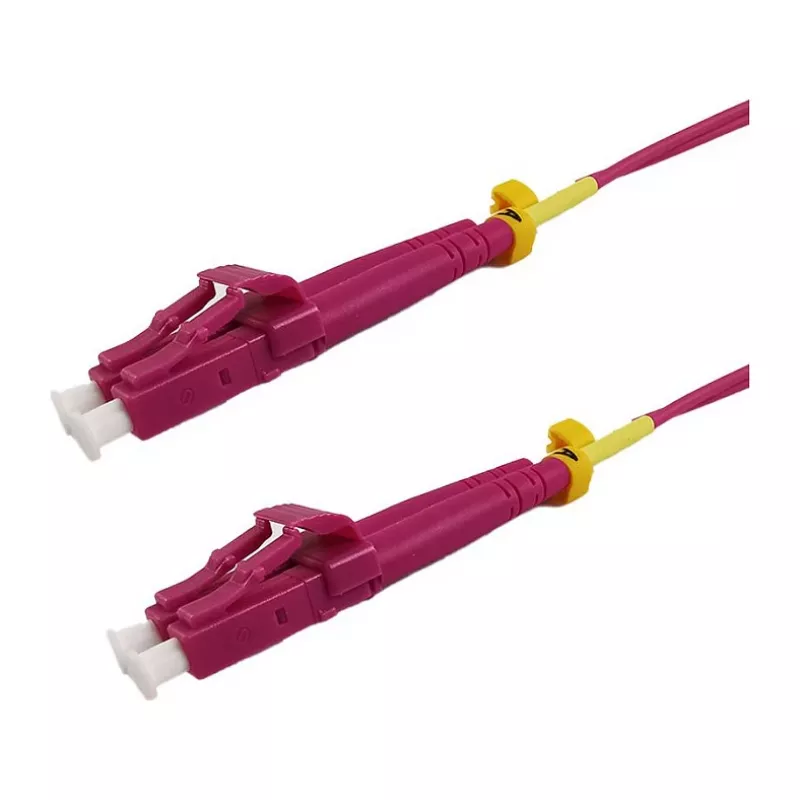

The Grafenthal Optical Fibre Cable OM4 is a high-performance multimode patch cable designed for reliable data transmission in demanding network environments. With LC/UPC connectors on both ends, a duplex fibre count, and a length of 15.00 metres, this cable ensures low insertion loss and high return loss for optimal signal integrity. The violet LSZH (Low Smoke Zero Halogen) jacket provides safety and durability, making it suitable for use in data centres, LANs, SANs, and FTTx applications.

Advantages

This OM4 fibre cable offers exceptional bandwidth capabilities, supporting up to 4700 MHz-km at 850nm and 500 MHz-km at 1300nm. The LSZH jacket minimises toxic smoke and corrosive gases in case of fire, enhancing safety in confined spaces. The UPC polish ensures low insertion loss (≤0.25 dB typical) and high return loss (≥30 dB typical), guaranteeing efficient and reliable connections.

Suitable for

• Data Centre cabling infrastructure
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fibre-to-the-x (FTTx) deployments
• High-speed backbone connections

Key specifications

• Fibre Mode: Multimode
• Fibre Class: OM4
• Connector Type: LC/UPC to LC/UPC
• Fibre Count: Duplex
• Cable Length: 15.00 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Violet
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Maximum Bandwidth (850nm): 4700 MHz-km
• Maximum Bandwidth (1300nm): 500 MHz-km
• Insertion Loss (Typical): ≤ 0.25 dB
• Return Loss (Typical): ≥ 30 dB
• Polish Type: UPC
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE
• Minimum Bend Radius: 30 mm

Recommendations

For optimal performance, ensure connectors are clean before installation and avoid exceeding the minimum bend radius. This cable is ideal for high-bandwidth applications requiring reliable, low-loss connections.
