Grafenthal optický kábel OM4 LC/UPC-LC/UPC LSZH 4,00m fialový

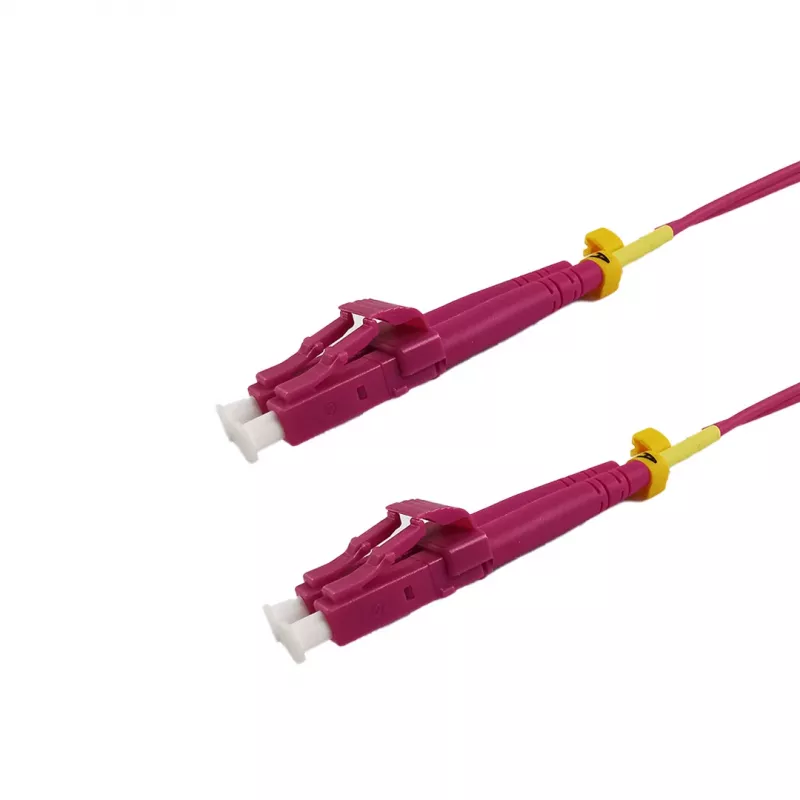

The Grafenthal Optical Fibre Cable OM4 is a high-performance multimode patch cable designed for reliable data transmission in demanding network environments. With LC/UPC connectors on both ends and a length of 4.00 meters, this cable ensures low insertion loss and high return loss, making it ideal for high-speed applications. The violet LSZH (Low Smoke Zero Halogen) jacket provides safety and durability, suitable for use in confined spaces.

Advantages

This OM4 fibre optic cable offers superior bandwidth and performance for 10 Gbps and beyond, supporting wavelengths of 850 nm and 1300 nm. The duplex design with two fibres enables bidirectional communication. The LSZH jacket reduces toxic fumes in case of fire, enhancing safety in data centers and offices.

Suitable for

• Data center interconnects
• High-speed local area networks (LANs)
• Storage area networks (SANs)
• Telecommunications rooms
• Any application requiring reliable multimode fibre connectivity

Key specifications

• Fibre Mode: Multimode
• Fibre Grade: OM4
• Connector Type: LC/UPC to LC/UPC
• Connector Polish: UPC (Ultra Physical Contact)
• Cable Length: 4.0 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Colour: Violet
• Fibre Count: Duplex (2 Fibres)
• Core/Cladding Diameter: 50/125 µm
• Insertion Loss (Typical): ≤ 0.25 dB
• Return Loss (Typical): ≥ 50 dB
• Operating Wavelengths: 850 nm, 1300 nm
• Bandwidth (850nm): 4700 MHz-km
• Bandwidth (1300nm): 500 MHz-km
• Jacket Diameter: 2.0 mm
• Operating Temperature: -20°C to +70°C
• Standards Compliance: TIA/EIA-568-C.3, IEC 60793-2-10 Type A1a.3, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/UPC interfaces. Store in a clean, dry environment.
