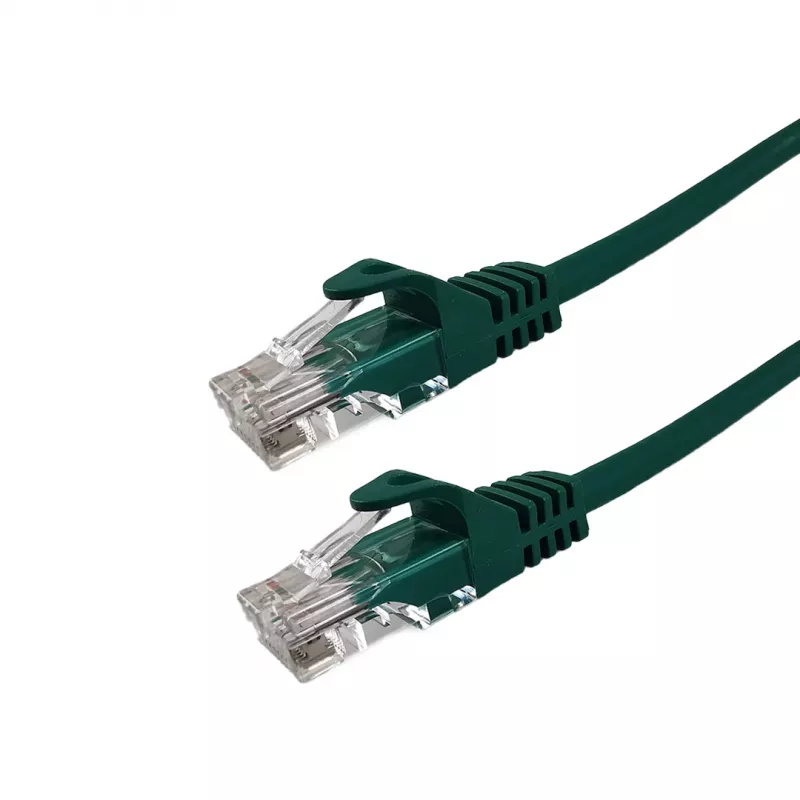

Grafenthal Patchkabel CAT6 U/UTP CU LSZH 5,00m zelená

The Grafenthal Patch Cable CAT6 U/UTP CU LSZH 5.00m Green is a high-performance Ethernet cable designed for reliable network connections. Manufactured with 100% copper conductors and LSZH (Low Smoke Zero Halogen) jacket, it ensures safety and durability in various environments. This unshielded twisted pair cable supports data transfer rates up to 1 Gbps and operates at a frequency bandwidth of 250 MHz, making it ideal for Gigabit Ethernet applications. The snagless RJ45 connectors protect the locking tabs during installation, and the cable is wired to TIA/EIA-568B standard. Suitable for LAN, PoE, and general networking.

Advantages

High-quality 100% copper conductors ensure excellent signal integrity and performance. LSZH jacket reduces toxic smoke and halogen emissions in case of fire, making it safe for use in public and enclosed spaces. Snagless boot design prevents connector damage during pulling. Stranded conductors provide flexibility for easy routing.

Suitable for

• Ethernet networks in offices, data centers, and home setups
• Power over Ethernet (PoE) devices such as IP cameras and access points
• Patch panel to switch connections
• Wall outlet to device connections

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: U/UTP (Unshielded)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH
• Length: 5.00 meters
• Color: Green
• Connectors: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 24 AWG
• Conductor Type: Stranded
• Frequency Bandwidth: 250 MHz
• Data Transfer Rate: 1 Gbps
• Boot Type: Snagless
• Number of Pairs: 4
• Operating Temperature: -20°C to 60°C
• Certifications: RoHS, CE

Recommendations

For optimal performance, use with CAT6 compatible devices and avoid sharp bends. Ensure proper cable management to maintain signal quality.
