GRENTON MOSFET modul stmievania, montáž na DIN lištu, TF-BUS, 1 kanál, 400W

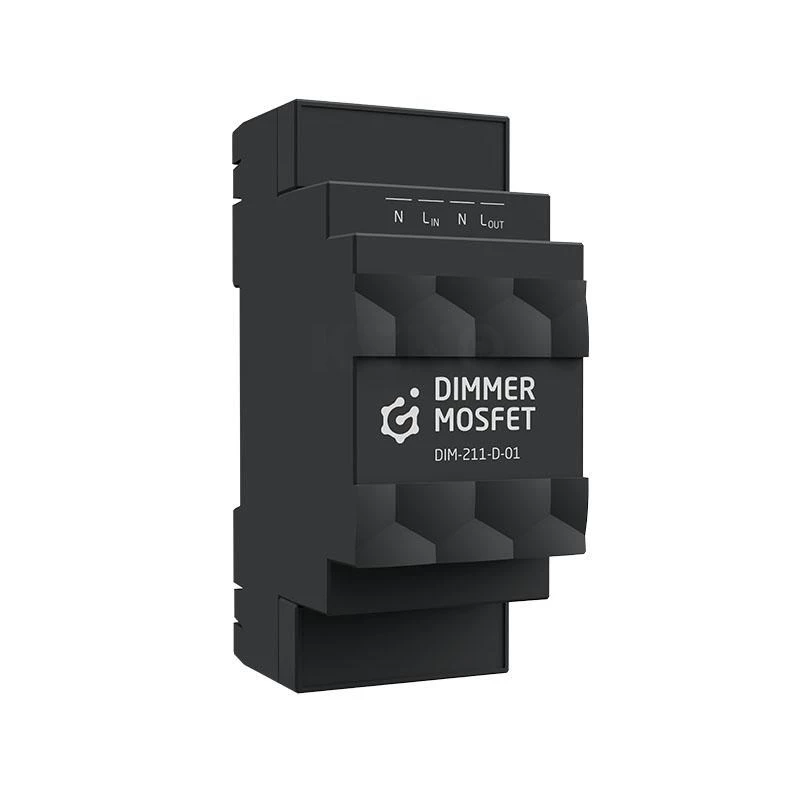

The GRENTON MOSFET Dimming Module (DIM-211-D-01) is a high-performance single-channel dimmer designed for DIN rail mounting. It utilizes advanced MOSFET technology and communicates via the Grenton TF-BUS protocol, making it an ideal component for modern smart lighting control systems. This module supports a wide range of load types including incandescent, halogen, dimmable LED, and dimmable CFL lamps, with a maximum load power of 400W. It features universal dimming (leading edge / trailing edge) and provides comprehensive protection against overload, short-circuit, and over-temperature.

Advantages

Reliable MOSFET dimming technology ensures smooth and flicker-free dimming. The compact 1-module DIN rail design saves space in electrical cabinets. Universal dimming method compatibility allows integration with various dimmable loads. Built-in protections enhance system safety and longevity.

Suitable for

• Smart home and building automation systems using Grenton TF-BUS
• DIN rail mounted lighting control panels
• Residential and commercial lighting applications requiring dimmable LED, halogen, or incandescent lamps

Key specifications

• Product Type: Dimming Module
• Dimming Technology: MOSFET
• Mounting Type: DIN Rail
• Communication Protocol: Grenton TF-BUS
• Number of Channels: 1
• Maximum Load Power: 400 W
• Supported Load Types: Incandescent, Halogen, Dimmable LED, Dimmable CFL
• Control Voltage: 24V DC (via TF-BUS)
• Output Voltage (Load): 100-240V AC, 50/60 Hz
• Dimming Method: Universal (Leading Edge / Trailing Edge)
• Overload Protection: Yes
• Short-Circuit Protection: Yes
• Over-Temperature Protection: Yes
• Operating Temperature: -10°C to +50°C
• Relative Humidity: 5% to 90% RH (non-condensing)
• Housing Material: Plastic
• Number of DIN Modules: 1
• Certification: CE

Recommendations

For optimal performance, use with Grenton TF-BUS compatible controllers and ensure proper load compatibility. Always adhere to local electrical codes and installation guidelines.
