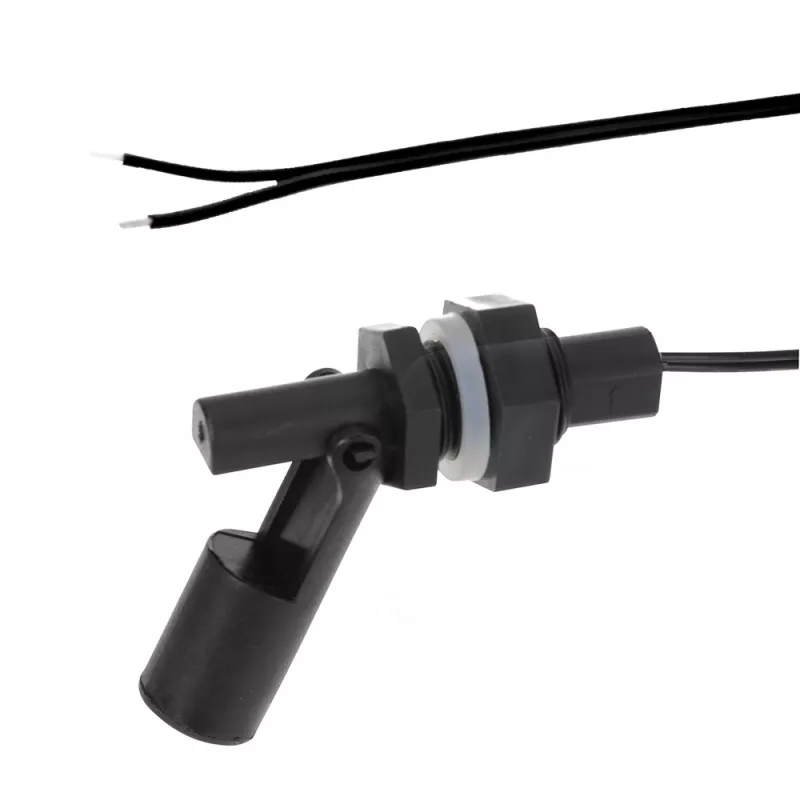

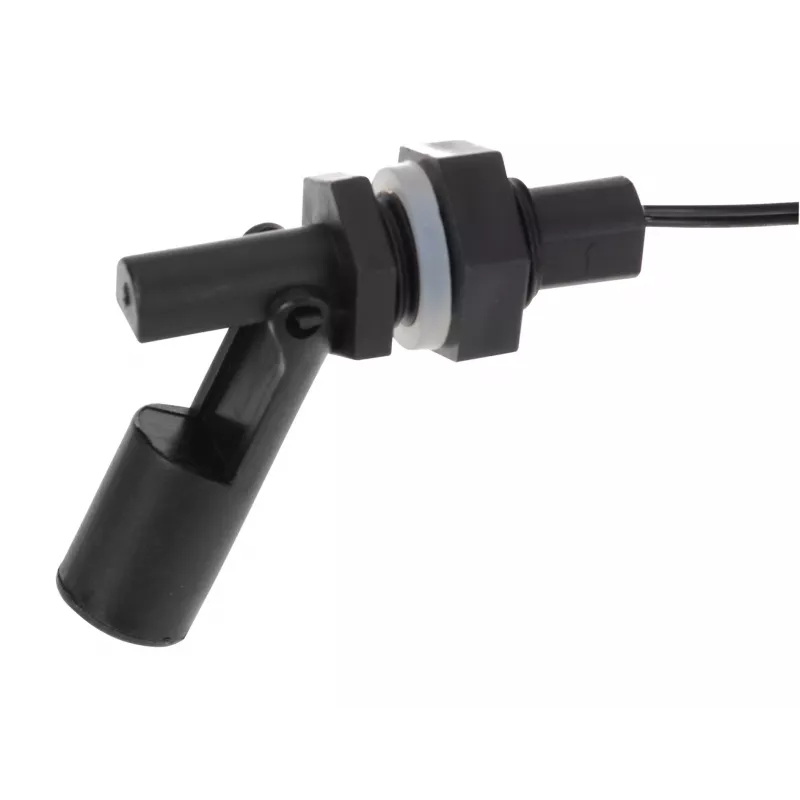

H-TRONIC SSK S3 plavákový spínač 10 m kábel 1114650

Monitor and control liquid levels in tanks, sumps, and reservoirs with the H-TRONIC SSK S3 float switch. Its 10-metre H07RN-F cable and suspended mounting make it suitable for wells, cisterns, and wastewater applications where reliable level detection is required.

Key specifications

• Cable length: 10 m
• Switching function: changeover contact (SPDT)
• Max. switching current: 10 A (resistive load)
• Max. switching voltage: 250 V AC
• Max. switching power: 2.2 kW
• Protection class: IP68
• Operating temperature: 0 to +60 °C
• Housing material: polypropylene (PP)
• Cable type: H07RN-F
• Max. operating pressure: 1 bar
• Liquid density range: 0.95–1.05 g/cm³
• Connection: open cable ends
• Mounting: suspended
• Certification: CE

Why choose it

The SSK S3 offers a robust polypropylene housing and IP68 sealing, ensuring reliable operation even when submerged. Its changeover contact allows flexible integration into control circuits for pumps or alarms.

Ideal use cases

• Automatic pump control in sumps and drainage pits
• High/low level alarm in storage tanks
• Level monitoring in wells and cisterns
• Wastewater and greywater systems

Good to know

The float switch is designed for liquids with densities between 0.95 and 1.05 g/cm³, covering most water-based solutions. The 10 m cable provides ample reach for deep installations.
