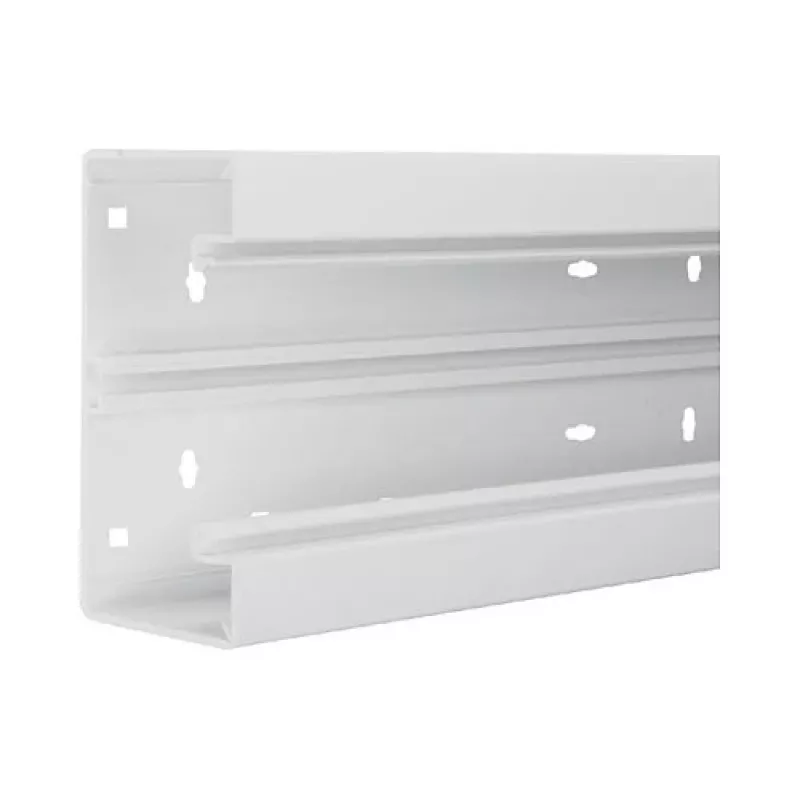

Hager BR6517019016 spodný diel parapetného kanála 80mm dopravná biela

The Hager BR6517019016 Dado Trunking Base is a high-quality PVC base unit designed for professional cable management in commercial and industrial environments. Part of the Hager Tehalit BR series, this trunking base provides a robust foundation for routing and protecting electrical cables, data cables, and other low-voltage wiring. Its traffic white (RAL 9010) finish ensures a clean, neutral appearance that blends seamlessly with modern interiors.

Advantages

This dado trunking base offers exceptional durability and ease of installation. The PVC material is impact-resistant (IK07) and suitable for a wide temperature range (-5 to +60 °C), ensuring long-term performance. The single-compartment design can be expanded with optional dividers for cable segregation, making it versatile for various applications. The base is lead-free and halogen-free, contributing to a safer environment.

Suitable for

• Office buildings and commercial spaces requiring organized cable routing
• Industrial facilities needing robust cable protection
• Installations where surface-mounted trunking is preferred
• Projects requiring a neutral white finish (RAL 9010)

Key specifications

• Product Type: Dado Trunking Base
• Material: PVC (Polyvinyl Chloride)
• Colour: Traffic White (RAL 9010)
• System Series: Hager Tehalit BR
• Trunking Height: 65 mm
• Trunking Width: 170 mm
• Length per Section: 2000 mm
• Number of Compartments: 1 (expandable with dividers)
• Halogen-free: No
• Surface Protection: Untreated
• Mounting Type: Wall Mounting
• Suitable for Cable Routing: Yes
• Suitable for Device Installation: Yes (with appropriate covers/frames)
• Temperature Resistance: -5 to +60 °C
• Impact Resistance: IK07
• IP Protection Class: IP30 (when installed with cover)
• Lead-free: Yes

Recommendations

For a complete installation, pair this base with compatible Hager Tehalit BR covers and accessories. Ensure proper mounting on a clean, dry wall surface. Use appropriate dividers if cable separation is required. Always follow local electrical codes and regulations.
