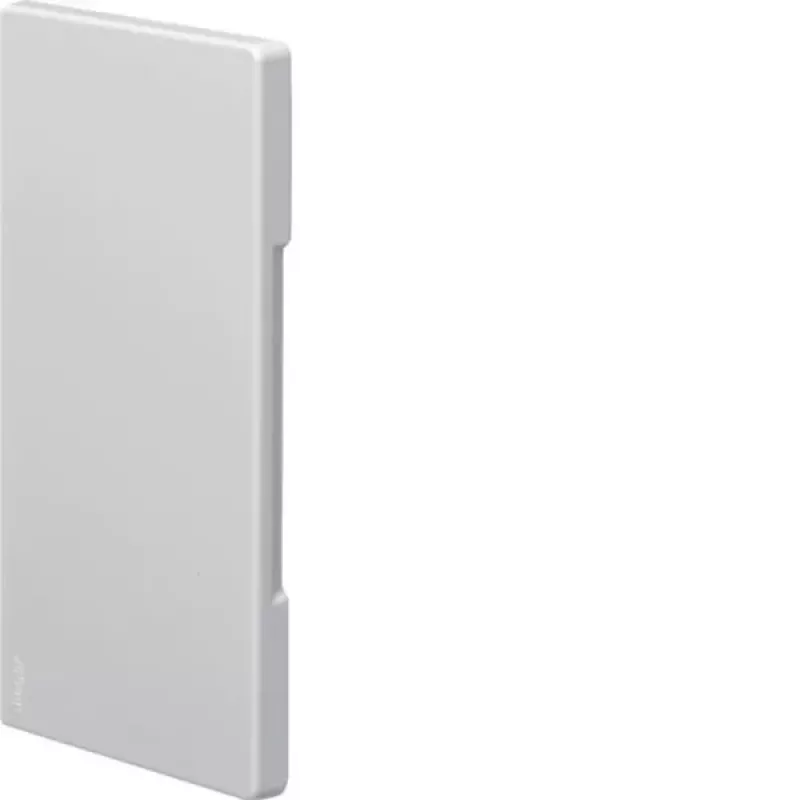

HAGER BR8517069016 koncový diel rezový kryt dopravná biely pre tehalit.BR 170x65 kanál

For electricians and installers finishing a tehalit.BR cable trunking run, this end piece snaps onto the cut edge of a 170 x 65 mm profile, masking the raw cut and giving the installation a clean, professional look in traffic white.

Key specifications

• Type: End piece / cap
• Series: tehalit.BR
• Compatible trunking dimensions (H x W): 170 x 65 mm
• Function: Cut-concealing / masking cut edges
• Colour: Traffic white (RAL 9016)
• Material: PVC
• Mounting: Snap-on / clip-on
• Halogen-free: Yes
• UV-resistant: Yes
• Temperature resistance: -5°C to +60°C
• Surface finish: Matt
• Fire behaviour: Self-extinguishing according to EN 50085-1
• Quantity per pack: 1

Why choose it

The symmetrical design works on either left or right trunking ends, reducing the need to stock separate parts. The traffic white finish matches the trunking colour for a seamless appearance, and the halogen-free PVC material supports modern building requirements.

Ideal use cases

• Terminating tehalit.BR 170x65 trunking in offices, corridors, and commercial spaces
• Covering cut edges after trunking is shortened on site
• Maintaining a clean, professional finish in visible cable management installations

Good to know

The end piece is designed for snap-on installation without tools. It is UV-resistant, so it can be used in areas exposed to sunlight without significant colour fading.
