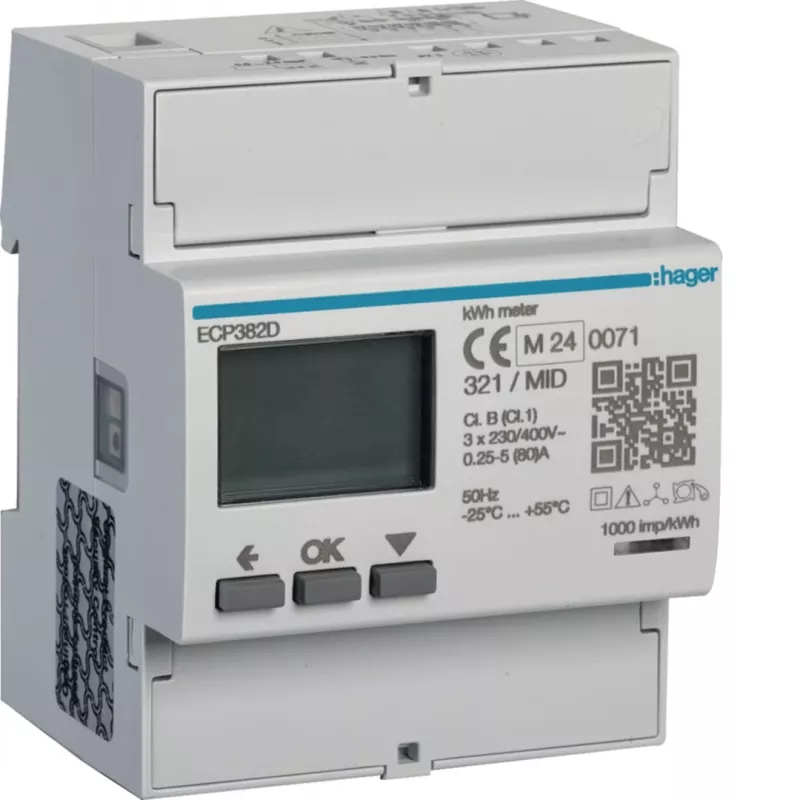

Hager ECP382D 3-fázový elektromer priamy 80A 4M S0 MID

Three-phase electronic energy meter for direct connection up to 80 A. Measures active and reactive energy with Class B accuracy and provides an S0 pulse output for remote monitoring.

Advantages

MID compliant for billing applications. Compact 4-module DIN rail housing. Backlit LCD for clear reading. S0 output enables integration with building management systems.

Suitable for

• Sub-metering in commercial and residential buildings
• Energy monitoring in distribution boards
• Direct connection up to 80 A without current transformers

Key specifications

• 3-phase, direct connection, 80 A maximum current
• Reference voltage: 3x230/400 V AC, 50/60 Hz
• Accuracy class: B (active energy), 2 (reactive energy)
• S0 pulse output: 1000 imp/kWh
• MID compliant (Module B + D)
• DIN rail mounting, 4 modules wide

Recommendations

For installations requiring a MID-certified meter with pulse output and direct connection up to 80 A.
