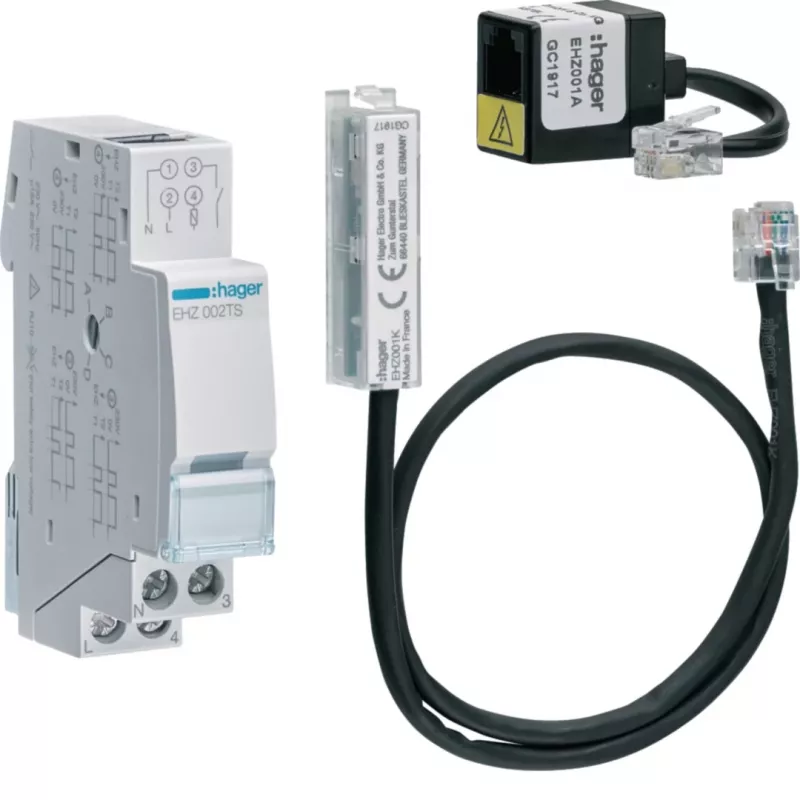

HAGER EHZ003 eHZ sada pre riadenie taríf (EHZ003)

The HAGER EHZ003 is an eHZ tariff management control unit that enables load control based on signals from electronic household meters (eHZ). With two potential-free relay outputs, each rated for 16 A (AC-1), it allows switching of loads according to tariff signals, supporting demand-side management in residential and commercial installations.

Overview

Designed for DIN rail mounting, the EHZ003 occupies 4 module units (TE) and operates on 230 V AC at 50/60 Hz. It receives input via an S0 interface from the eHZ meter, providing a reliable method for tariff-based load switching. The unit features screw terminals for secure connections and a thermoplastic housing for durability.

What stands out

• Two potential-free relay outputs for independent load control
• 16 A switching capacity per channel (AC-1)
• Compact 4 TE DIN rail design
• Low power consumption of less than 1 W
• Wide ambient temperature range from -5 to +45 °C

Technical details

• Product type: eHZ tariff management control unit
• Application: Load control based on smart meter signals
• Compatibility: Electronic household meters (eHZ)
• Number of control channels: 2
• Output type: Potential-free relay outputs
• Max. switching current per channel: 16 A (AC-1)
• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Installation type: DIN rail mounting
• Module width: 4 TE
• Input signal: S0 interface from eHZ meter
• Protection class: IP20
• Ambient temperature range: -5 to +45 °C
• Power consumption: < 1 W
• Connection type: Screw terminals
• Housing material: Thermoplastic
• Functionality: Tariff-based load switching, demand-side management

Our verdict

The HAGER EHZ003 offers a straightforward solution for tariff-based load management in eHZ metering environments, with robust relay outputs and a compact DIN rail footprint.
