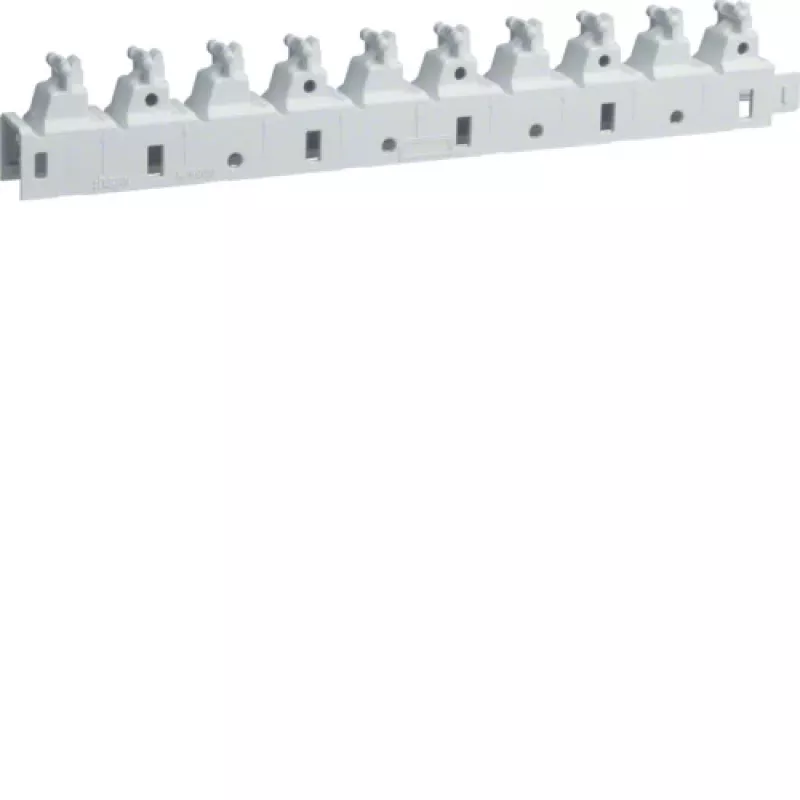

HAGER M5900GRAU membránová vkladacia doska sivá (RAL 7035) polypropylén 10 ks

The HAGER M5900GRAU Membrane Entry Plate is a high-quality cable entry solution designed for distribution boards, enclosures, and junction boxes. Made from durable polypropylene (PP) in grey (RAL 7035), this pack of 10 pieces offers reliable protection and easy snap-in installation.

Advantages

This membrane entry plate provides IP55 protection when correctly installed, ensuring dust and water resistance. It is halogen-free and UV-resistant, making it suitable for demanding environments. The glow wire test (GWT) at 650°C and flammability rating V-2 enhance safety.

Suitable for

• Distribution boards and electrical enclosures
• Junction and connection boxes
• Industrial and commercial cable management

Key specifications

• Product Type: Membrane Entry Plate
• Material: Polypropylene (PP)
• Colour: Grey (RAL 7035)
• Pack Quantity: 10 pieces
• Mounting Type: Snap-in / Clip-on
• Suitable for Cut-out Dimensions: 90 x 150 mm (W x H)
• Number of Cable Entries: 10
• Cable Entry Configuration: 1x Ø 17-28 mm, 2x Ø 10-17 mm, 7x Ø 1-10 mm
• Protection Class: IP55 (when installed correctly)
• Operating Temperature Range: -25 to +60 °C
• Halogen-free: Yes
• Glow Wire Test: 650 °C
• UV Resistance: Yes
• Standards Compliance: IEC 60670-24
• Flammability Rating: V-2

Recommendations

For optimal performance, ensure the cut-out dimensions match 90 x 150 mm and follow installation guidelines to achieve IP55 rating. Suitable for use with HAGER distribution boards and enclosures.
