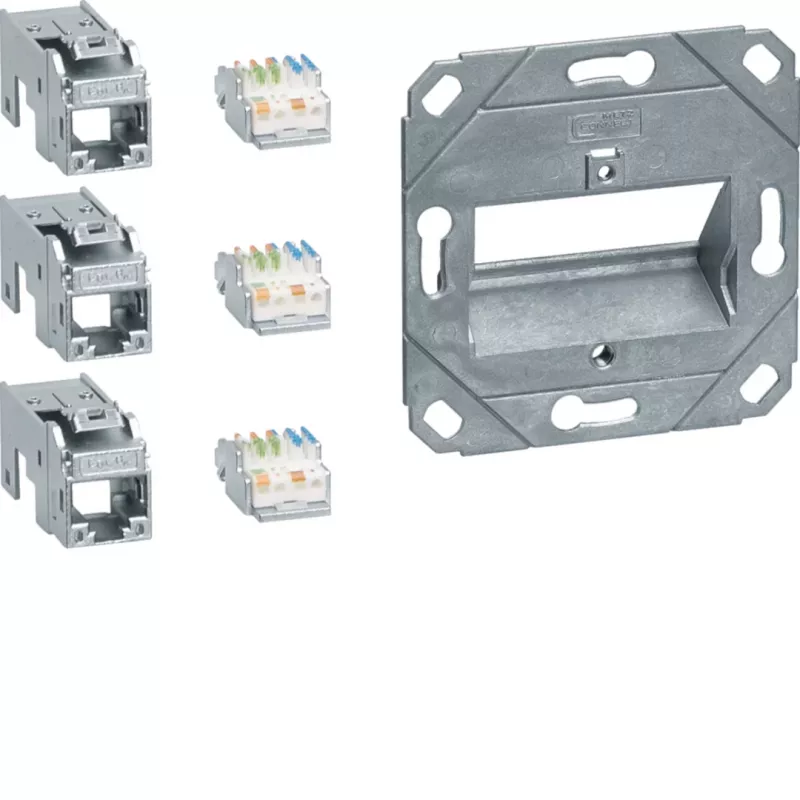

Hager Teha GMKSRJ45C6A3 Cat.6A tienený RJ45 pripojovací modul

The Hager Teha GMKSRJ45C6A3 is a shielded RJ45 connection module engineered for 10 Gigabit Ethernet performance up to 500 MHz. Unlike standard Cat.6 jacks, this module is built for integration into Tehalit trunking systems and flush-mount boxes, offering a tool-free IDC termination that speeds up installation without sacrificing reliability.

Highlights

• Cat.6A (Class EA) performance for 10GBase-T networks
• Shielded FTP/STP design with die-cast zinc housing
• Tool-free IDC termination for solid wires AWG 24-22
• Supports PoE, PoE+, and PoE++ applications
• Gold-plated contacts for long-term signal integrity

In daily use

This module delivers consistent high-speed data transmission in office and industrial environments. Its straight 180° installation direction and modular format make it a direct fit for Hager Tehalit channels, reducing the need for additional adapters. The shielded construction minimizes alien crosstalk, ensuring stable connections even in dense cable bundles.

Full specifications

• Connector Type: RJ45
• Category: Cat.6A (Class EA)
• Shielding: Shielded (FTP/STP)
• Transmission Standard: 10 Gigabit Ethernet (10GBase-T)
• Frequency Range: Up to 500 MHz
• Wiring Scheme: TIA/EIA 568A/B
• Termination Type: IDC (Insulation Displacement Connector)
• Number of Ports: 1
• PoE Support: PoE, PoE+, PoE++
• Contact Material: Gold-plated contacts
• Mounting Type: Modular (for system integration)
• Installation Direction: Straight (180°)
• Housing Material: Die-cast zinc (shielding), Plastic
• Cable Gauge Support: AWG 24-22 solid wire
• Tool-free Installation: Yes
• Compatibility: Tehalit Brüstungskanäle, flush-mount boxes (with appropriate adapters)
• Application: High-speed data networks

Final note

A reliable choice for structured cabling projects demanding Cat.6A performance and PoE readiness in a compact, modular form factor.
