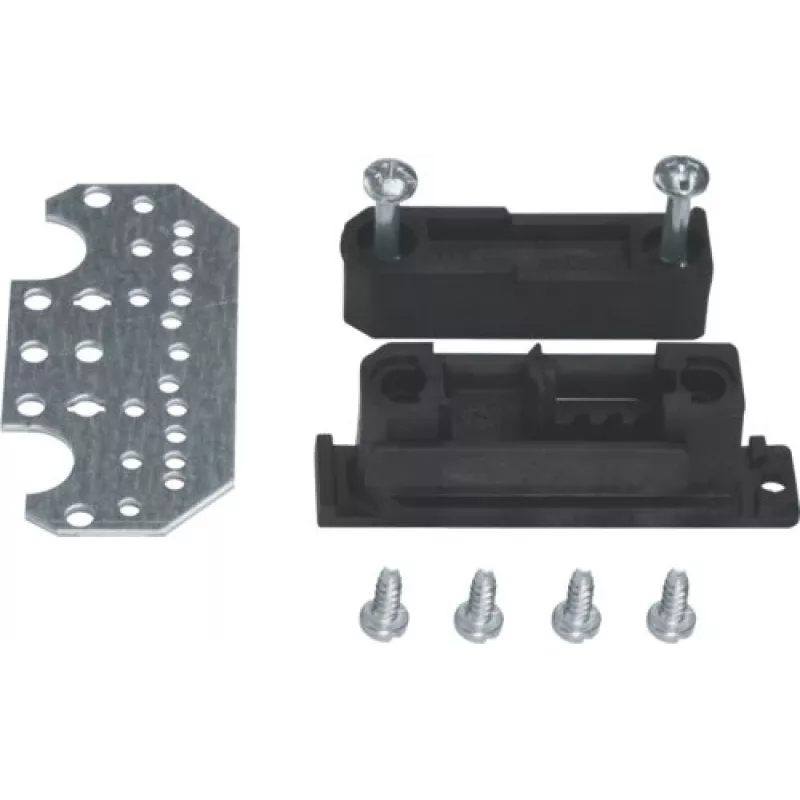

Hager UZ61S2 držiak zbernice 60mm 1-pólový polyamid sivý

Rated insulation voltage of 1000 V AC/DC makes the Hager UZ61S2 busbar holder a robust choice for low-voltage switchgear and controlgear assemblies. This 1-pole holder is engineered for 60 mm busbar systems, accommodating busbar widths from 12 to 30 mm and thicknesses from 5 to 10 mm.

Overview

The UZ61S2 is a screw-mounted busbar holder crafted from polyamide (PA) in grey (RAL 7035). It provides secure support for a single busbar, ensuring stable positioning within electrical distribution boards. The holder complies with IEC 61439-1/2 standards, confirming its suitability for professional installations.

What stands out

• Supports busbar widths 12–30 mm and thicknesses 5–10 mm
• High rated insulation voltage: 1000 V AC/DC
• Durable polyamide construction in grey RAL 7035
• Simple screw mounting for secure fixation
• Compliant with IEC 61439-1/2

Technical details

• Product type: Busbar holder
• Pole configuration: 1-pole
• Busbar system spacing: 60 mm
• Material: Polyamide (PA)
• Mounting type: Screw mounting
• Colour: Grey (RAL 7035)
• Rated insulation voltage: 1000 V AC/DC
• Number of busbars supported: 1
• Application: Low-voltage switchgear and controlgear assemblies
• Standard compliance: IEC 61439-1/2

Our verdict

The Hager UZ61S2 is a reliable busbar holder that combines high voltage insulation with sturdy polyamide construction. Its compatibility with common busbar sizes and compliance with key standards make it a practical component for electrical distribution systems.
