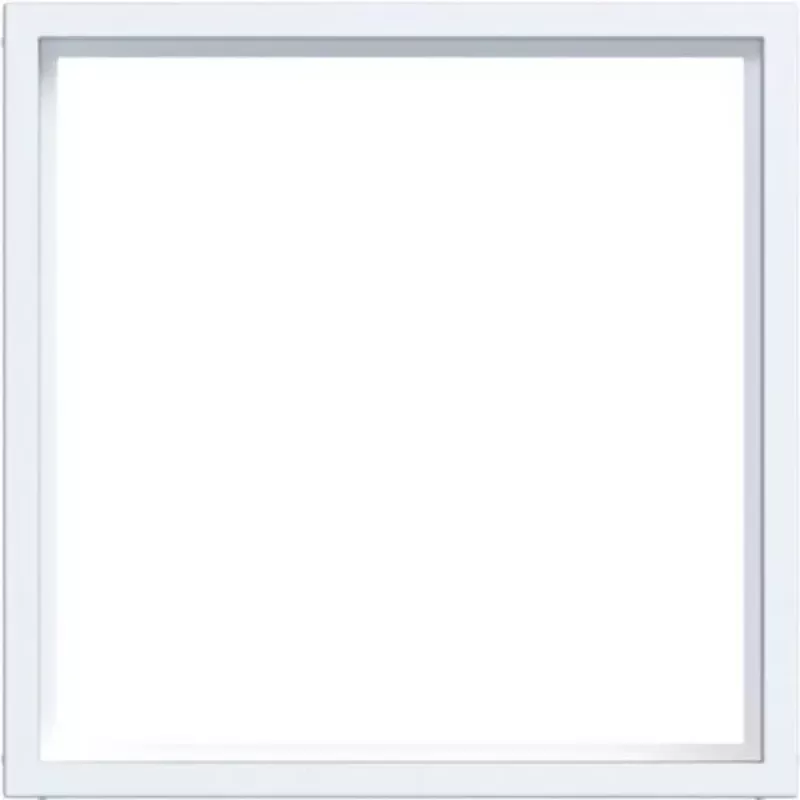

HAGER WAF7073WM medzikrúžok pre 50x50mm centrálne kryty, polárna biela

Electricians and installers use the HAGER WAF7073WM intermediate ring to mount 50x50mm central plates—such as data sockets, multimedia outlets, switches, push-buttons, and dimmers—into Hager flush-mounted or surface-mounted systems. The ring bridges the gap between the central plate and the supporting frame, ensuring a clean, secure fit in residential and commercial installations.

Key specifications

• Product type: Intermediate ring / adapter ring
• Compatibility: Central plates with 50x50mm dimensions
• Colour: Polar white (RAL 9010)
• Material: Thermoplastic, halogen-free
• Surface finish: Glossy
• Mounting type: For flush-mounted (UP) and surface-mounted (AP) systems
• Outer dimensions (W x H): 71 x 71 mm
• Inner dimensions (W x H): 50 x 50 mm
• Depth: 10 mm
• Protection class: IP20
• UV-resistant: Yes
• Series: Hager WAF

Why choose it

The ring is made of halogen-free thermoplastic with a glossy, UV-resistant polar white finish that matches Hager WAF frames and plates. It accepts any standard 50x50mm central plate, simplifying inventory for multi-brand installations.

Ideal use cases

• Installing data or multimedia sockets in Hager frames
• Mounting switches, push-buttons, or dimmers with 50x50mm central plates
• Retrofitting existing flush-mounted or surface-mounted boxes

Good to know

The WAF7073WM is part of the Hager WAF series and is designed for both flush-mounted and surface-mounted installations. It is not intended for outdoor use without additional protection.
