Hager WDE303212 2-pólová vložka prepínača pod omietku, 16 AX, 250 V AC

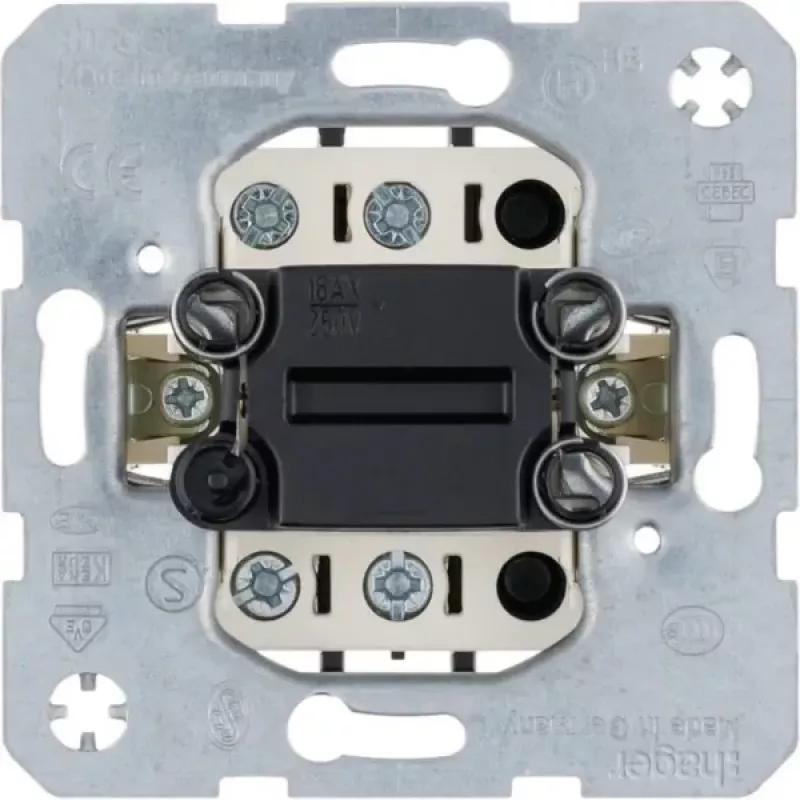

The Hager WDE303212 is a high-quality 2-pole rocker switch insert designed for flush-mounted installation. It is part of the Hager range of wiring accessories, offering reliable switching performance for residential and commercial applications. With a rated current of 16 AX and voltage of 250 V AC, this switch is suitable for controlling lighting and other electrical loads.

Advantages

Robust thermoplastic housing ensures durability and long service life. Screw terminals provide secure and easy connection for rigid conductors up to 2.5 mm². The switch is halogen-free and certified to VDE and CE standards, guaranteeing safety and compliance.

Suitable for

• Flush-mounted installations in walls or panels
• Switching lighting circuits and other AC loads up to 16 AX
• Use in dry indoor environments (IP20)

Key specifications

• Product Type: Rocker Switch Insert
• Switch Function: 2-pole On/Off
• Installation: Flush-mounted (UP)
• Rated Current: 16 AX
• Rated Voltage: 250 V AC
• Number of Poles: 2
• Connection: Screw terminals
• Terminal Capacity: 1.5 - 2.5 mm² (rigid)
• IP Protection: IP20
• Material: Thermoplastic
• Operating Temperature: -5 to +40 °C
• Halogen-free: Yes
• Certification: VDE, CE
• Mounting: Claw and screw mounting
• Number of Modules: 1

Recommendations

For a complete installation, pair this switch insert with compatible Hager frames and rockers. Ensure proper wiring by a qualified electrician.
