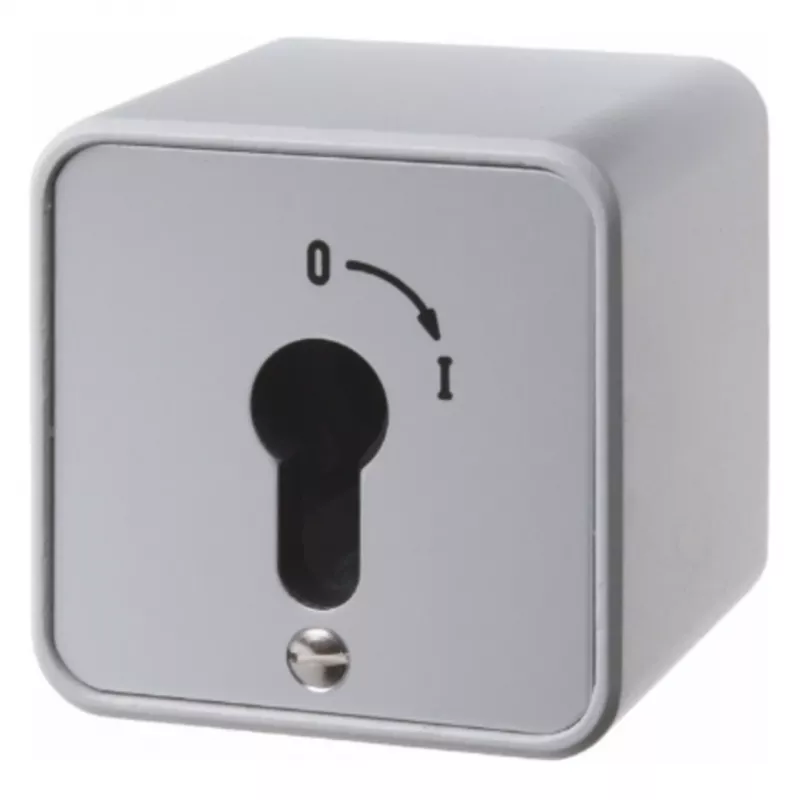

Hager WDE4466 Kľúčový spínač, montáž na omietku, pre profilový polovičný valec, tlakový zinok, IP54

The Hager WDE4466 is a robust surface-mounted key switch designed for profile half-cylinders, ideal for access control and door/gate/shutter operation. Its die-cast zinc housing and IP54 protection ensure durability in demanding environments.

Advantages

High-quality die-cast zinc construction provides excellent mechanical strength and corrosion resistance. The IP54 rating protects against dust and water splashes, making it suitable for outdoor or industrial use. The momentary switching function with two changeover contacts offers flexible control options.

Suitable for

• Access control systems
• Door and gate operation
• Shutter control
• Industrial automation

Key specifications

• Mounting: Surface-mounted
• Cylinder compatibility: Profile half-cylinder (10-40mm adjustable depth)
• Housing material: Die-cast zinc
• Protection class: IP54
• Contacts: 2 changeover (NO/NC)
• Switching function: Momentary (pulse)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection: Screw terminals
• Cable entry: Top and bottom (knockouts/glands)
• Colour: Light grey (RAL 7035)
• Key removal: Neutral position only
• Operating temperature: -25 to +55 °C
• Cylinder not included

Recommendations

For optimal performance, use with a compatible profile half-cylinder (sold separately). Ensure proper cable gland selection for cable entry points.
