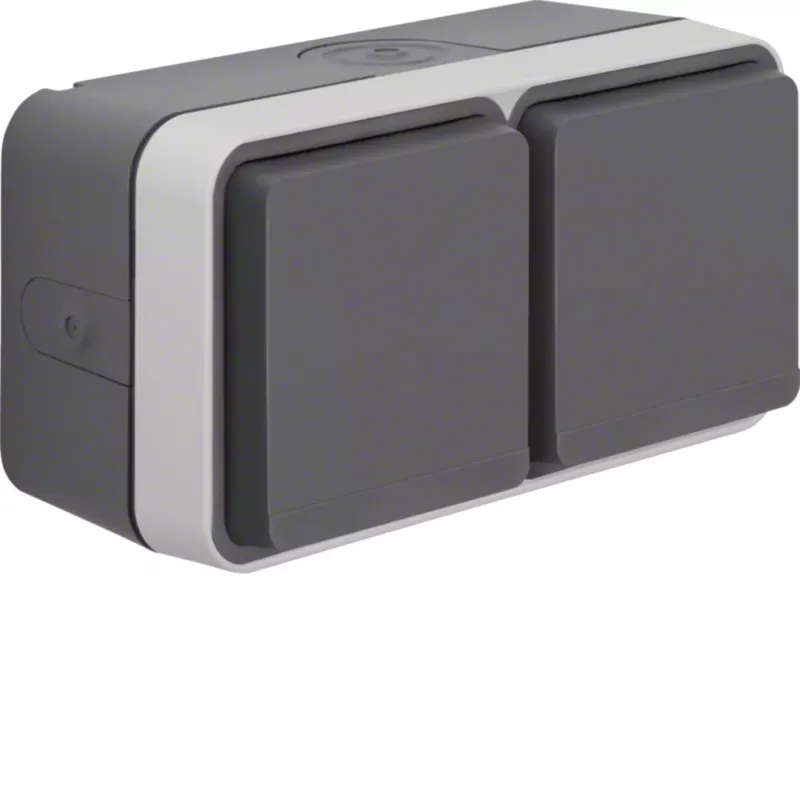

Hager WNC144 nástenná SCHUKO dvojzásuvka s krytom, IP55, sivá

Engineered for demanding environments, the Hager WNC144 delivers a robust IP55-rated double SCHUKO socket outlet in a horizontal surface-mounted format. With a hinged lid and four cable entries, it ensures reliable power distribution in workshops, basements, and outdoor covered areas.

Overview

The Hager WNC144 is part of the W1 series, featuring two SCHUKO (Type F) sockets rated at 16 A / 250 V AC. Its grey thermoplastic housing is halogen-free and impact-resistant (IK07), making it suitable for both residential and commercial installations where durability and safety are paramount.

What stands out

• IP55 ingress protection against dust and water jets
• Hinged lid keeps sockets clean when not in use
• Four cable entries for flexible wiring configurations
• Horizontal orientation fits standard surface-mount boxes
• Halogen-free material enhances fire safety

Technical details

• Socket type: SCHUKO (Type F)
• Number of sockets: 2
• Mounting type: Surface-mounted
• Orientation: Horizontal
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Number of cable entries: 4
• With hinged lid: Yes
• Material: Thermoplastic
• Series: W1
• Halogen-free: Yes
• Impact resistance: IK07
• Operating temperature: -25 to +40 °C
• Terminal capacity: Up to 2.5 mm²

Our verdict

A dependable choice for moisture-prone areas, the Hager WNC144 combines practical features with certified safety, ensuring long-lasting performance in any installation.
