Hager ZAY95148 sada prípojkových svoriek pre HAK K3/K4

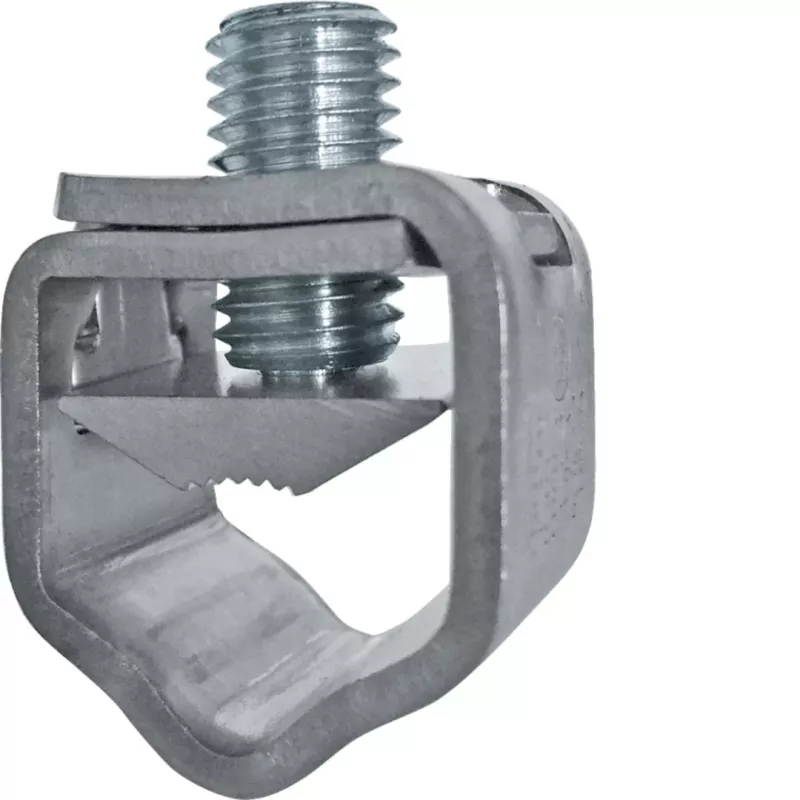

The Hager ZAY95148 Access Terminal Set is a high-quality screw terminal block designed for main incoming cable connections in house connection boxes (HAK). It is compatible with Hager HAK K3 and HAK K4 enclosures, providing a reliable and secure 4-pole connection for L1, L2, L3, and N conductors.

Advantages

This terminal set offers robust construction with copper terminals and plastic insulation, ensuring excellent conductivity and safety. It supports a wide range of conductor cross-sections (10-70 mm² rigid, 10-50 mm² flexible) and is rated for 160 A and 400 V AC, making it suitable for demanding residential and commercial installations.

Suitable for

• Main incoming cable connections in Hager HAK K3 and HAK K4 house connection boxes
• Electrical distribution systems requiring a 4-pole screw terminal block
• Installations requiring compliance with DIN VDE 0603-1

Key specifications

• Product Type: Access Terminal Set
• Compatibility: Hager HAK K3, Hager HAK K4
• Number of Terminals: 4 (L1, L2, L3, N)
• Terminal Type: Screw Terminal
• Conductor Cross-Section (Main, Rigid): 10 - 70 mm²
• Conductor Cross-Section (Main, Flexible): 10 - 50 mm²
• Conductor Cross-Section (Output, Rigid): 10 - 70 mm²
• Conductor Cross-Section (Output, Flexible): 10 - 50 mm²
• Rated Current (In): 160 A
• Rated Voltage (Un): 400 V AC
• Number of Poles: 4-pole
• Terminal Material: Copper (Cu)
• Insulation Material: Plastic
• Mounting Type: Screw Mounting
• Colour: Grey
• Standard: DIN VDE 0603-1

Recommendations

For optimal performance and safety, ensure that the terminal set is installed by a qualified electrician and that all connections are tightened to the manufacturer's specified torque. Always verify compatibility with your specific HAK enclosure model.
