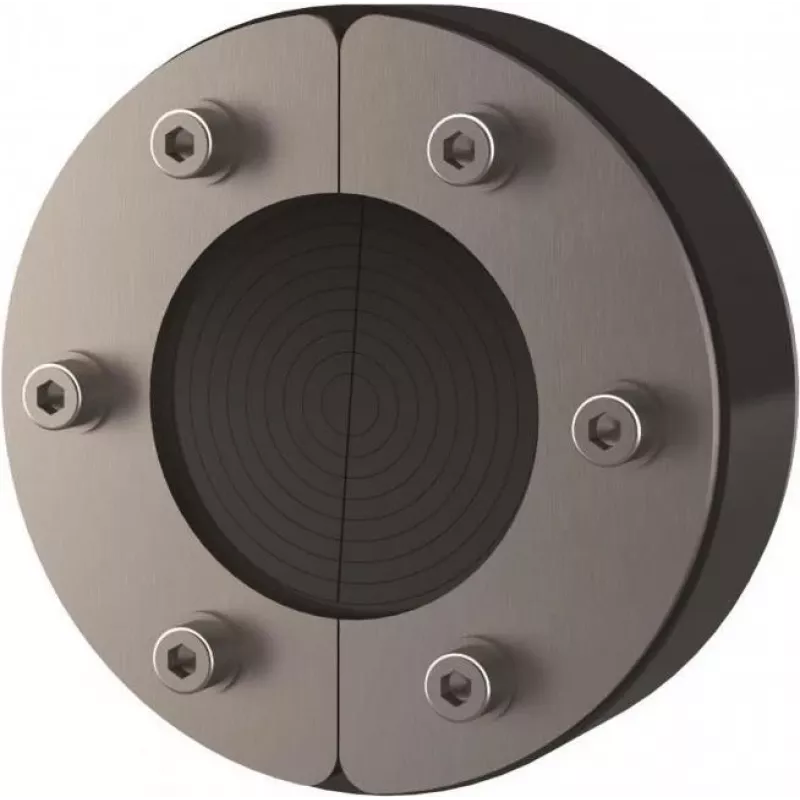

Hauff-Technik HRD 150 - SG - 1/12 - 75 systém tesnenia káblov

The Hauff-Technik HRD 150 - SG - 1/12 - 75 is a high-quality cable sealing system designed for reliable sealing of a single cable in core drill holes or wall sleeves. This mechanical compression seal ensures gas and water tightness up to 2.5 bar, making it ideal for use in buildings, basements, and foundations. The divisible design allows for easy retrofitting around existing cables.

Advantages

Gas and water tight up to 2.5 bar; UV and chemical resistant; suitable for a wide cable diameter range from 12 to 75 mm; easy installation with radial sealing; durable EPDM rubber seal with stainless steel clamping plates.

Suitable for

• Sealing single cables in core drill holes or wall sleeves
• Use in basements, foundations, and other building areas requiring watertight and gastight seals
• Retrofitting around existing cables due to divisible design

Key specifications

• Core drill hole diameter: 150 mm
• Number of cables: 1
• Cable diameter range: 12 - 75 mm
• Pressure resistance: Up to 2.5 bar (25 m water column)
• Material seal: EPDM rubber
• Material clamping plates: Stainless steel V2A
• Temperature resistance: -30°C to +100°C
• UV resistance: Yes
• Chemical resistance: Yes
• Divisible design: Yes

Recommendations

Ensure the core drill hole diameter matches 150 mm and the cable diameter is within 12-75 mm for optimal sealing performance. For installation, follow the manufacturer's instructions for mechanical compression.
