HDMI HD Audio Extractor DeLOCK 63332

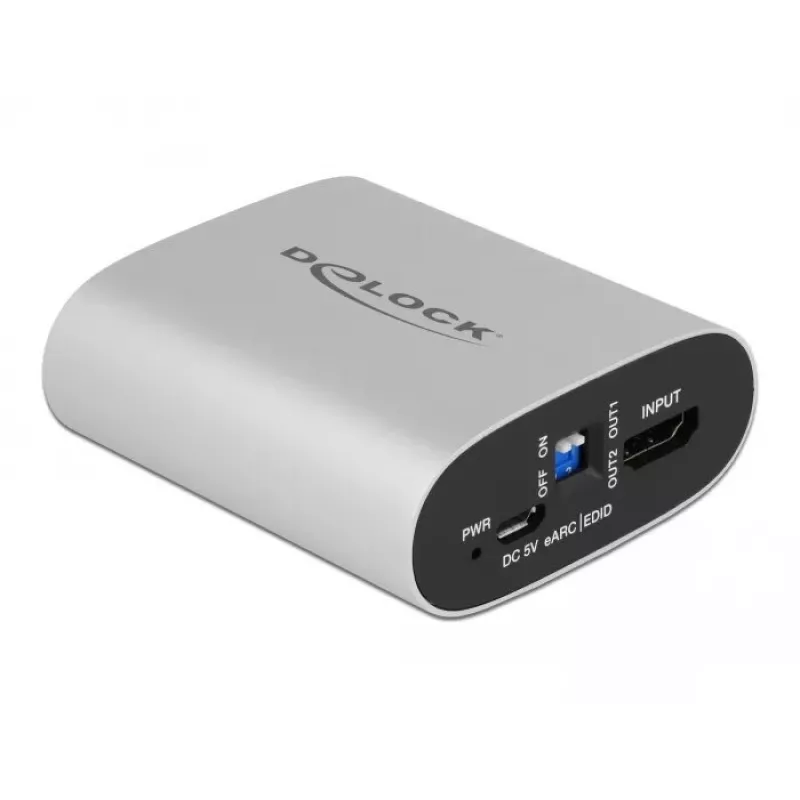

The HDMI HD Audio Extractor DeLOCK 63332 extracts audio from an HDMI signal while passing video to a display. It provides one HDMI input and two HDMI outputs so the video remains connected to a TV or monitor while the extracted audio is available at a separate HDMI audio port. The device supports up to 3840 x 2160 resolution and offers an option to enable eARC for returning the TV’s audio to your receiver or soundbar. Its compact silver housing and low power consumption make it suitable for integration into existing AV setups.

Advantages

The extractor transmits high-definition audio formats via HDMI, unlike traditional digital S/PDIF outputs, enabling full surround sound compatibility with modern AV receivers. It supports eARC mode to route audio from the TV back to the audio output, and the two HDMI outputs allow simultaneous video passthrough and audio extraction without interrupting the display. Small dimensions and USB power make installation straightforward.

Suitable for

• Connecting a source device to a TV while sending audio to an AV receiver or soundbar
• Integrating older receivers or soundbars that lack Ultra-HD HDMI inputs
• Extracting TV audio via eARC to an external audio system

Key specifications

• Brand: DELOCK
• Model: 63332
• HDMI inputs: 1
• HDMI outputs: 2
• Maximum resolution: 3840 x 2160 (4K)
• Power supply: Micro-USB B, 5 V, typical 2 W
• Colour: Silver
• Dimensions (W×D×H): 65 × 70 × 27 mm
• Supports HDMI HD audio and eARC

How to use

Connect the HDMI source (e.g., Blu‑ray player, game console or set‑top box) to the HDMI input of the extractor. Use one HDMI output to connect the TV or monitor for video passthrough. Connect the second HDMI output to your AV receiver or soundbar to deliver the extracted audio. If you want the TV’s audio to be sent back to the audio output, enable the eARC function on the extractor and ensure the TV supports eARC/ARC.

Recommendations

For best results, use high-quality HDMI cables that support 4K and HDR where applicable, and confirm that both the TV and receiver support the required HDMI audio formats and eARC/ARC settings. Place the extractor close to the connected devices and use the supplied Micro-USB power source for stable operation.
