HDMI splitter Vention 1 In 4 Out 4K@30Hz zlatá hliníková zliatina

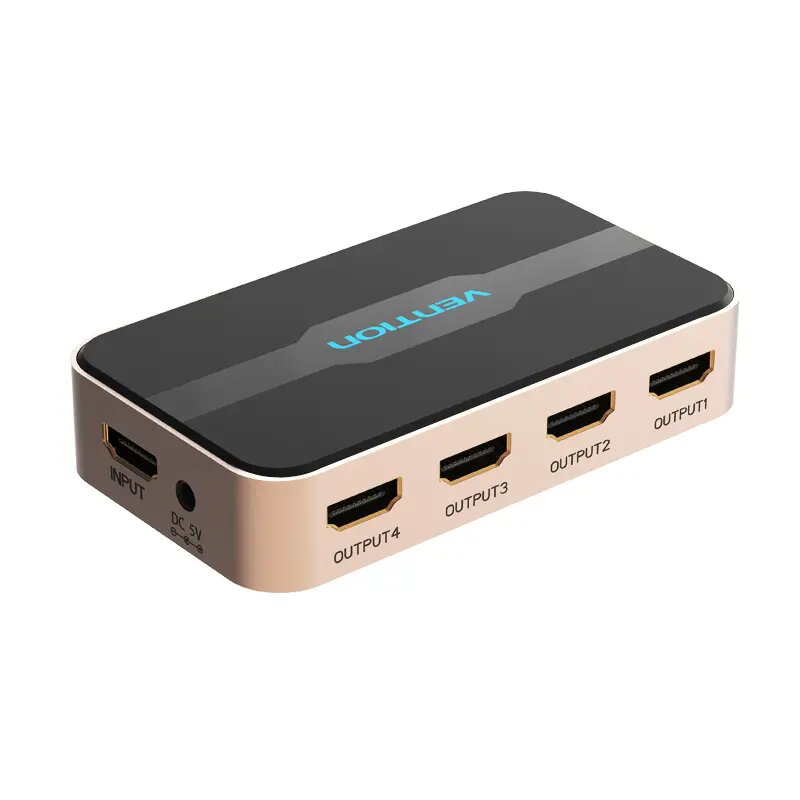

The Vention HDMI Splitter 1 In 4 Out 4K@30Hz Gold Aluminum Alloy distributes a single HDMI source to four HDMI displays while supporting up to 3840 × 2160 resolution at 30 Hz. Housed in a durable black and gold aluminum alloy case, this splitter is built for stable signal distribution over short to medium distances and includes a DC-in jack for external power.

Advantages

The device supports four simultaneous HDMI outputs with consistent 4K@30Hz performance and a compact metal enclosure for improved heat dissipation and durability. Its gold-plated HDMI connectors enhance signal reliability and resistance to corrosion. A separate DC-in jack ensures stable powered operation when driving multiple displays.

Suitable for

• Retail or exhibition displays that require the same HDMI source on multiple screens
• Small control rooms or meeting rooms with several monitors
• Home entertainment setups where one player or set-top box must feed multiple TVs

Key specifications

• Video port type: HDMI
• Video ports quantity: 4
• Maximum resolution: 3840 × 2160 (4K) @ 30 Hz
• Maximum operating distance: 30 m
• Maximum refresh rate: 30 Hz
• Power: DC-in jack (external power adapter required)
• Colour: Black, Gold
• Quantity: 1 pc

How to use

Connect the HDMI source (PC, player, set-top box) to the splitter’s input, then connect up to four HDMI displays to the splitter outputs. Attach an appropriate external DC power adapter to the DC-in jack if needed to maintain stable output across all displays. Power on the source and all connected displays; the same image will appear on each screen at up to 4K@30Hz depending on cable length and display capability.

Recommendations

Use high-quality HDMI cables rated for 4K to minimize signal loss; for distances approaching the specified maximum operating distance, consider using shorter runs or active/extender solutions. Verify connected displays support 4K@30Hz and use a compatible power adapter to ensure reliable operation.
