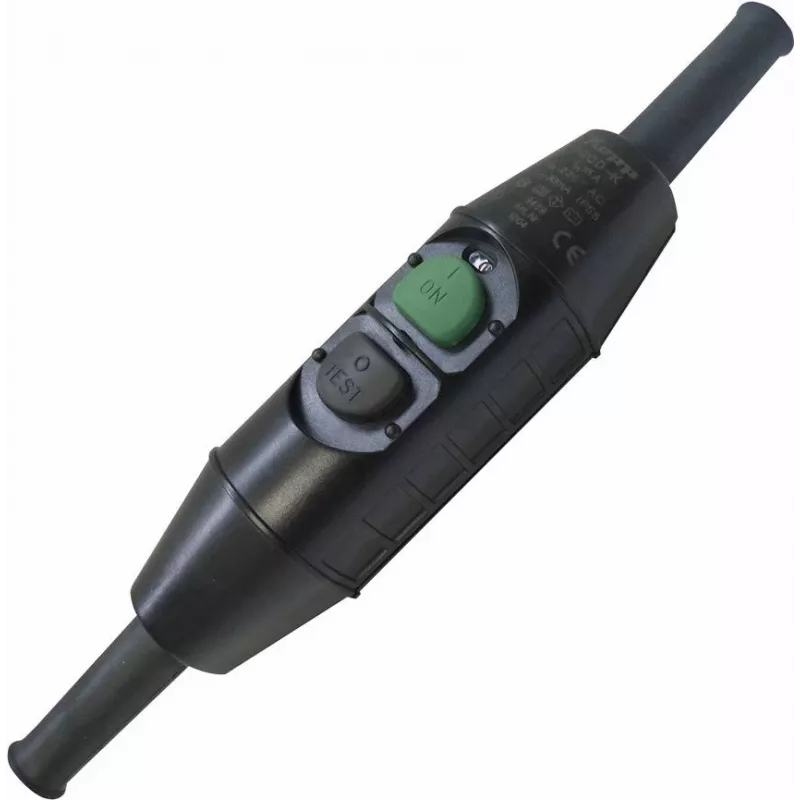

HEINRICH KOPP prenosný bezpečnostný spínač PRCD-K 30mA 16A 230VAC IP55 190400015

Protect yourself from dangerous electric shocks when working outdoors or in damp environments. This portable residual current device (PRCD-K) from HEINRICH KOPP monitors the circuit and cuts power within 30 milliseconds if a fault current of 30 mA is detected.

Who is it for

Electricians, construction workers, and DIY enthusiasts who use power tools in gardens, workshops, or on building sites where reliable personal protection is essential.

Main features

• Rated residual current: 30 mA
• Rated current: 16 A
• Rated voltage: 230 V AC
• Protection degree: IP55
• Undervoltage release
• Protective earth conductor monitoring
• Integrated test button
• Manual reset
• LED status indicator
• Schuko plug and socket (CEE 7/7 and CEE 7/3)

Specifications

• Device type: Portable Residual Current Device (PRCD-K)
• Frequency: 50 Hz
• Number of poles: 2-pole (L, N) + PE monitoring
• Tripping time: < 30 ms
• Operating temperature range: -25°C to +40°C
• Housing material: Robust plastic
• Mounting type: Plug-in adapter

Tips

Press the test button regularly to ensure the device is functioning correctly. The PRCD-K must be reset manually after each trip.
