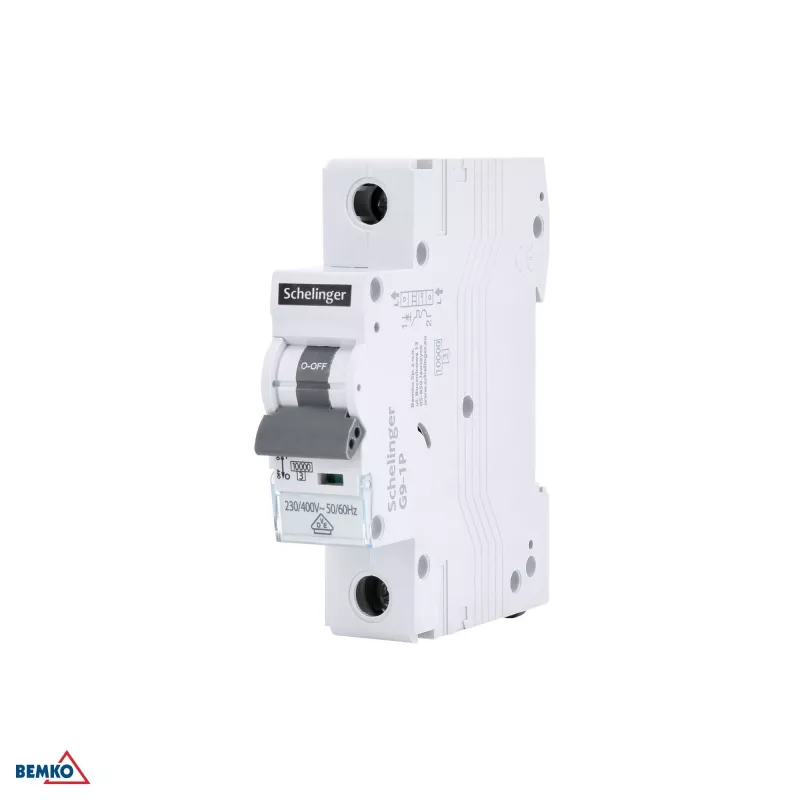

Schelinger A02-G9-1P-B16 16A jednopólový istič typ B 10kA

With a short-circuit breaking capacity of 10 kA, the Schelinger A02-G9-1P-B16 miniature circuit breaker provides robust protection for residential and commercial installations. This single-pole MCB is rated at 16 A and features a Type B tripping curve, making it ideal for circuits with moderate inrush currents such as lighting and socket outlets. Compliant with VDE and EN 60898-1, it ensures reliable performance and safety in DIN rail mounted distribution boards.

Overview

The Schelinger A02-G9-1P-B16 is a 1-pole miniature circuit breaker designed for overcurrent and short-circuit protection in low-voltage electrical systems. It operates at a rated voltage of 230 V AC and a frequency of 50/60 Hz. The breaker is intended for mounting on standard 35 mm DIN rails and occupies a single modular width of 18 mm, allowing efficient use of space in distribution panels.

What stands out

• High breaking capacity: 10 kA ensures safe interruption of high fault currents.
• Type B tripping curve: trips between 3 and 5 times rated current, suitable for general-purpose circuits.
• VDE certification: guarantees compliance with stringent European safety standards.
• Wide terminal capacity: accepts solid conductors up to 25 mm² and flexible conductors up to 16 mm².
• Long service life: rated for 20,000 mechanical and 10,000 electrical operations.
• Clear ON/OFF indicator for easy status identification.

Technical details

• Product type: Miniature Circuit Breaker (MCB)
• Rated current: 16 A
• Number of poles: 1P (single pole)
• Tripping curve: Type B
• Short-circuit breaking capacity (Icn): 10 kA
• Rated voltage: 230 V AC
• Rated frequency: 50/60 Hz
• Standard compliance: VDE, EN 60898-1
• Mounting type: DIN rail (35 mm)
• Terminal type: screw terminals
• Terminal capacity (solid conductor): up to 25 mm²
• Terminal capacity (flexible conductor): up to 16 mm²
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Protection degree: IP20
• Operating temperature range: -25°C to +55°C
• Storage temperature range: -40°C to +70°C
• Energy limiting class: 3
• Modular width: 1 module (18 mm)

Our verdict

The Schelinger A02-G9-1P-B16 is a dependable and certified MCB that delivers essential protection with a compact footprint. Its 10 kA breaking capacity and VDE approval make it a solid choice for electricians and panel builders seeking reliable circuit protection for standard applications.
