HEINRICH KOPP Zemný kábel NYY-J 3G1,5 mm², 10 m, čierny 153310045

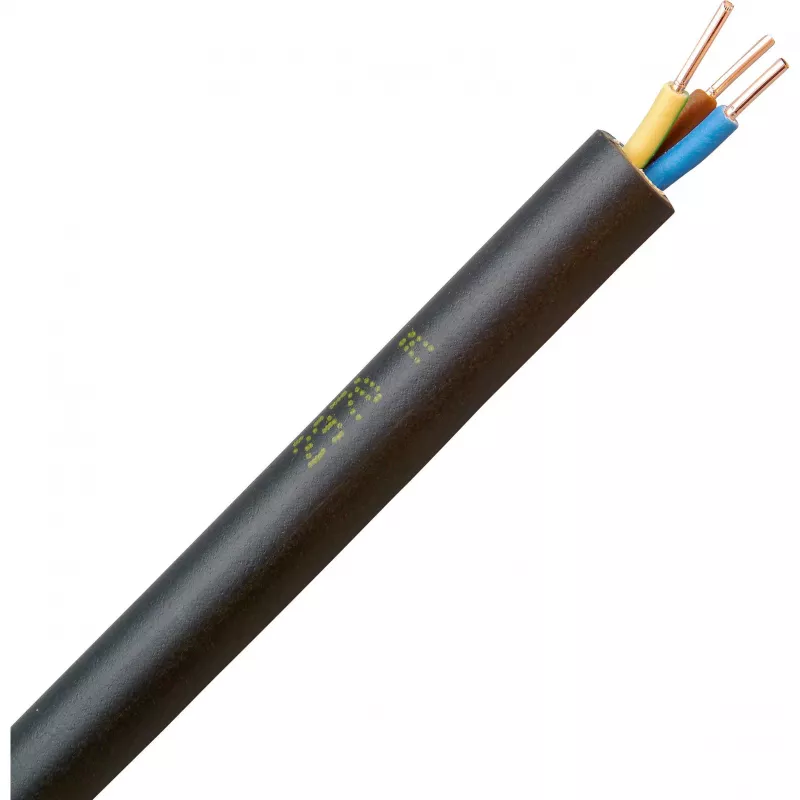

Underground power cable NYY-J with 3 copper conductors, each 1.5 mm², in a black PVC sheath. Designed for fixed installation underground, in concrete, or indoors, this 10 m cable delivers reliable power distribution for residential and commercial applications.

Advantages

Robust PVC insulation and sheath provide mechanical protection and resistance to moisture and UV. The green-yellow protective earth conductor ensures safe operation. Suitable for direct burial without additional conduit.

Suitable for

• Underground power supply for garden lighting, pumps, and outbuildings
• Fixed installation in concrete or masonry
• Indoor power distribution in dry or damp environments

Key specifications

• Cable type: NYY-J
• Number of conductors: 3
• Conductor cross-section: 1.5 mm²
• Conductor material: Copper (Cu)
• Rated voltage U0/U: 0.6/1 kV
• Insulation: PVC
• Sheath: PVC, black
• Length: 10 m
• Outer diameter: 8.5 mm
• Temperature range (fixed installation): -30 °C to +70 °C
• Flame retardant: Yes (VDE 0482-332-1-2 / IEC 60332-1-2)
• UV resistant: Yes

Recommendations

For safe installation, bury at a depth of at least 60 cm and use sand bedding. Ensure compliance with local electrical regulations.
