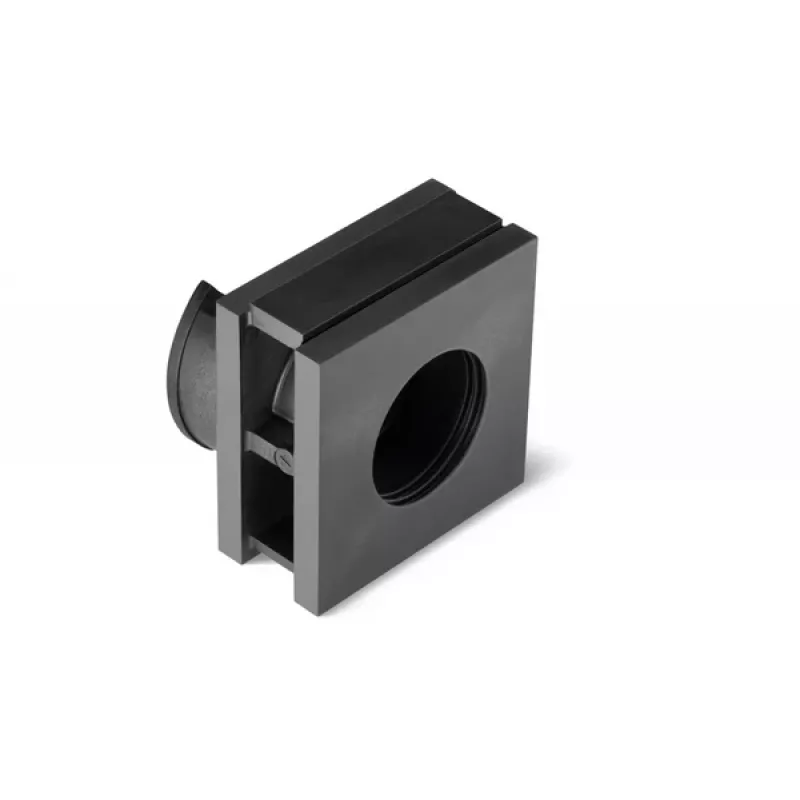

HellermannTyton 440-00032 doska na manažment káblov, čierny TPE, IP66, -40 až 100 °C

Managing cable entries in enclosures while maintaining a high protection rating can be challenging. The HellermannTyton 440-00032 cable management plate provides a reliable solution for routing and sealing cables in demanding environments.

Who is it for

This plate is intended for panel builders, electrical installers, and maintenance technicians who need to organize cable entries in industrial enclosures, control cabinets, or outdoor installations where protection against dust and water is critical.

Main features

• Made from thermoplastic elastomer (TPE) for flexibility and durability
• Black colour for a professional appearance
• IP66 protection rating, suitable for harsh environments
• Wide operating temperature range from -40 °C to 100 °C
• Flammability rating UL 94 V0
• Complies with CSA-C22.2 No. 94.1, CSA-C22.2 No. 94.2, UL 50, and UL 50E
• Halogen-free and silicone-free
• Good UV resistance for outdoor use

Specifications

• Product type: Cable management plate
• Material: Thermoplastic elastomer (TPE)
• Colour: Black
• IP protection class: IP66
• Minimum operating temperature: -40 °C
• Maximum operating temperature: 100 °C
• Flammability rating: UL 94 V0
• Standard compliance: CSA-C22.2 No. 94.1, CSA-C22.2 No. 94.2, UL 50, UL 50E
• Halogen-free: Yes
• Silicone-free: Yes
• UV resistance: Good

Tips

For optimal sealing, ensure the plate is properly seated and the cable diameters match the plate openings. The TPE material remains flexible even at low temperatures, making installation easier in cold conditions.
