HellermannTyton HelaCon Plus Mini Push-in Sada drôtených spojok, 350 ks, 0,5-2,5 mm², 450 V, 24 A 148-90046

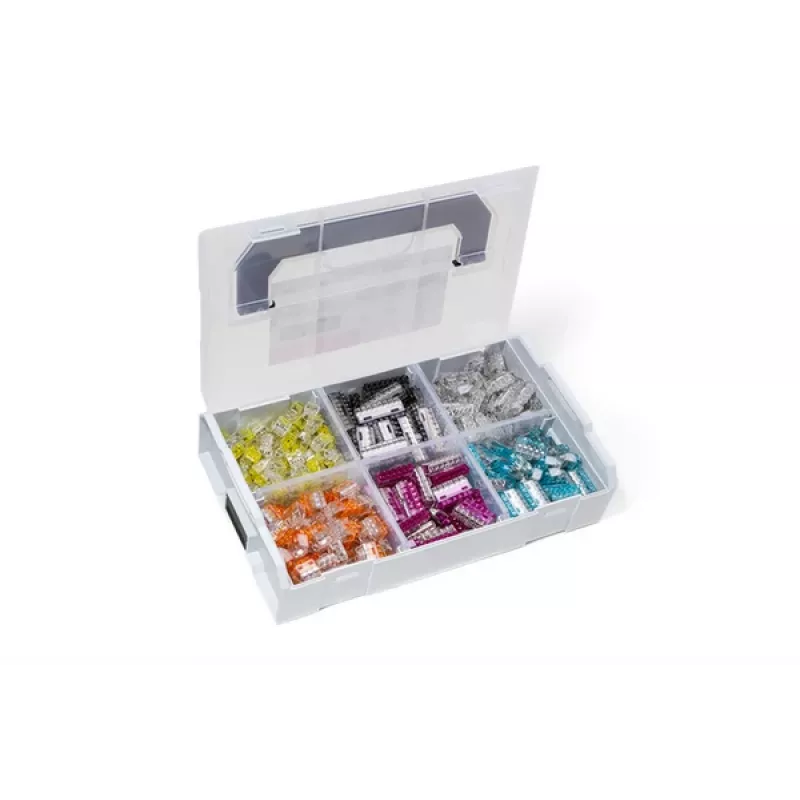

This assortment brings together the HelaCon Plus Mini push-in connectors in the three most-used pole counts, giving you a ready stock for solid, stranded, and fine-stranded conductors up to 2.5 mm². Unlike screw-based terminals, the push-in spring mechanism locks each conductor instantly without tools, and the transparent housing lets you confirm the strip length at a glance.

Highlights

• 350-piece set: 150 two-pole, 100 three-pole, 100 five-pole connectors
• Accepts rigid 0.5–2.5 mm² and flexible 1.0–2.5 mm² conductors (AWG 20–14)
• Rated for 450 V AC and 24 A, suitable for lighting and power circuits
• Transparent polyamide housing with integrated test point

In daily use

The push-in design speeds up junction box wiring and reduces fatigue on repetitive installations. Because the connectors are transparent, you can visually check that each conductor is fully inserted before closing the box. The test point on every pole allows voltage testing without removing the connector.

Full specifications

• Connection method: Push-in
• Conductor compatibility (rigid/solid): 0.5–2.5 mm² (AWG 20–14)
• Conductor compatibility (flexible/stranded): 1.0–2.5 mm² (AWG 16–14)
• Conductor compatibility (fine-stranded): 1.0–2.5 mm² (AWG 16–14)
• Rated voltage: 450 V AC
• Rated current: 24 A
• Operating temperature: -30 °C to +85 °C
• Housing material: Polyamide (PA66)
• Contact material: Tin-plated copper
• Spring material: Stainless steel
• Flammability rating: UL94 V-2
• Colour: Transparent / Grey

Final note

A compact, all-in-one connector kit that covers everyday wiring tasks with the convenience of tool-free push-in termination.
