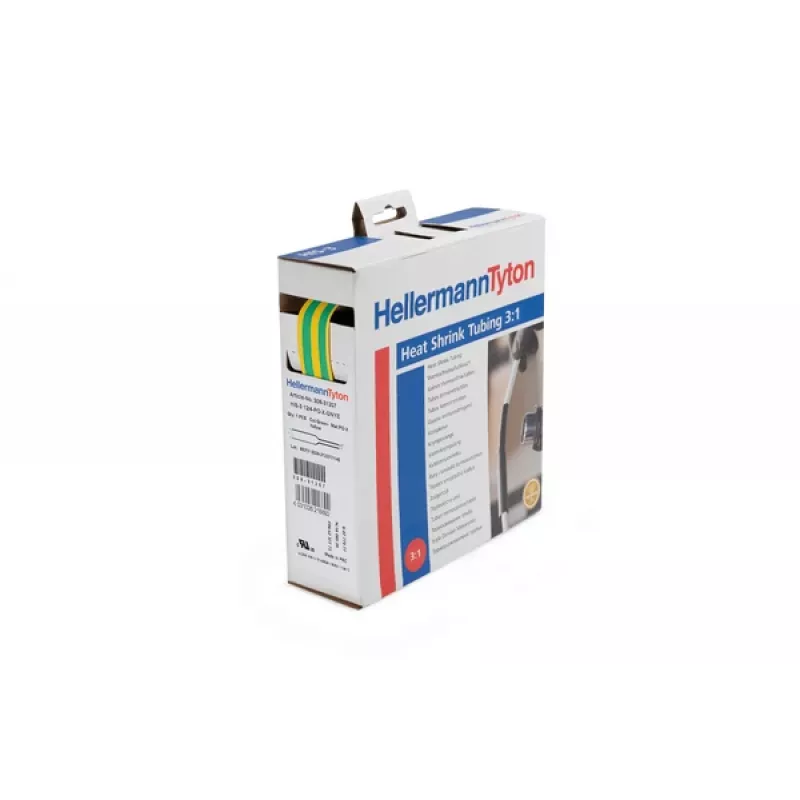

HellermannTyton HIS-3 6/2 mm teplom zmrštiteľná bužírka, 3:1, zelená/žltá, 5 m

This heat shrink tubing offers a 3:1 shrink ratio, recovering from a supplied inner diameter of 6.0 mm to 2.0 mm for secure insulation and strain relief. The green/yellow colour coding makes it suitable for earth wire identification.

Overview

The HellermannTyton HIS-3 series is a halogen-free polyolefin tubing with a 5 m length, supplied in a dispenser box. It operates from -55 °C to +125 °C and meets UL94 V0 flammability requirements.

What stands out

• 3:1 shrink ratio for tight fit over irregular shapes
• Green/yellow colour for earth wire marking
• Halogen-free polyolefin material
• Wide operating temperature range: -55 °C to +125 °C
• UL94 V0 flammability rating

Technical details

• Supplied inner diameter: 6.0 mm
• Recovered inner diameter: 2.0 mm
• Length: 5 m
• Shrink ratio: 3:1
• Minimum shrink temperature: +100 °C
• Dielectric strength: 20 kV/mm
• Tensile strength: 15 MPa
• Elongation at break: 400%
• Material: Polyolefin (PO)
• Colour: Green/Yellow

Our verdict

A reliable heat shrink tubing for electrical insulation and identification, especially where earth conductors need clear marking.
