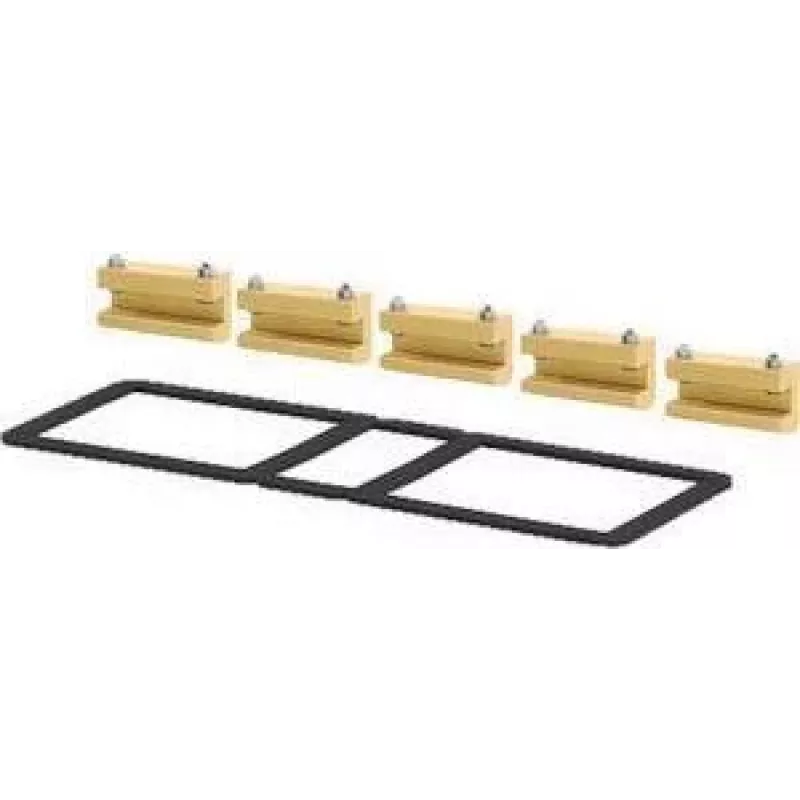

Hensel Mi SV 63 Spojka zberníc, 5-pólová, 63 A, 690 V AC, sivá 20001594

Connect 5-pole flat busbars in Hensel Mi SV 63 distribution boards and meter cabinets with this 63 A, 690 V AC connector. The snap-on thermoplastic housing (UL94 V-0) enables quick, tool-free installation.

Overview

The Hensel 20001594 busbar connector joins 5-pole flat busbars within the Mi SV 63 system. It is rated for 63 A and 690 V AC, with copper/brass conductive parts and a halogen-free grey housing (RAL 7035). The connector clips onto busbars without screws, and provides IP20 protection when installed.

What stands out

• 5-pole design for three phases, neutral, and protective earth
• Rated current 63 A, rated voltage 690 V AC
• Snap-on mounting for fast assembly
• Halogen-free thermoplastic housing, flammability rating UL94 V-0
• Operating temperature range -25 °C to +40 °C

Technical details

• Product type: Busbar connector
• Number of poles: 5
• System compatibility: Hensel Mi SV 63
• Connection type: For flat busbars
• Mounting type: Snap-on / Clip-on
• Housing material: Thermoplastic, halogen-free
• Conductive material: Copper / Brass
• Colour: Grey (RAL 7035)
• Degree of protection: IP20 (when installed)
• Ambient temperature range: -25 °C to +40 °C
• Flammability rating: UL94 V-0

Our verdict

A reliable busbar connector for Hensel Mi SV 63 installations, offering secure 5-pole connection with easy snap-on mounting.
