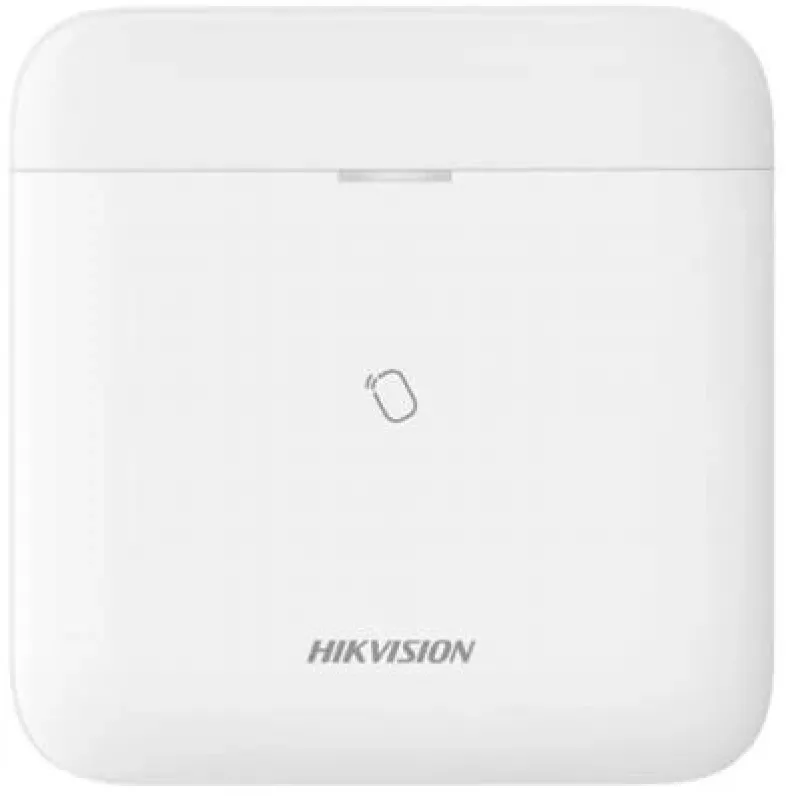

Hikvision AX PRO hybridný bezdrôtový ovládací panel, 96 bezdrôtových zón, 8 drôtových zón, Wi-Fi, 868 MHz, 4G, biela (DS-PWA96-M-WE)

The Hikvision AX PRO DS-PWA96-M-WE is a hybrid wireless control panel designed for professional security systems. It supports up to 96 wireless zones (Tri-X/Cam-X) and 8 onboard wired zones (expandable to 48), offering flexible connectivity for residential and commercial applications. With built-in Wi-Fi (2.4 GHz), Ethernet (10/100 Mbps), and 4G cellular communication, it ensures reliable remote monitoring and control. The panel features a sleek white design and is EN Grade 2 certified.

Advantages

This control panel combines wired and wireless capabilities, providing scalability and ease of installation. Its 4G cellular backup ensures continuous operation even if the network fails. The built-in Li-ion battery offers up to 12 hours of standby power, and the intuitive interface supports up to 48 users and 16 partitions.

Suitable for

• Residential security systems
• Small to medium-sized businesses
• Remote monitoring applications
• Hybrid alarm installations

Key specifications

• System Type: Hybrid Wireless Control Panel
• Wireless Zones: 96 (Tri-X/Cam-X)
• Wired Zones: 8 (onboard, expandable to 48)
• Wireless Frequency: 868 MHz
• Wi-Fi: 2.4 GHz (802.11b/g/n)
• Ethernet: 10/100 Mbps Self-adaptive
• Cellular: 4G (LTE-FDD/TDD)
• Max Users: 48 (1 Installer, 1 Admin, 46 Users)
• Partitions: 16
• Keyfobs Supported: 48
• Wireless Sirens Supported: 6
• Wireless Repeaters Supported: 4
• PGM Outputs: 4 (2 onboard, 2 via expander)
• Relay Outputs: 2 (onboard)
• Event Log Capacity: 5000 events
• Backup Battery: Built-in Li-ion (4520 mAh, up to 12h standby)
• Power Supply: 100-240 VAC
• Operating Temperature: -10°C to 55°C
• Security Grade: EN Grade 2
• Colour: White

Recommendations

For optimal performance, pair with Hikvision AX PRO wireless detectors and sirens. Ensure proper placement of repeaters for extended range. The panel is ideal for users requiring a hybrid solution with cellular backup.
