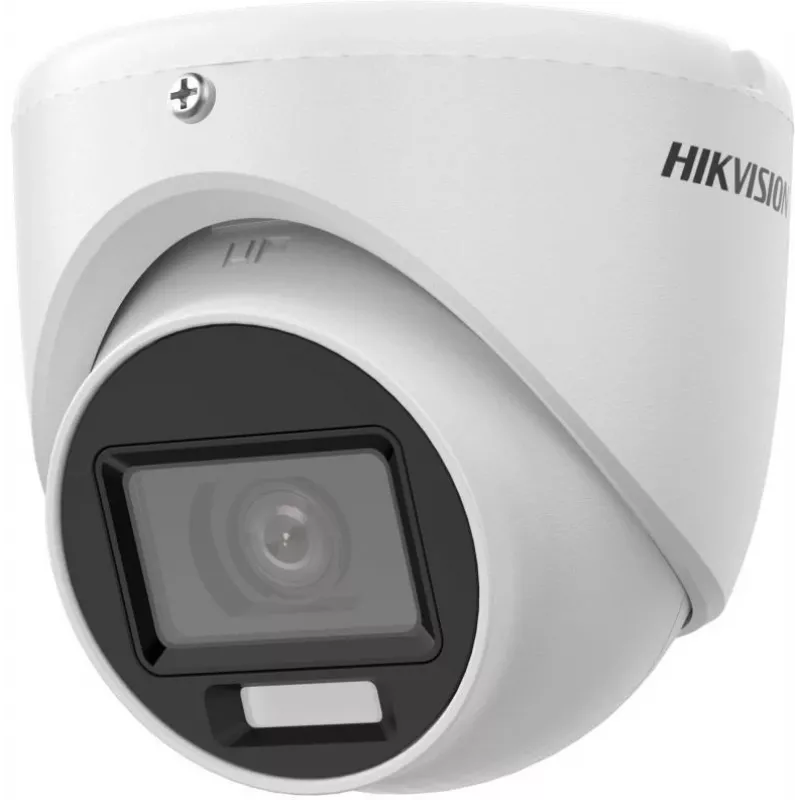

Hikvision DS-2CE76U0T-LMF(2,8mm) 8MP Turbo-HD turret kamera

The Hikvision DS-2CE76U0T-LMF(2.8mm) is a high-performance 8MP Turbo-HD turret camera designed for superior surveillance in various indoor and outdoor environments. Featuring ColorVu Lite technology, it delivers vivid color images even in low-light conditions, with a minimum illumination of 0.001 Lux and white light support up to 20 meters. The camera offers a 2.8mm fixed lens providing a wide 104° horizontal field of view, ensuring comprehensive coverage. With IP67 ingress protection, it is dust-tight and protected against powerful water jets, making it suitable for harsh weather conditions. The camera supports multiple video outputs (TVI/AHD/CVI/CVBS) and includes a built-in microphone for audio capture. Its compact turret design allows for flexible mounting on walls or ceilings.

Advantages

Exceptional 8MP resolution for detailed imaging; ColorVu Lite for full-color night vision; robust IP67 weatherproof housing; versatile video output compatibility; built-in audio for enhanced situational awareness; low power consumption at max 2.9W.

Suitable for

• Residential security monitoring
• Retail stores and small businesses
• Office and warehouse surveillance
• Outdoor perimeter protection

Key specifications

• Image Sensor: 8 MP CMOS
• Max Resolution: 3840 × 2160
• Lens: 2.8mm fixed focal
• Field of View: Horizontal 104°, Vertical 56°, Diagonal 124°
• Minimum Illumination: 0.001 Lux (F1.0, AGC ON), 0 Lux with white light
• White Light Range: Up to 20 m
• Video Output: TVI/AHD/CVI/CVBS switchable
• Audio: Built-in microphone, audio over coax
• Day/Night: Color (ColorVu Lite)
• Digital WDR: Yes
• Ingress Protection: IP67
• Power Supply: 12 VDC
• Power Consumption: Max. 2.9 W
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Material: Metal front cover, plastic main body
• Camera Type: Mini turret
• Video Compression: H.265+/H.265/H.264+/H.264 (for DVR recording)

Recommendations

For optimal performance, pair this camera with a compatible Hikvision DVR supporting 8MP recording. Ensure proper mounting at a height of 2-3 meters for best coverage. Use a regulated 12VDC power supply.
