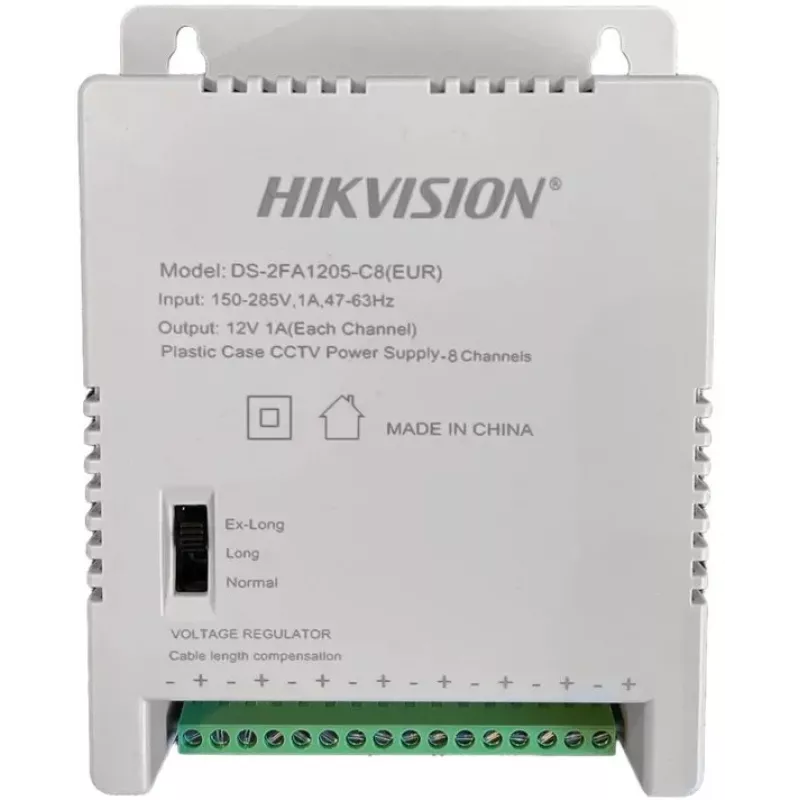

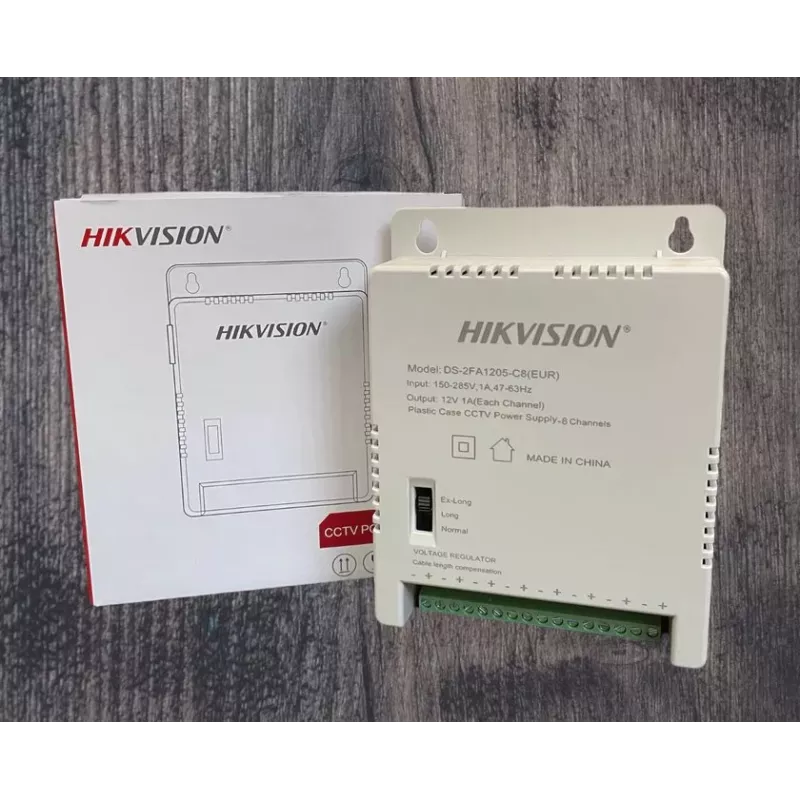

Hikvision DS-2FA1205-C8 multi-kanálový SMPS 12V 5A 60W napájací zdroj

The Hikvision DS-2FA1205-C8 is a high-performance multi-channel switching power supply designed for security systems. It provides stable 12V DC output across 8 channels, with a total current of 5A and maximum power of 60W. Ideal for powering multiple cameras or access control devices.

Advantages

Reliable and efficient power distribution with overcurrent, short-circuit, and overvoltage protection. LED indicators for each channel simplify monitoring. Wall-mountable metal enclosure ensures durability.

Suitable for

• Security cameras (CCTV, IP cameras)
• Access control systems
• Multi-device installations requiring centralized power

Key specifications

• Input Voltage: 150-285 VAC
• Input Frequency: 50/60 Hz
• Output Voltage: 12 VDC
• Total Output Current: 5 A
• Number of Channels: 8
• Max Power Output: 60 W
• Output Protection: Overcurrent, Short-circuit, Overvoltage
• Efficiency: >80%
• Ripple & Noise: <150 mVp-p
• LED Indicator: Yes, for each output channel
• Operating Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Operating Humidity: 0% to 90% (non-condensing)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Enclosure Material: Metal
• Mounting Type: Wall-mounted
• MTBF: >100,000 hours

Recommendations

Ensure total load does not exceed 60W. Suitable for indoor use only. Professional installation recommended.
