Hikvision DS-3E1508-EI(V2) 8-portový Gigabit Smart Managed PoE+ switch

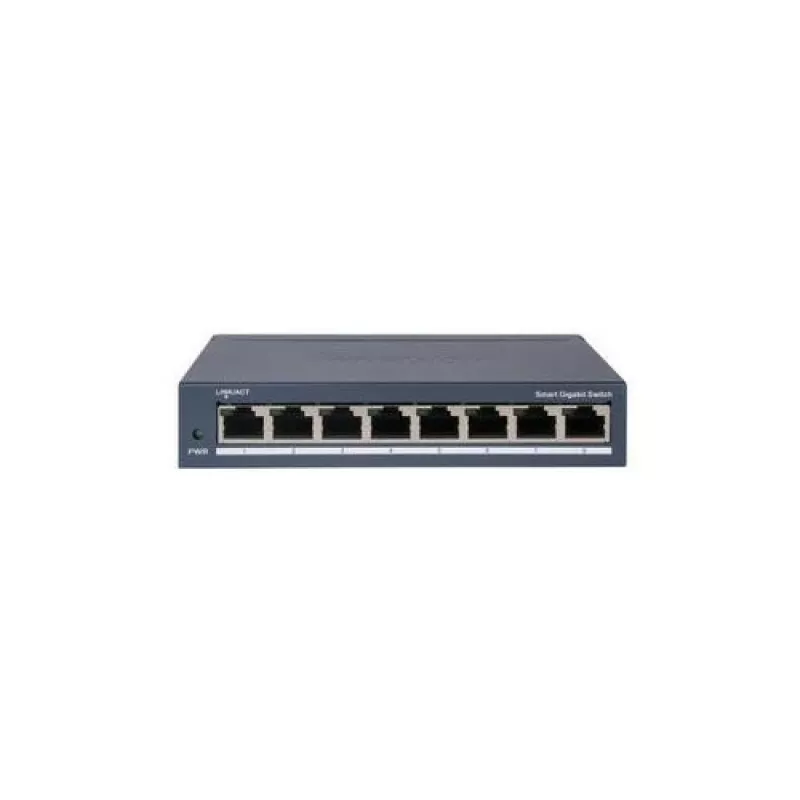

The Hikvision DS-3E1508-EI(V2) is a high-performance 8-port Gigabit smart managed PoE+ switch designed for small to medium-sized business networks. It provides reliable power and data transmission for IP cameras, wireless access points, and other PoE devices, with a total PoE budget of 110 W and up to 30 W per port.

Advantages

This switch offers advanced management features including web GUI, CLI, and SNMP, allowing for easy configuration and monitoring. With support for VLAN, QoS, and jumbo frames, it ensures efficient network traffic handling. The compact desktop and wall-mountable design makes it ideal for space-constrained environments.

Suitable for

• Small to medium business networks
• IP surveillance systems
• Wireless LAN deployments
• Edge network connectivity

Key specifications

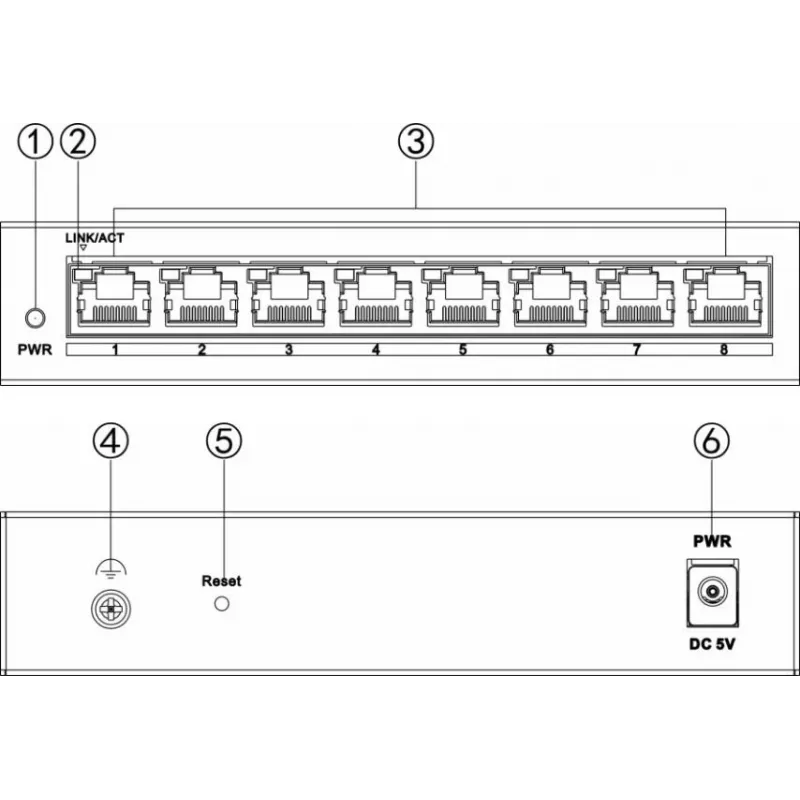

• 8 x 10/100/1000 Mbps RJ45 ports with PoE+
• PoE standard: IEEE 802.3af/at, budget 110 W, max 30 W per port
• Switching capacity: 20 Gbps
• Packet forwarding rate: 14.88 Mpps
• MAC address table: 4K entries
• Jumbo frame support: 9 KB
• Management: Web GUI, CLI, SNMP
• VLAN: Port-based, IEEE 802.1Q
• QoS: Port-based, IEEE 802.1p, DSCP
• Power supply: 100-240 VAC, 50/60 Hz
• Max power consumption: 120 W (with PoE)
• Operating temperature: -10°C to 55°C

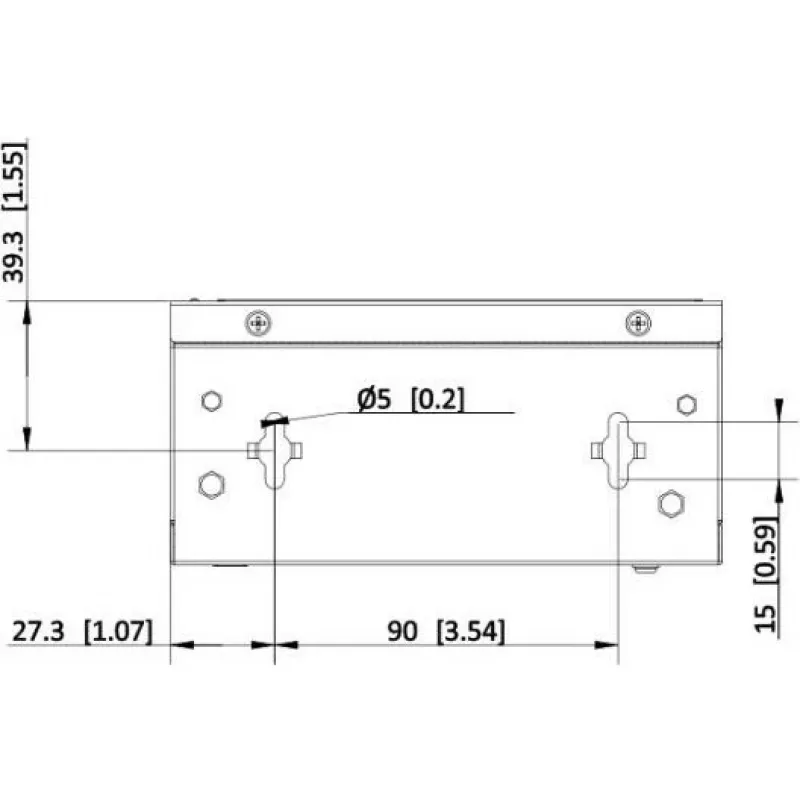

• Mounting: Desktop, wall-mount

Recommendations

For optimal performance, use this switch with Hikvision IP cameras and NVRs. Ensure proper ventilation and avoid overloading the PoE budget.
