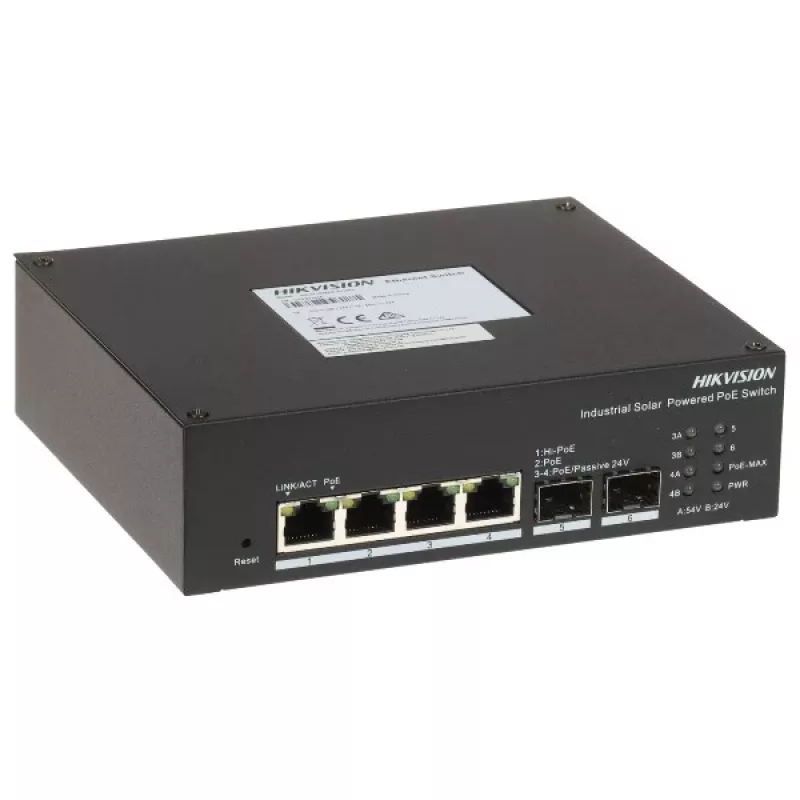

Hikvision DS-3T1506HP-EI-UPS LinkVu Smart Managed Industrial Solar PoE Switch, 6-portový, 4x PoE++ 90W, 110W Budget, integrovaná USV

The Hikvision DS-3T1506HP-EI-UPS LinkVu is a smart managed industrial solar PoE switch designed for reliable outdoor and harsh environment deployments. With 6 Gigabit Ethernet ports (4 PoE++ and 2 uplink), it delivers up to 90W per port and a total PoE budget of 110W, making it ideal for powering high-demand devices such as PTZ cameras, access points, and solar-powered systems. The built-in UPS with lithium battery (5000 mAh) ensures uninterrupted operation during power outages.

Advantages

Integrated UPS provides seamless power backup, eliminating the need for external UPS units. Long-distance PoE transmission up to 300 meters at 10 Mbps extends network reach. Industrial-grade design with wide operating temperature range (-10°C to 55°C) and 6 KV surge protection ensures reliability in challenging conditions. PoE watchdog automatically resets non-responsive PoE devices, reducing maintenance visits.

Suitable for

• Solar-powered surveillance systems
• Remote outdoor installations
• Industrial automation and control
• Smart city infrastructure
• Security camera networks requiring high PoE power

Key specifications

• 6 Gigabit Ethernet ports (4 PoE++ 10/100/1000 Mbps + 2 uplink 10/100/1000 Mbps)
• PoE standard: IEEE 802.3af/at/bt (Hi-PoE), up to 90W per port
• Total PoE budget: 110W
• Switching capacity: 12 Gbps
• Packet forwarding rate: 8.928 Mpps
• MAC address table: 8K
• Jumbo frame support: 9 KB
• Long-distance PoE: up to 300 m at 10 Mbps
• Built-in UPS: lithium battery, 5000 mAh
• Management: unmanaged
• Power supply: 48 VDC, 2.5 A (adapter included)
• Max power consumption: 120 W (with PoE load)
• Operating temperature: -10°C to 55°C
• Surge protection: 6 KV

Recommendations

For optimal performance, use with Hikvision solar panels and cameras. Ensure proper ventilation and avoid exposure to extreme temperatures beyond the specified range. The built-in UPS provides backup for short power interruptions; for extended outages, consider additional battery capacity.
