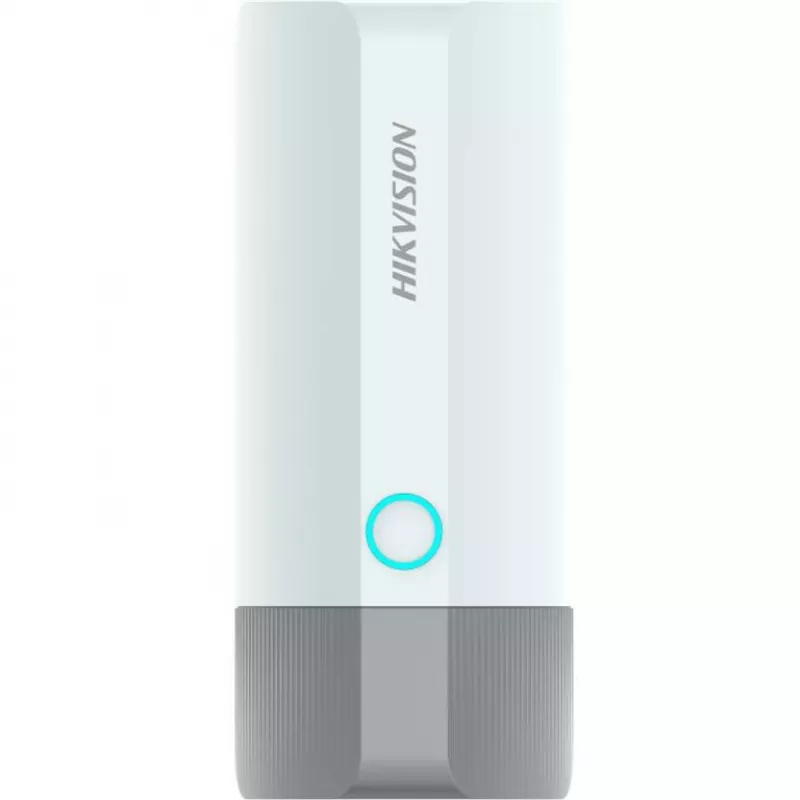

Hikvision DS-3WAP623E-SI Wi-Fi 6 access point AX1800 Dual-Band

The Hikvision DS-3WAP623E-SI is a high-performance Wi-Fi 6 (802.11ax) access point designed for seamless wireless connectivity in enterprise and commercial environments. With dual-band support and AX1800 speeds, it delivers fast, reliable, and secure network access for up to 256 concurrent users.

Advantages

Wi-Fi 6 technology ensures higher throughput, lower latency, and improved efficiency in dense client environments. The 2x2 MIMO design with internal omnidirectional antennas provides excellent coverage. Power over Ethernet (PoE) support simplifies installation, and advanced security features like WPA3 protect your network.

Suitable for

• Office buildings and conference rooms
• Hotels, hospitals, and educational institutions
• Retail stores and public venues
• Any environment requiring high-density Wi-Fi

Key specifications

• Wireless Standard: Wi-Fi 6 (802.11ax)
• Frequency Bands: 2.4 GHz & 5 GHz (Dual-Band)
• Max Speed: 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) = 1775 Mbps (AX1800)
• MIMO: 2x2
• Antenna: Internal omnidirectional, 3 dBi (2.4 GHz) / 4 dBi (5 GHz)
• Ethernet: 1x Gigabit RJ45 with PoE (802.3af/at)
• Power: 12 VDC / 1 A or PoE, max consumption <12.95 W
• Security: WPA3, WPA2, WPA, WEP, 802.1X
• Management: Web UI, cloud, centralized controller
• Mounting: Ceiling/wall
• Operating Temperature: -10°C to 45°C
• Humidity: 5% to 95% non-condensing
• Mesh Support: Yes

Recommendations

Ideal for upgrading existing networks to Wi-Fi 6, the DS-3WAP623E-SI offers a cost-effective solution with robust performance and easy deployment via PoE. Pair with a PoE switch for a clean installation.
