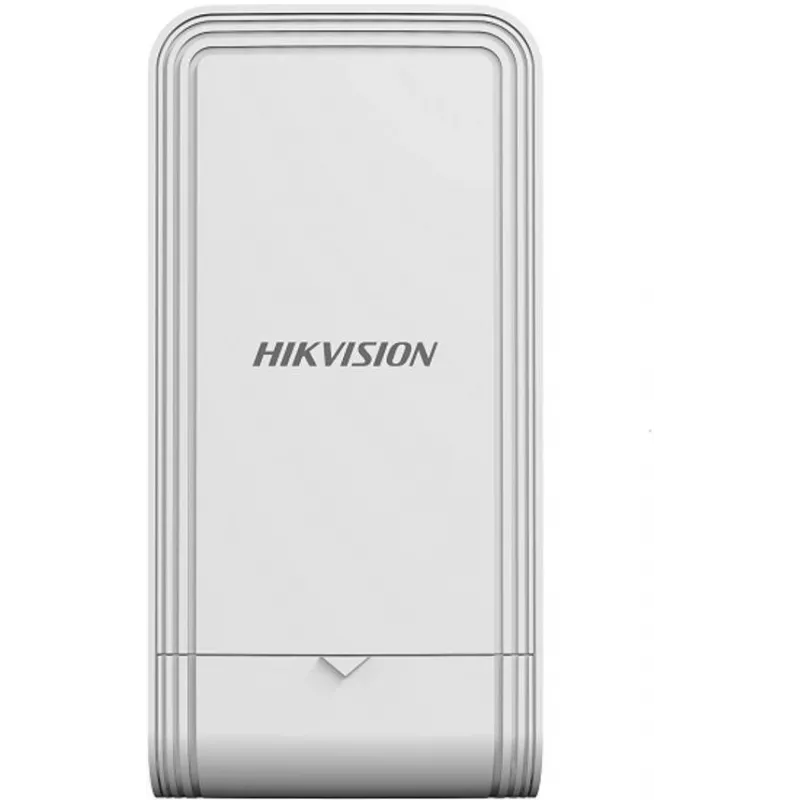

Hikvision DS-3WF500T-EI-2N/P Bridge

The Hikvision DS-3WF500T-EI-2N/P is a wireless bridge designed for elevator applications, operating on the 2.4 GHz frequency band with a transmission distance of up to 500 m. It supports IEEE 802.11b/g/n (2 × 2 MIMO 300 Mb/s) and features a built-in 7 dBi antenna. The bridge offers visualized topology management, standard PoE input and output, and plug-and-play functionality.

Key features

• 2.4 GHz wireless bridge for elevators
• Up to 500 m wireless transmission distance
• 300 Mb/s data rate with 802.11n
• Built-in 7 dBi antenna, 2 × 2 MIMO
• Visualized topology management
• Standard PoE input and output
• Plug and Play

Specifications

• Model: DS-3WF500T-EI-2N/P

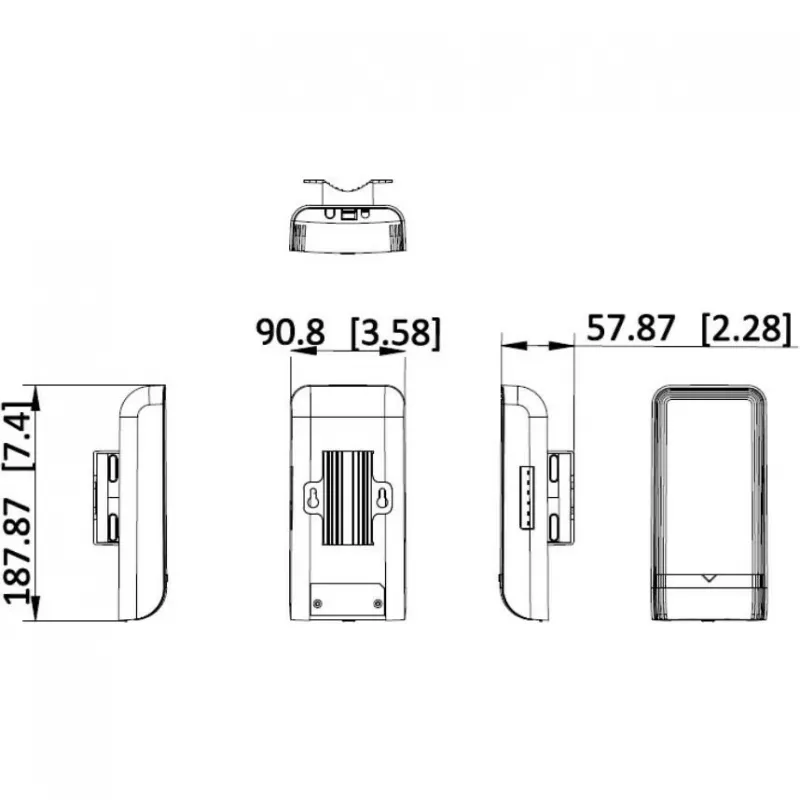

• Product dimensions (W × H × D): 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
• Net weight: 0.26 kg (0.57 lb) per device
• Operating temperature: -30°C to 60°C (-22°F to 140°F)
• Operating humidity: 5% to 95% (non-condensing)
• Storage temperature: -40°C to 80°C (-40°F to 176°F)
• Storage humidity: 5% to 95% (non-condensing)
• Mounting type: Pole mount
• Protection degree: IP55
• Power consumption: 2.43 W typical (1-ch 2MP IPC), max. 3.4 W
• Max. air interface transmission rate: ≤ 300 Mb/s
• Wireless standard: IEEE 802.11b/g/n (2 × 2 MIMO 300 Mb/s)
• Operating frequency band: 2400 MHz ~ 2483.5 MHz
• Antenna gain: 7 dBi
• Antenna angle: (H) 3 dB beamwidth 60°, (V) 3 dB beamwidth 50°
• Transmission power: 22 dBm @11n MCS0 (Note: Transmission power may vary according to local regulations)
• Receive sensitivity: -87±2 dBm @HT40 MCS0
• Throughput: PTP: 80 Mb/s/0.2 km (HT40), 40 Mb/s/0.5 km (HT40)
• PoE power: Port PoEAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3af PoE OUT
• PoE power budget: 10 W
• PoE distance: 100 m
• Network interface: 2 × RJ45 10/100 Mb/s ports
• LED indicators: Power indicator, LAN indicator, signal strength indicator
• Reset: Hardware reset button
• Power supply: 48V PoE
• Application function: IFM, IPMS
• Channel width: 10/20/40 MHz
• Channel selection: Auto/manual
• Security mode: WPA2-PSK
• Security mechanism: Hidden wireless network name
• Network protocol: NTP (network time synchronization), SADP (automatic IP address search), HTTPS/HTTP (web management), SSH (debugging)
• Management method: HCP, Web, HPP, iVMS-4200
• System log: Syslog, control center information
• Firmware upgrade: Web, iVMS-4200, HCP, HPP
• HPP: Supports one-click activation and remote management via Hik-Partner Pro. Supported functions: 1. Device reboot 2. Device restore 3. Topology information display 4. Displays connection status between AP and CPE, including signal strength, background noise, send and receive rate 5. Configuration of wireless network settings, including working mode, SSID, password, channel, channel bandwidth, transmission power 6. Bridge alignment 7. Spectrum scanning 8. PoE output management
• EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)
• Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Biochemical: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006)
• Radio: EN 301 893, EN 300 440, EN 623
