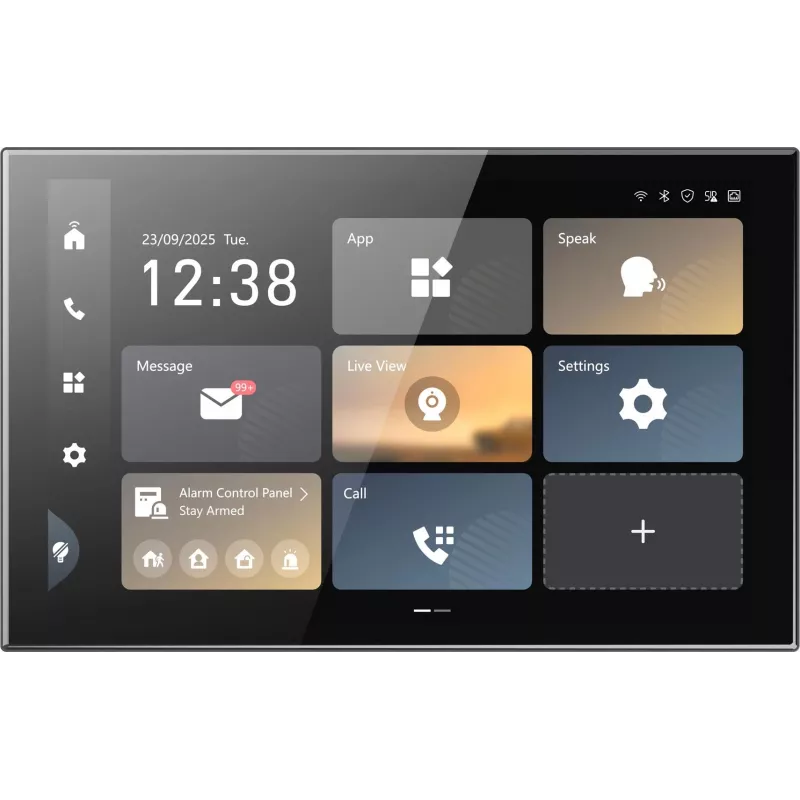

Hikvision DS-KH9570-WTE1/S 7-palcová Android vnútorná stanica

Experience seamless smart home control with the Hikvision DS-KH9570-WTE1/S, featuring a vivid 7-inch IPS capacitive touchscreen and the power of Android 11 for fluid, app-based intercom management.

Overview

The DS-KH9570-WTE1/S is a wall-mounted indoor station from Hikvision's 9 series, engineered for modern residential and commercial intercom systems. Its 7-inch IPS display delivers sharp 1024 × 600 resolution, while 2 GB RAM and 16 GB eMMC storage ensure responsive performance. Dual power options—PoE (802.3af) or 12 VDC—offer flexible installation, and built-in Wi-Fi plus Ethernet provide reliable network connectivity. The station includes a high-quality omnidirectional microphone and loudspeaker with noise suppression and echo cancellation for crystal-clear audio. Integration-ready interfaces such as two alarm inputs, one relay output, and RS-485 enable seamless smart home automation.

What stands out

• 7-inch IPS capacitive touchscreen for intuitive control
• Android 11 OS with 2 GB RAM and 16 GB eMMC storage
• Dual power options: PoE (802.3af) or 12 VDC
• Built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation
• Two alarm inputs, one relay output, and RS-485 for smart home integration
• Wi-Fi and wired Ethernet connectivity

Technical details

• Display: 7-inch IPS capacitive touchscreen, 1024 × 600
• Operating system: Android 11
• RAM: 2 GB
• Storage: 16 GB eMMC flash
• Network: 1× RJ45 10/100 Mbps, Wi-Fi 802.11b/g/n
• Power: 12 VDC or PoE (IEEE 802.3af), ≤6 W
• Audio: Built-in omnidirectional microphone, built-in loudspeaker, noise suppression, echo cancellation
• Interfaces: 2 alarm inputs, 1 relay output, 1 RS-485
• Protocols: TCP/IP, SIP, RTSP
• Material: PC+ABS
• Operating temperature: -10°C to 50°C
• Mounting: Wall mount

Our verdict

The DS-KH9570-WTE1/S combines robust hardware with Android flexibility, making it an excellent choice for those seeking a feature-rich indoor station with advanced integration capabilities.
