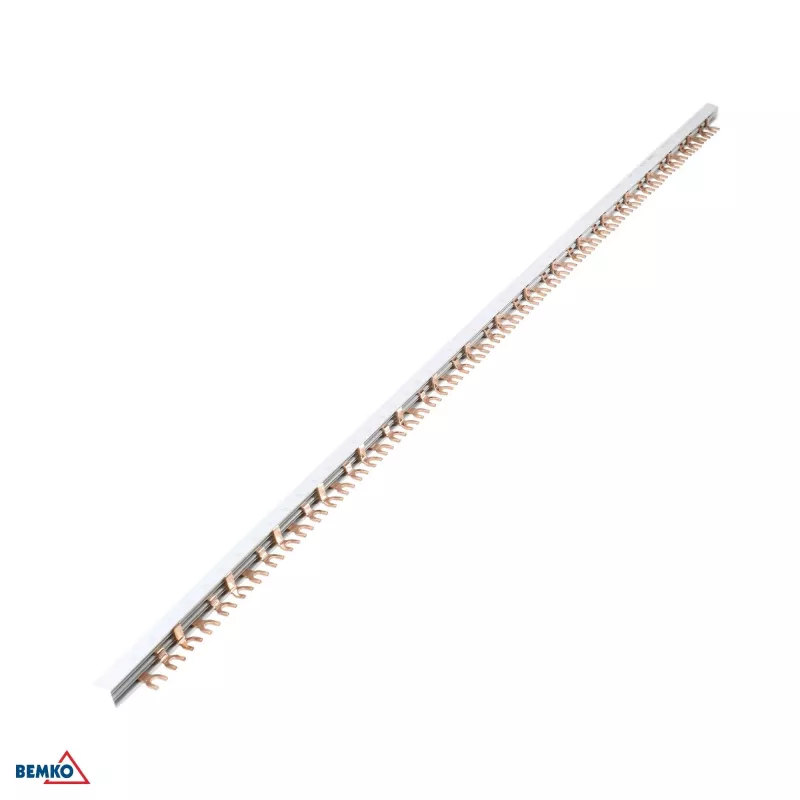

SCHELINGER A19-BBM-3F 3-fázová U-typ zbernica 10mm² 54 modulov sivá

The SCHELINGER A19-BBM-3F is a high-quality 3-phase U-type busbar designed for efficient power distribution in modular electrical installations. With a conductor cross-section of 10 mm² and support for up to 54 modules, this busbar ensures reliable and organized connections for a wide range of modular devices.

Advantages

Made from electrolytic copper with self-extinguishing thermoplastic insulation, this busbar offers excellent conductivity and safety. Its fork-type connection ensures secure and easy installation on DIN rails, while the 18 mm pitch provides compatibility with standard modular devices. Rated for 63 A and 230/400 V AC, it meets IEC/EN 60947-7-1 standards.

Suitable for

• Power distribution in residential, commercial, and industrial electrical panels
• Connecting modular circuit breakers, RCDs, and other DIN-rail mounted devices
• 3-phase systems requiring a compact and reliable busbar solution

Key specifications

• Busbar Type: U-Type (Fork Type)
• Number of Phases: 3-Phase
• Conductor Cross-section: 10 mm²
• Number of Modules: 54
• Rated Current (In): 63 A
• Rated Voltage (Ue): 230/400 V AC
• Conductor Material: Electrolytic Copper
• Insulation Material: Self-extinguishing Thermoplastic
• Mounting Type: DIN Rail
• Pitch: 18 mm
• Connection Type: Fork
• Short-circuit Current Rating (Icw): 10 kA
• Operating Temperature Range: -25 to +70 °C
• Degree of Protection: IP20 (terminals)
• Colour: Grey

Recommendations

Ensure compatibility with your existing DIN-rail devices and verify the total current load does not exceed 63 A. For optimal performance, use with appropriately rated circuit breakers and follow local electrical codes.
