Hikvision DS-KIS213(B) 4-vodičová súprava video domáceho telefónu

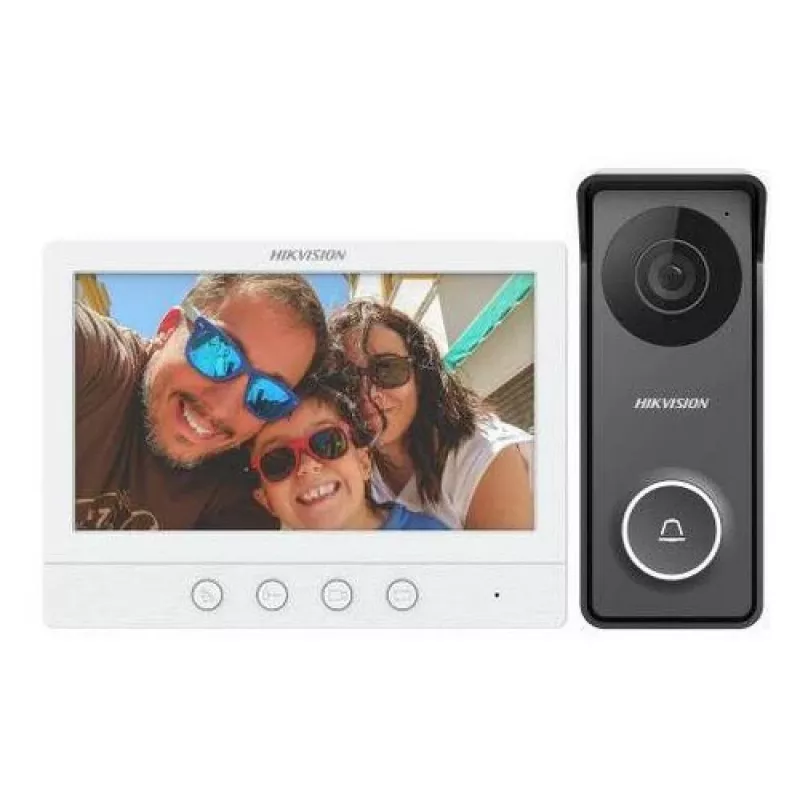

The Hikvision DS-KIS213(B) is a 4-wire video intercom kit featuring a door station and an indoor monitor. The door station includes a camera with IR illumination up to 3 m and a 7-inch color TFT display with 1024 x 600 resolution.

Key features

• 4-wire video intercom kit
• 7-inch color TFT display with 1024 x 600 resolution
• IR illumination up to 3 m
• Stream resolution: 1280 x 720@60fps
• Field of view: horizontal 117°, vertical 70°, diagonal 141°
• Built-in omnidirectional microphone (≤50 cm)
• Built-in speaker (30 cm/76 dB, 50 cm/72 dB)
• Supports up to 2 sub monitors
• Supports up to 2 door phones
• Supports 1 connected analog camera
• 4 physical buttons
• Surface mount installation
• IP65, IK08 protection rating
• Indoor installation

Specifications

• Brand: Hikvision
• MPN: DS-KIS213(B)
• Lock: 1 relay, max. 30 V 1 A
• Power input: 12V DC
• Power consumption: ≤4 W
• Operating temperature: -10°C to +55°C (14°F to 131°F)
• Operating humidity: 10% to 90%
• Monitor dimensions (W × D × H): 178 mm x 132 mm x 19 mm
• Door station dimensions: 145 mm × 55 mm × 24 mm
• Debug port: 1
• 4-wire interface: 4, 2 for indoor internal numbers, 2 for door phones
• DIP switch: 1 Bit
• BNC: 1
• 4-wire: 1 4-wire interface
