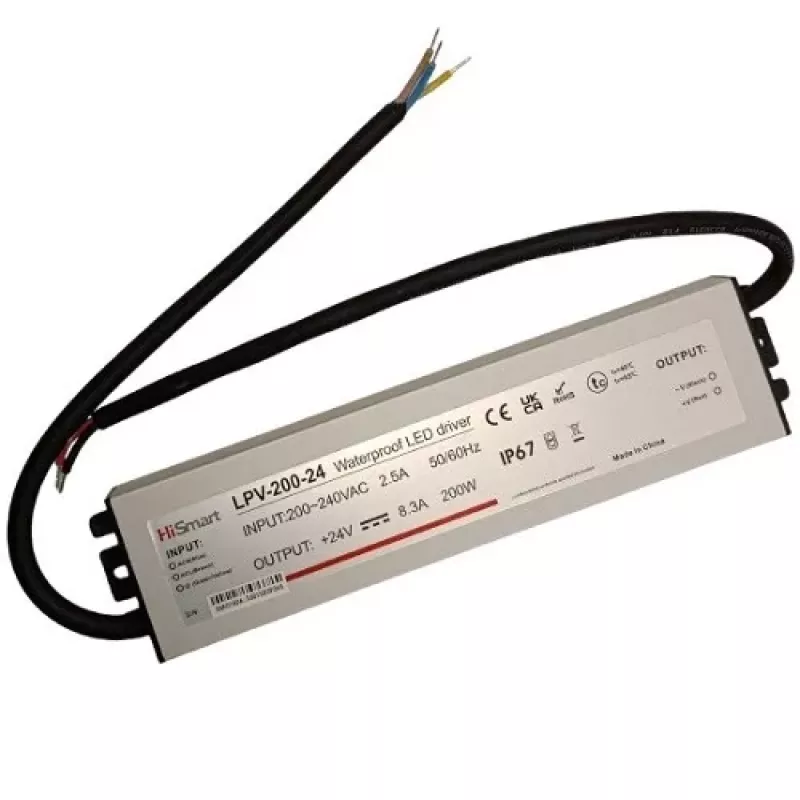

HISMART LPV-200-24 24V 8,3A 200W IP67 LED napájací zdroj s konštantným napätím

The HISMART LPV-200-24 is a high-performance constant voltage LED power supply delivering 24V DC at 8.3A with a total output power of 200W. Designed for demanding outdoor and industrial applications, this IP67-rated unit ensures reliable operation in harsh environments. Its aluminum alloy housing and natural convection cooling provide excellent thermal management without moving parts, guaranteeing long service life.

Advantages

With an efficiency exceeding 85%, the LPV-200-24 reduces energy waste and heat generation. Active Power Factor Correction (PFC) minimizes harmonic distortion and improves power quality. Comprehensive protection features including short circuit, overload, over voltage, and over temperature safeguard both the power supply and connected equipment. The wide input voltage range (100-240V AC) makes it suitable for global use.

Suitable for

• Outdoor LED lighting systems (signage, architectural, landscape)
• CCTV cameras and surveillance equipment
• Industrial control systems and automation
• Any 24V DC constant voltage application requiring IP67 protection

Key specifications

• Output Voltage: 24V DC
• Output Current: 8.3A
• Output Power: 200W
• Input Voltage: 100-240V AC, 50/60 Hz
• IP Rating: IP67
• Efficiency: >85%
• Protection: Short Circuit, Overload, Over Voltage, Over Temperature
• Cooling: Natural Convection
• Housing: Aluminum Alloy
• Operating Temperature: -20°C to +50°C
• Connection: Wire Leads
• Ripple & Noise: <150mVp-p
• Power Factor Correction: Active PFC
• Certifications: CE, RoHS Compliant

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. The unit is designed for constant voltage operation; do not use with constant current LED drivers. Always adhere to local electrical codes and regulations during installation.
