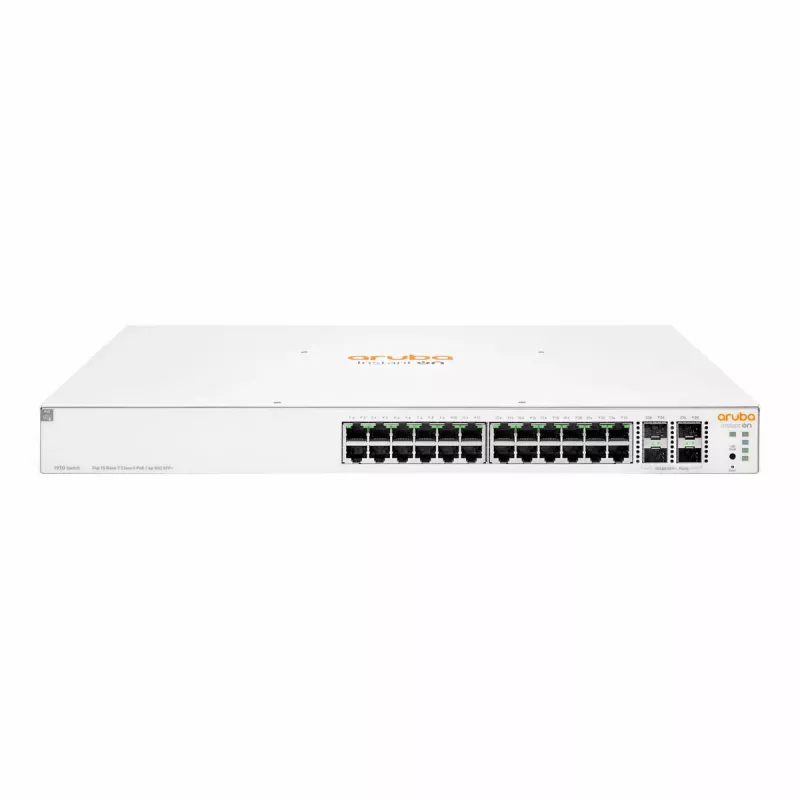

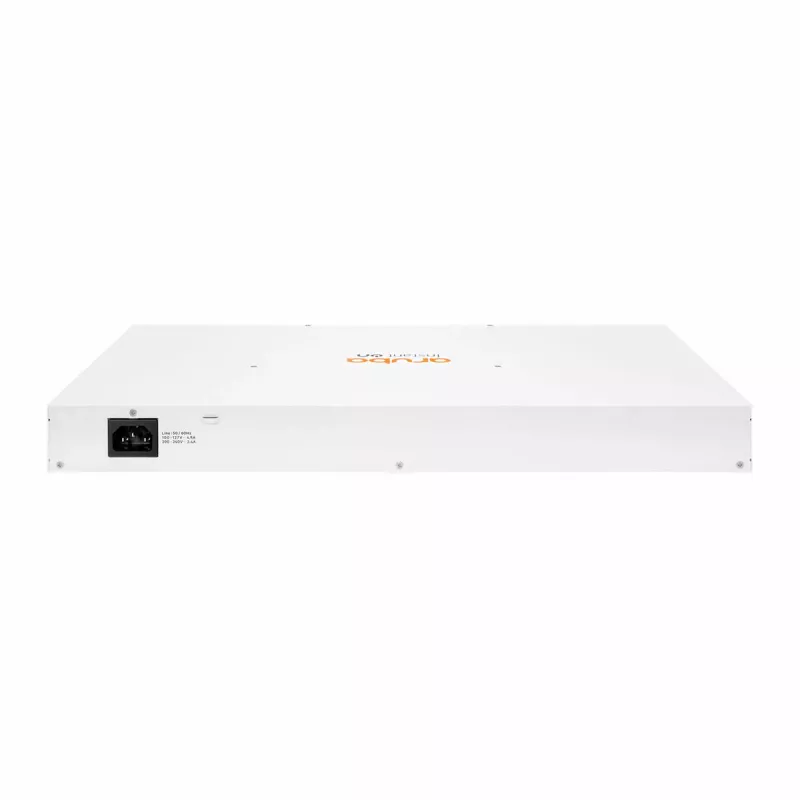

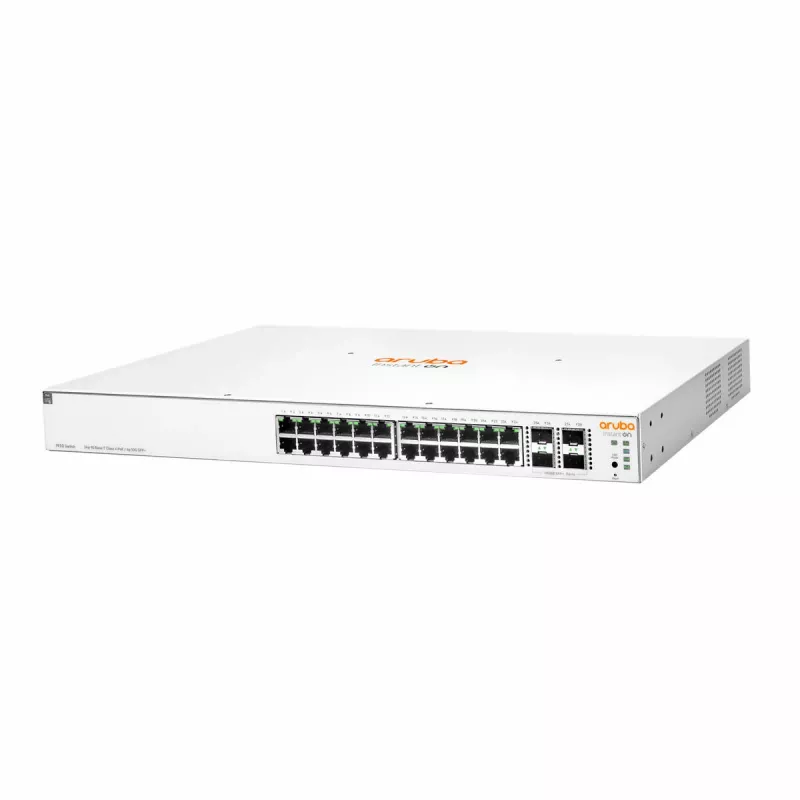

HPE Aruba Instant On 1930 24G 4SFP+ 370W Smart Managed switch JL684B

The HPE Aruba Instant On 1930 24G 4SFP+ 370W Switch (JL684B) is a smart managed Layer 2+ switch designed for small and medium businesses seeking reliable, high-performance networking. With 24 Gigabit Ethernet ports and 4 SFP+ uplinks, it delivers robust connectivity and PoE+ power for devices like IP cameras, phones, and access points.

Advantages

Cloud-managed via the Aruba Instant On app or web portal for simple setup and monitoring. PoE+ budget of 370W supports power-hungry devices. Layer 2+ features include VLANs, QoS, and link aggregation for optimized traffic flow. Fanless design ensures silent operation in office environments.

Suitable for

• Small to medium businesses requiring a cost-effective, managed network switch
• Deployments needing PoE+ for IP cameras, VoIP phones, or wireless access points
• Environments where quiet operation is essential (e.g., open offices, retail spaces)

Key specifications

• 24 x 10/100/1000Base-T RJ45 ports
• 4 x 1/10GbE SFP+ uplink ports
• PoE+ (IEEE 802.3af/at) with 370W power budget
• Switching capacity: 128 Gbps
• Forwarding rate: 95.23 Mpps
• MAC address table: 16,000 entries
• Jumbo frame support: 9 KB
• VLAN support: up to 256 VLANs
• QoS: 8 hardware queues per port
• Link aggregation: LACP
• Security: 802.1X, DHCP snooping, DoS protection
• Form factor: 1U rack-mountable
• Internal AC power supply (100-240V)

Recommendations

Ideal for businesses upgrading to a managed network with PoE capabilities. The Aruba Instant On platform simplifies management without compromising advanced features. Pair with Aruba Instant On access points for a seamless wireless solution.
