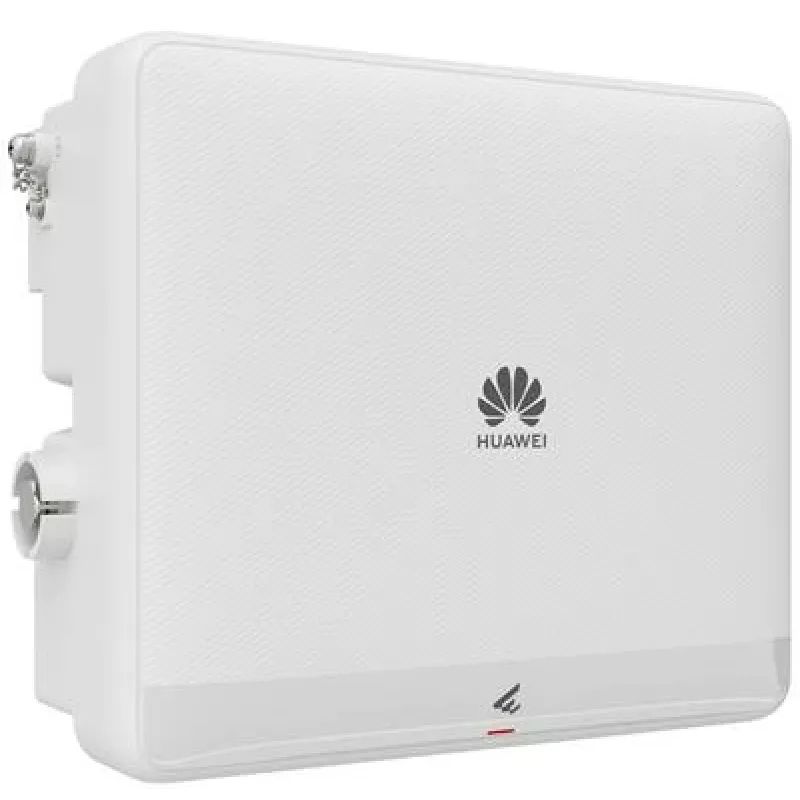

HUAWEI AP772E Wi-Fi 6 vonkajší access point, dual-band 2x2+4x4 MIMO, smerová anténa, USB, BLE, IP68 50088138

In a sprawling industrial yard or a remote mining site, where connectivity must survive dust, rain, and extreme temperatures, the HUAWEI AP772E delivers reliable high-speed Wi-Fi 6. This outdoor access point is built for harsh environments, featuring an IP68-rated enclosure and integrated directional antennas that focus signal exactly where it's needed.

Key specifications

• Wi-Fi 6 (802.11ax) dual-band concurrent operation: 2.4 GHz and 5 GHz
• MIMO configuration: 2x2 on 2.4 GHz, 4x4 on 5 GHz
• Maximum data rate: up to 5.37 Gbps (574 Mbps + 4.8 Gbps)
• Integrated directional antennas: 8 dBi gain (2.4 GHz), 10 dBi gain (5 GHz)

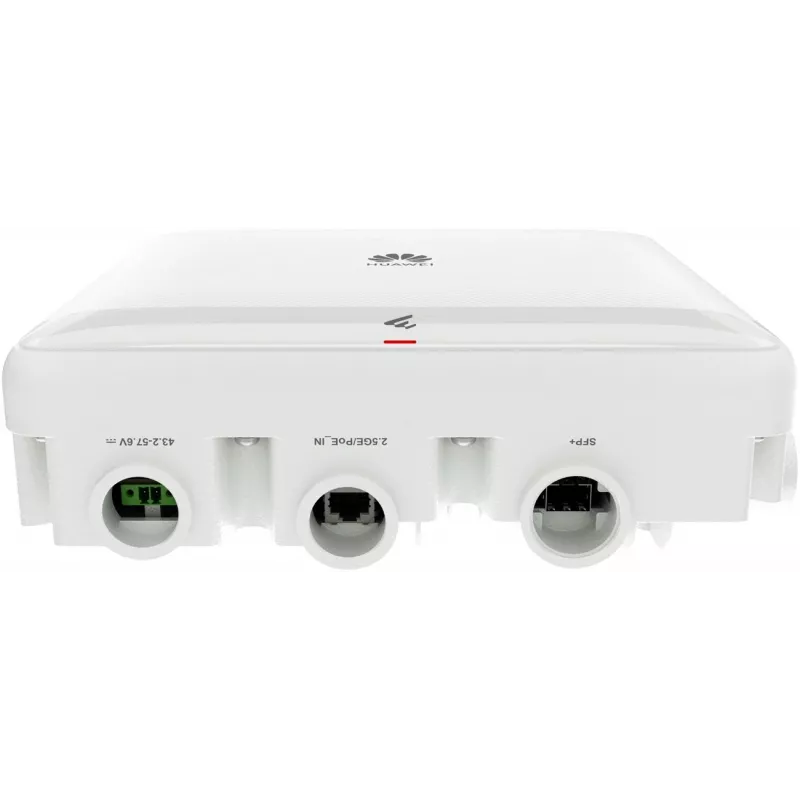

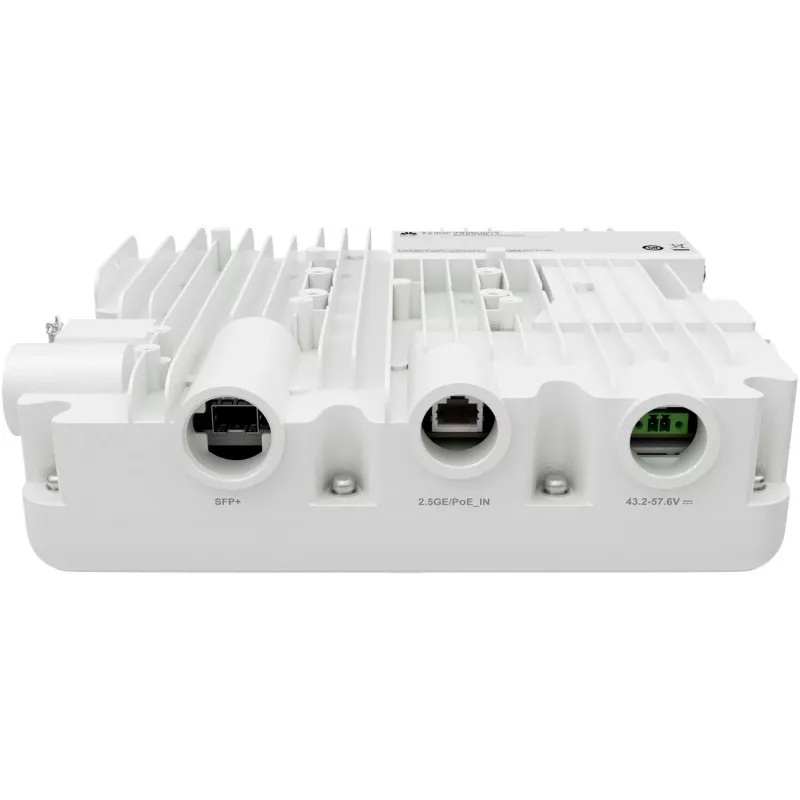

• Two 10GE SFP+ ports for high-speed uplink
• USB 2.0 port and Bluetooth Low Energy 5.0 for IoT integration
• Power over Ethernet: PoE++ (802.3bt) or DC 48V input
• Max power consumption: 40.5 W (excluding USB)
• Operating temperature: -40°C to +65°C
• Supports WPA3, WPA2-PSK, WPA2-Enterprise, and WEP security
• OFDMA and MU-MIMO for efficient high-density performance
• Supports up to 1024 concurrent users

Why choose it

The AP772E is engineered for outdoor and industrial deployments where reliability is non-negotiable. Its IP68 rating ensures complete protection against dust and water immersion, while the wide temperature range allows operation in extreme climates. The directional antennas provide focused coverage, reducing interference and extending range in open areas. With Wi-Fi 6 technologies like OFDMA and MU-MIMO, it efficiently handles many clients simultaneously, making it ideal for high-density outdoor venues.

Ideal use cases

• Outdoor enterprise campuses and industrial parks
• Mining, oil & gas, and utility sites
• Public venues: stadiums, plazas, and transportation hubs
• Smart city deployments with IoT sensors (via BLE and USB)
• Warehouses and logistics yards requiring rugged connectivity

Good to know

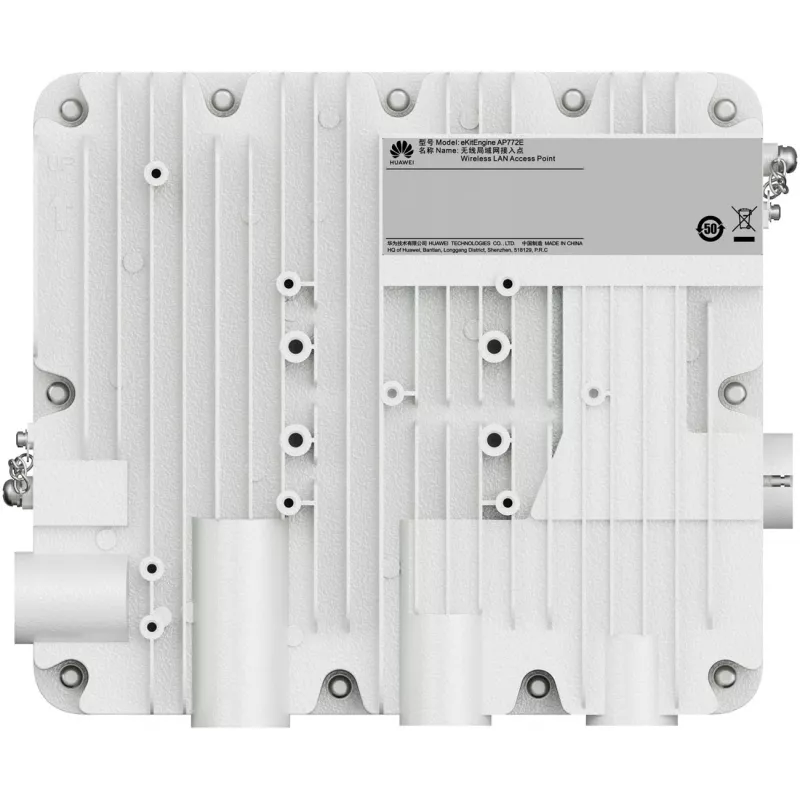

The AP772E includes both pole and wall mounting options for flexible installation. It supports advanced management protocols and can be centrally managed via Huawei's network management platform. The dual 10GE SFP+ ports provide future-proof uplink capacity, while the USB port allows connection of external devices for extended functionality. Note that the product is supplied without a power adapter; PoE++ injector or DC power supply must be ordered separately if needed.
